5.1 Data capable of Being Saved & Loaded
67
5
Chapter 5 Saving/Loading Data & Managing Files
The following kinds of data can be saved by and loaded into the instrument.
Data Not Loadable on the Instrument ______________________________
• Data saved on devices other than the 8847 Memory HiCorder.
• Image file (
)
• file
5.1 Data capable of Being Saved & Loaded

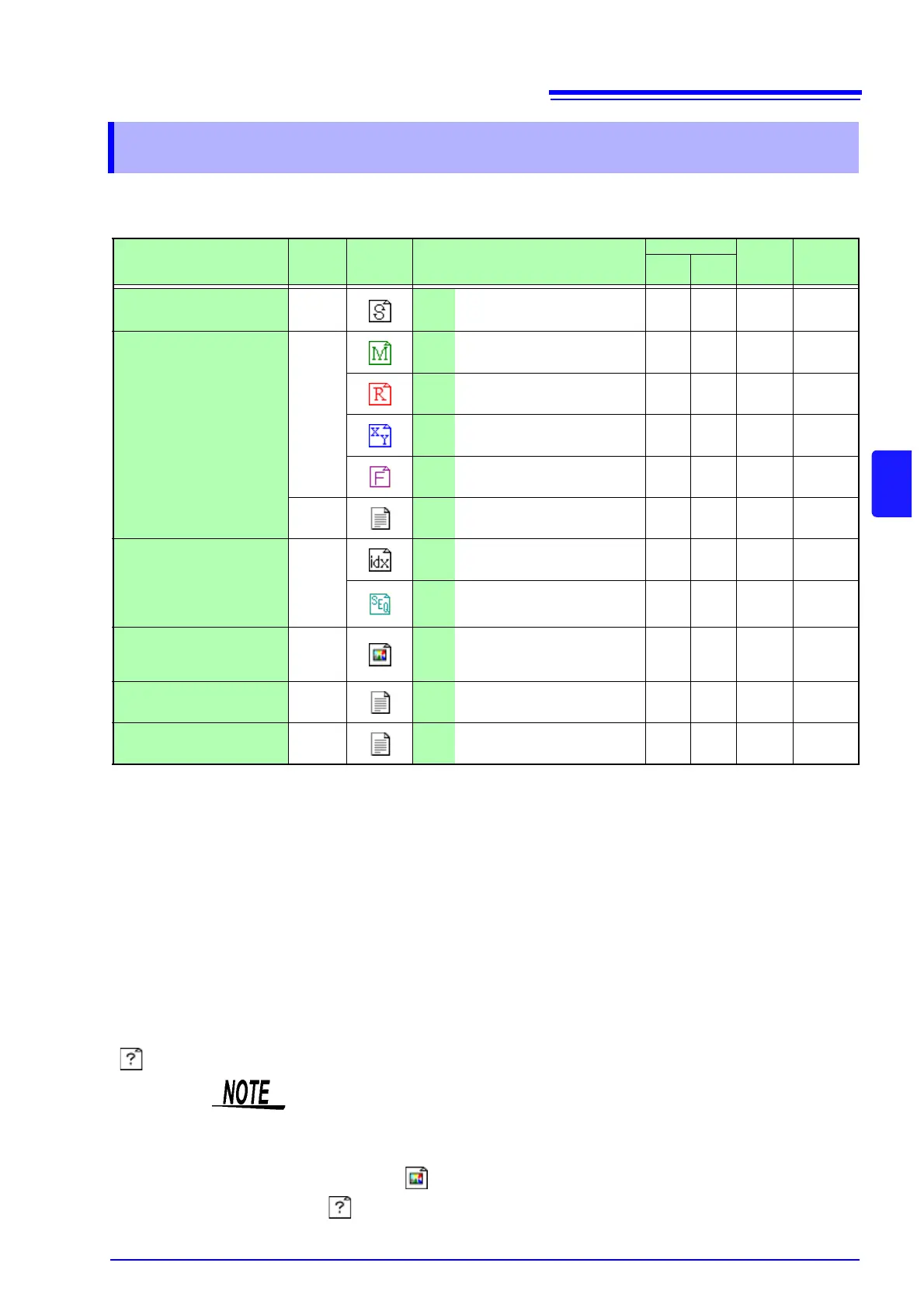

Data the Instrument Can Save & Load O: Possible/ -: Not Possible
File Type
File
Format
Indica-
tion
File Extension & Description
Save
Load
PC
Readable
Auto
Man-
ual
Settings Data
*1
Binary SET
Settings data
(Measurement Configuration)
-O O -
Waveform Data
*2
Whole of the waveform ac-
quired by the instrument or a
section of the waveform spec-
ified with the A and B
cursors.
Binary
MEM
Memory Function
waveform data
OO O -
*4
REC
Recorder Function
waveform data
OO O -
*4
XYC
X-Y Recorder Function
waveform data
-O O -
FFT FFT Function data O O O -
Text CSV Text Data O O - O
Waveform
Management Data
*3
(Divided Saving)
(Index
file)
IDX Index data for divided saving O O O -
SEQ
Index data for memory divi-
sion (automatically created
during batch saving)
OO O -
Captured Screen Image
(Display/Waveform
screens)
BMP
*5
BMP Image Data - O - O
Numerical Calculation
Results
Text CSV Text Data O O - O
Comment for Printing
Text TXT Text Data - - O
*6
O
*1: Multiple data can be saved in the instrument, and loaded selectively. Automatic loading at power-on is also possible.
(
 p.79)
*2: When the data is to be reloaded on the instrument, save it in binary format. Waveforms and some measurement set-
tings are saved.
When the data is to be loaded on a PC, save it in text format. (
 p.68)
When saving a section of a waveform, use the A and B cursors to set the section. (
 p.102), ( p.105)
*3: When you want to use memory division and load all blocks at the same time:
Save measurement data using [All blocks]. A directory is automatically created and waveform data for each block
and index data (SEQ) is created. When loading, load this index data.
When loading waveform data of divided saving: Import the IDX index data.
*4: Loading is possible with the Wave Viewer (Wv).
*5: This is a standard Windows graphics format. File in this format can be handled by many graphics programs.
*6: It is possible to print out the text file created by a PC together with loaded waveforms. Other processing operations
are not available.
: File type cannot be handled by 8847.
Files larger than 2 GB cannot be saved.
