9.1 Setting Workflow
152

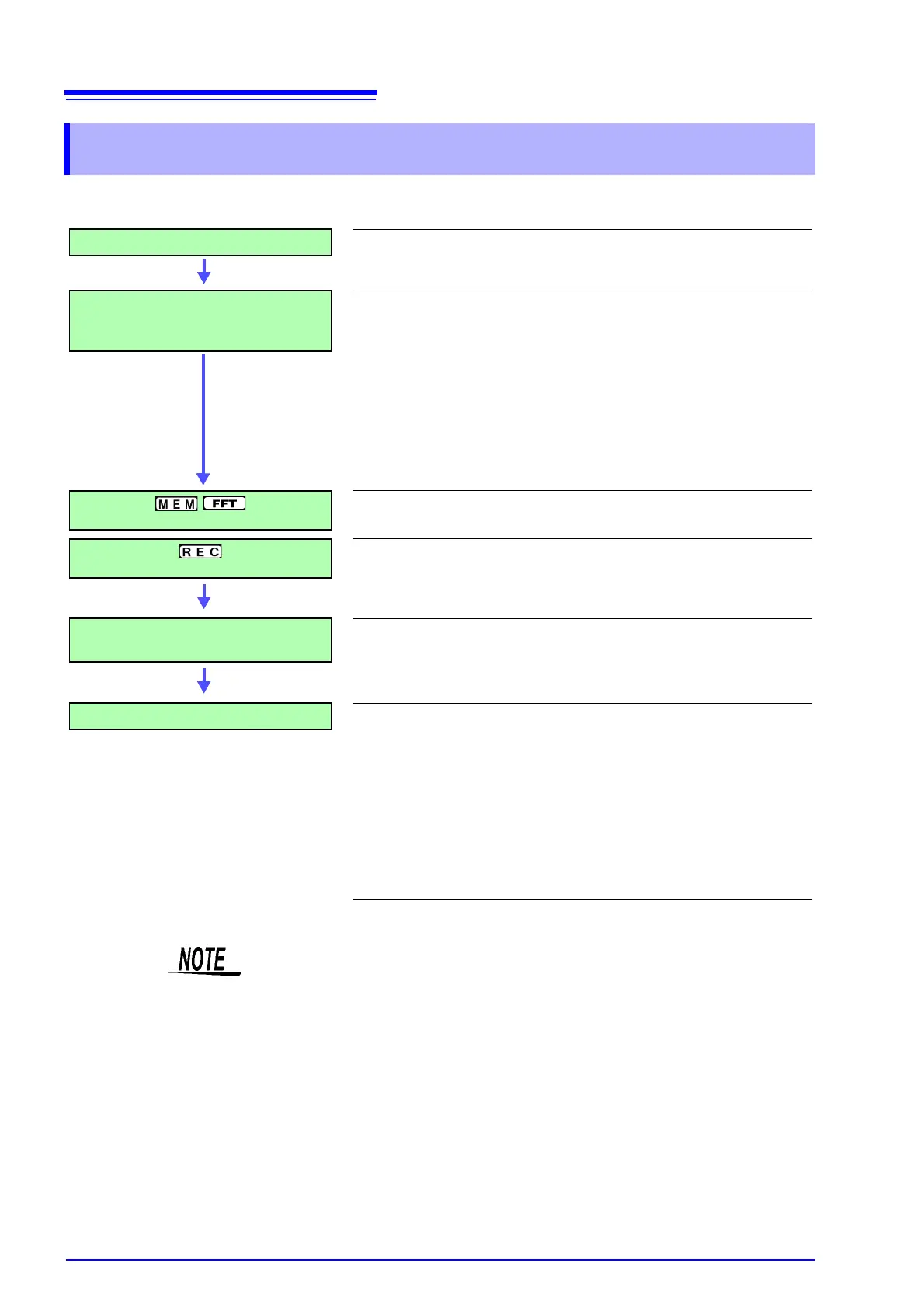

The procedure for making trigger settings is as follows.
9.1 Setting Workflow
Trigger Mode Settings
Set whether to continue to accept triggers after measuring. (
 p.153)
Trigger Type Settings
Make trigger source-related settings.
• Analog trigger
• Logic trigger
• Timer trigger
• External trigger
• Manual trigger
(
 p.154)
(
 p.160)
(
 p.162)
(
 p.165)
( p.165)
Pre-Trigger Settings
Set the amount to record before and after a trigger point.
(
 p.166)
Trigger Timing Settings
Set the start and stop timing for recording by triggers.
(
 p.169)
Setting AND/OR Between Trigger
Sources
Select AND/OR logical combination of analog, logic, external
and timer triggers to be applied.
(
 p.170)
Start Measurement
Press the START key to start measuring. (The key lights green.)
(However, operation differs according to the setting for START key behav-
ior (
 p.257).)
Data acquisition starts when trigger criteria are met.
To stop measurement: press the STOP key.
Press once: recording stops at the end of the specified recording length.
Press twice: recording stops immediately.
Available settings for the respective items depend on the function.
• Except for manual trigger, triggering is based on the AND/OR combination of
trigger sources. ( p.170)
• When triggering occurs, the TRIG OUT terminal for control of external devices
carries an output signal. ( p.292)
