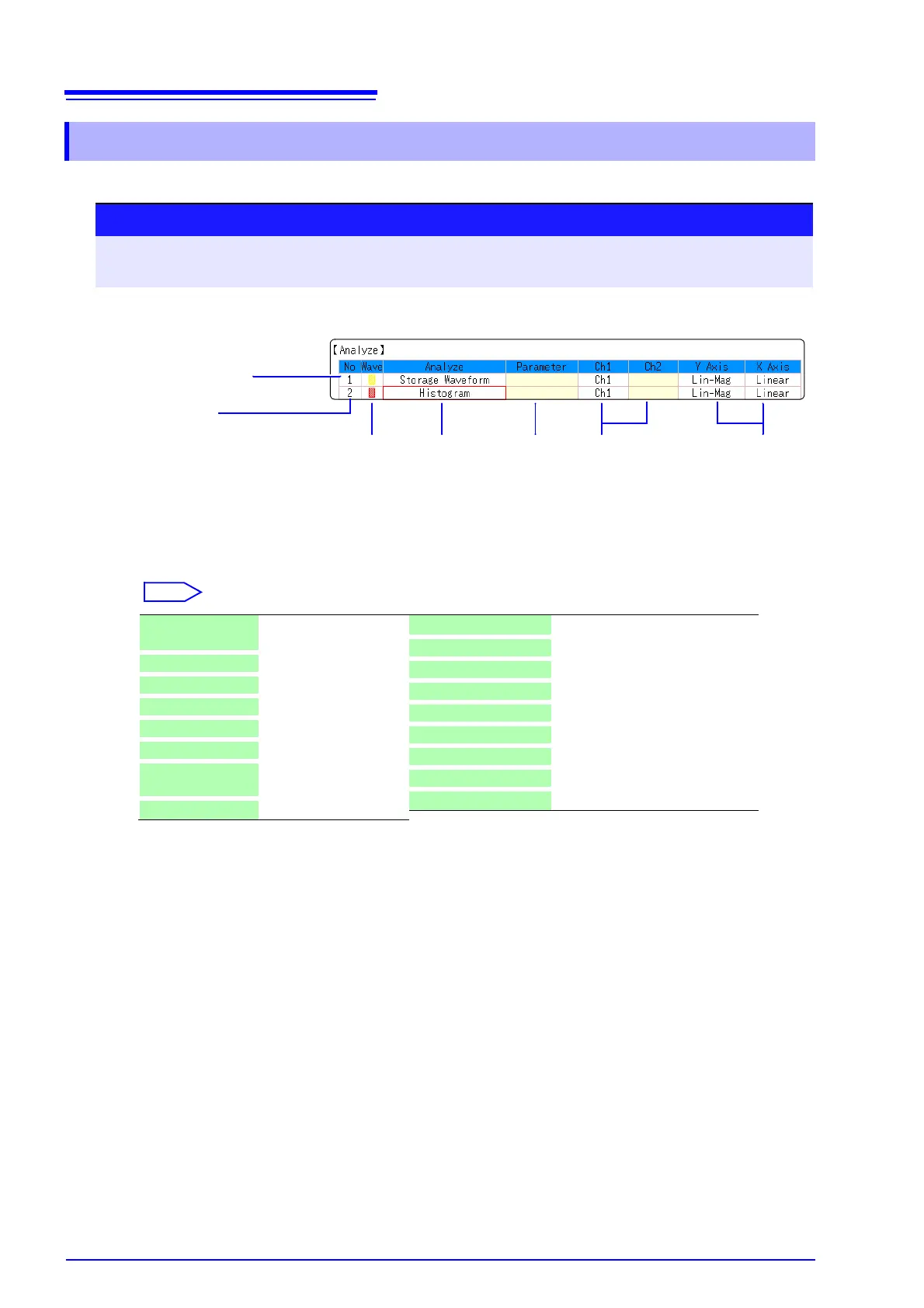

Select the type of FFT analysis, channel(s), waveform display color and x and y axes.
13.3.9 Analysis Mode Settings
1
Select the FFT analysis mode.
Move the cursor to the [Analyze] column of the Analysis No. to set.
Select
(When [List] is selected, a list of calculation types appears. To clear
the display, push the CH. SET key again.)
2
Select whether to display the waveform, and its color.
Move the cursor to the [Wave] column.
Select whether the waveform is to be displayed (On) or not, and its
color if displayed.
Analysis No.
Settings can be made from the
dialogs, or copied from another
Analysis No. (
 p.139)
Analysis
Type
1
2
Analysis Setting
Contents
Channel for
Analysis
34 5
Display
Color
X/Y Axes
Display
Parameter
Off No analysis.
(default setting)
Storage Waveform ( p.236)
Histgram ( p.236)
Linear Spectrum ( p.237)
RMS Spectrum ( p.238)
Powre Spectrum ( p.240)
Powre Spectrum
density*
( p.241)
LPC (density)* ( p.242)
Transfer Function ( p.243)
Cross Power Spectrum ( p.244)
Impulse Response ( p.245)
Coherance Function ( p.246)
Phase Spectrum ( p.247)
Auto-Correlation ( p.248)
Cross-correlation ( p.249)
1/1 Octave* ( p.249)
1/3 Octave* ( p.249)
*Not available with external sampling enabled.
See: "13.9.2 Analysis Mode Functions" (

p.254)
Procedure
To open the screen: Press the STATUS key → [Status] sheet
See: To set from the Waveform screen (
 p.225)
