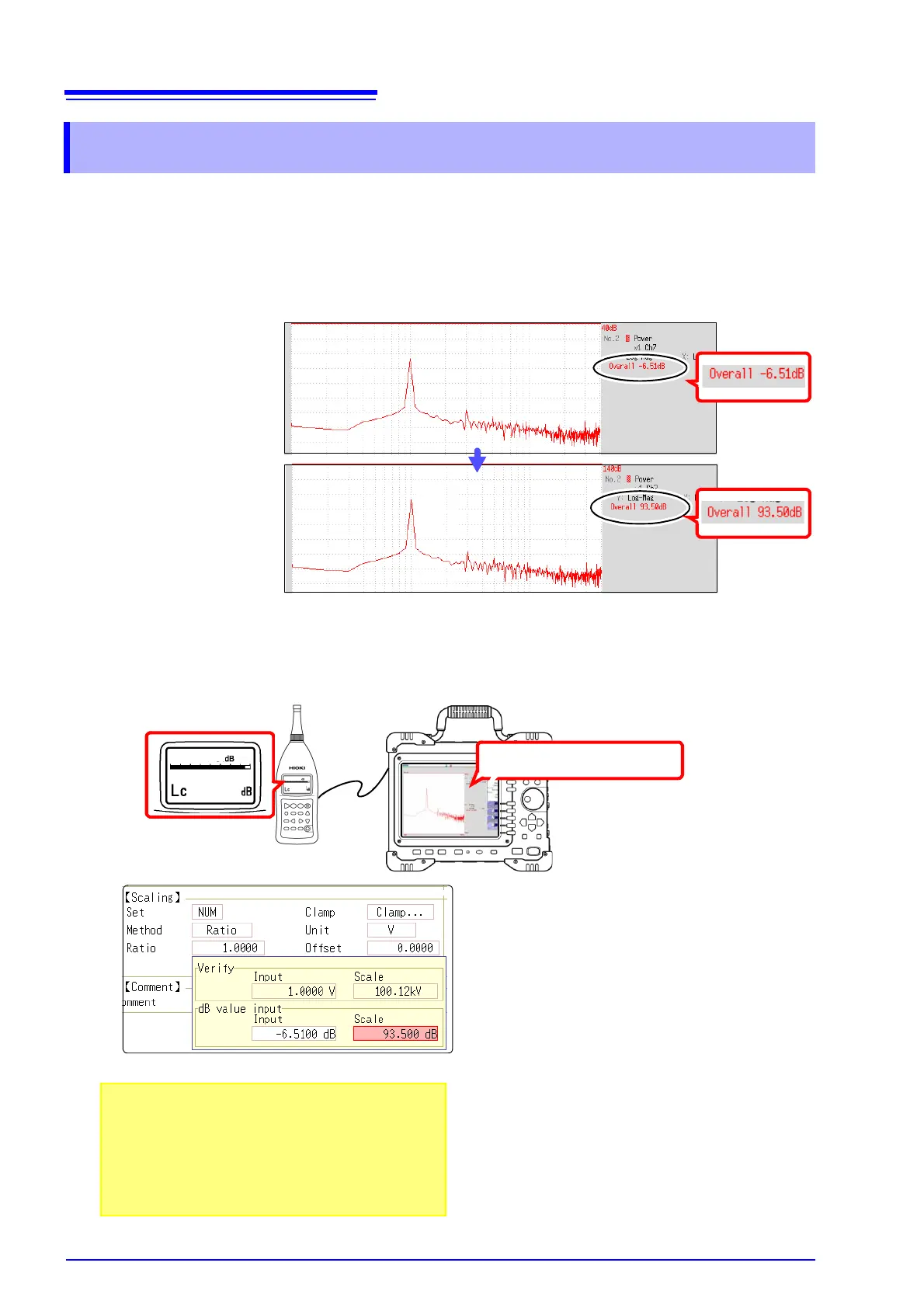

Scaling
The scaling setting allows values displayed on this instrument to match the actual values read directly on
a sound level meter or vibration meter.
Setting example: To display measurement data on this instrument so that it corresponds
to that on a sound level meter.
In a case where a sound level meter displays 93.5 dB and the overall value displayed on the Wave-
form screen of this instrument is -6-51 dB.
13.4 Selecting Channels
Without Scaling
With Scaling
1 Select [Num].
2 Select [Ratio].
3 Move the cursor to [Ratio], and press the
F1 [dB Scaling] key.
The dB Scaling dialog appears.
4 Enter the (overall) value “-6.51” displayed
on the instrument.
5 Enter the value "93.5" (from the sound
level meter) that you want to read
directly.
6 Press F5 [Confirm] key to perform scal-
ing.
Scaling is performed automatically and the con-
version value is set in the conversion rate column.
See: "Overall Value"( p.A21)
Overall: -6.51dB
0 dB reference differs depends on the physical quantity.
As an example for sound pressure, 20 μPa is 0 dB.
In dB scaling, the dB value can be directly read; howev-
er, it may not be possible to directly read instantaneous
values.
Read the written standards and other materials regard-
ing 0 dB references.
93.5
93.5
