10.3 Judging Calculation Results
180
Set the judgment criteria (upper and lower threshold values) by which to judge numerical calculation
results. Judgment criteria can be set for every numerical calculation.
Waveform acquisition processing depends on the trigger mode setting (Single or
Repeat) and the criteria specified to stop measuring upon judgment (GO, NG or
GO & NG).

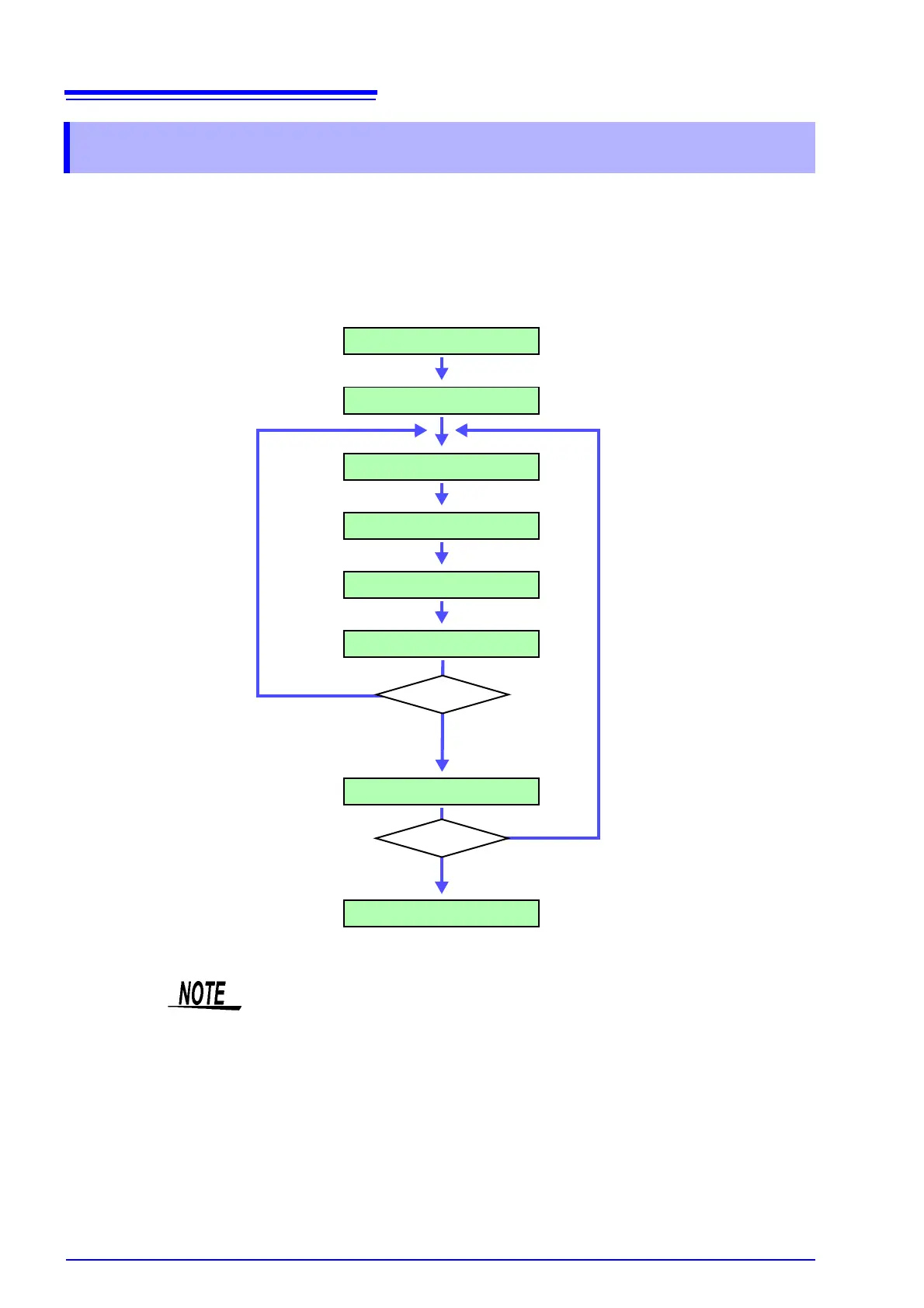

10.3 Judging Calculation Results
Make Calculation Settings
Start Measurement
Acquire Data
Calculate
Display Calculation Results
Calculation Judgments
Print or Save
Stop Measurement
Stop criteria
not met
[Repeat]
[Single]
Measurement repeats
until stop criteria are met
Measurement repeats until you
press the STOP key
Stop Criteria Met or
Stop Criteria is
GO&NG
Automatic saving and automatic printing will not be carried out before termina-
tion conditions are fulfilled at the end of the calculation evaluation.
