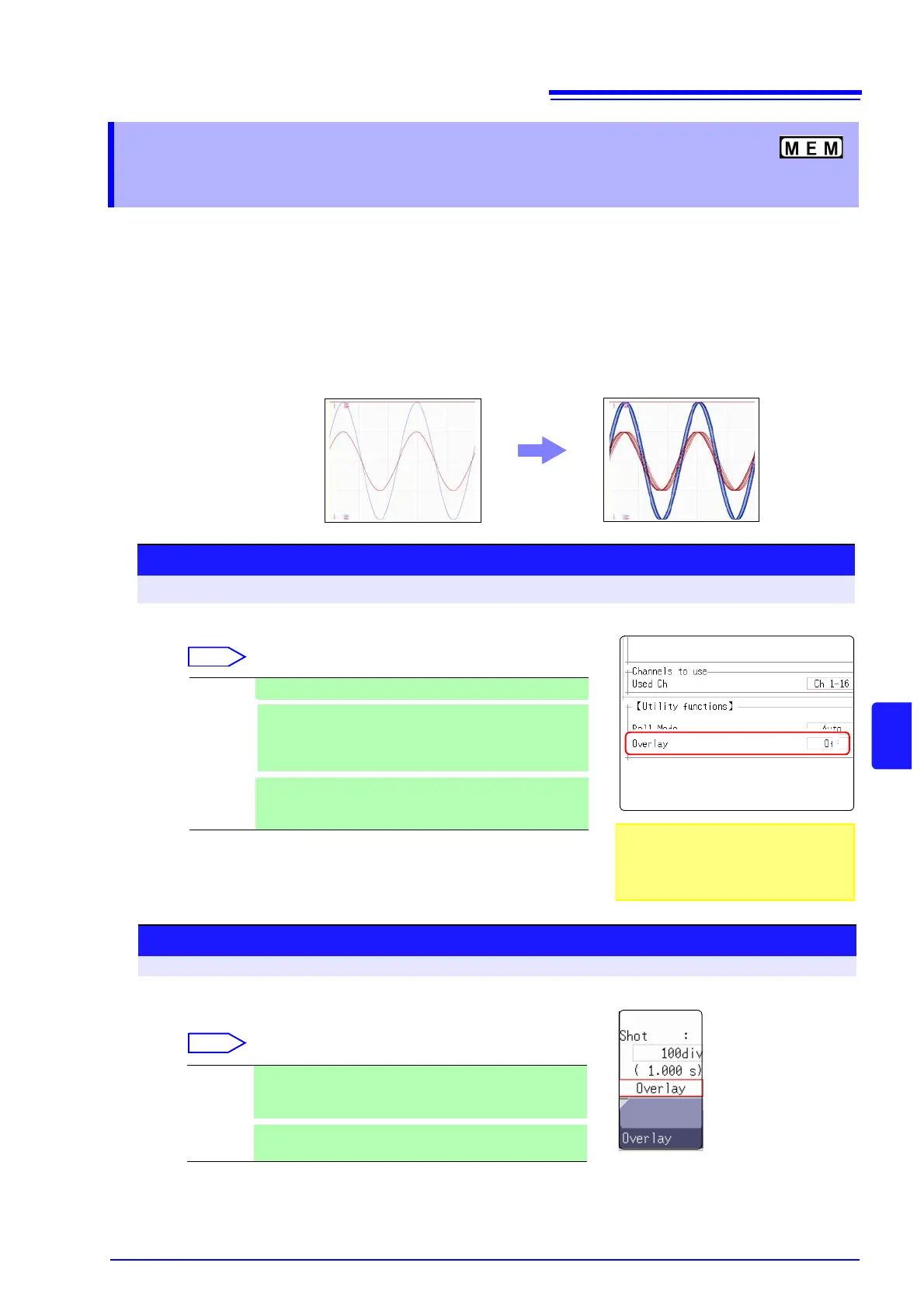

8.3 Displaying New Waveforms Over Past Waveforms (Overlay)
125
8
Chapter 8 Utility Functions
This applies to the Memory function only.
Displayed waveforms are retained on-screen and overlaid with new waveforms.
• Use this to compare new waveforms with those recorded immediately before.
(When the trigger mode is [Repeat] or [Auto]) ( p.153)
• There are two overlay methods: automatic overlay during measurement and
manual overlay.
8.3 Displaying New Waveforms Over Past
Waveforms (Overlay)
Normal Display
Waveforms with the Overlay Function
Procedure
To open the screen: Press the STATUS key → [Status] sheet
Move the cursor to the [Overlay] item.
Select
Off Overlay disabled.(default setting)
Auto
Each time a waveform is acquired, it is automatically dis-
played as an overlay.
When the trigger mode is [Cont.] or [Auto], waveforms will
be overlaid from start until stop.
Manual
Overlay waveforms on the screen manually. Regardless of
the trigger mode, the waveform is left on the screen.
(
 p.125)
This mode cannot be used simultaneously
with the Roll Mode.
"When the Overlay function is enabled
([Auto] or [Manual])." (
 p.126)
Manual Overlay (Any waveform can be retained on-screen)
To open the screen: Press the DISP key →Waveform screen
Move the cursor to the [Overlay].
Select
Overlay
(F1 key)
Pressing F1 key [Overlay] leaves the loaded waveform on
the screen.
The overlay is displayed until the waveform is cleared.
Clear
(F5 key)
Clears the screen of all overlaid waveforms.
Cleared waveforms cannot be displayed again.
