7.3 Moving the Waveform Display Position
107
7
Chapter 7 Waveform Screen Monitoring and Analysis
You can specify the portion to be displayed immediately.
Display location can be specified as follows:
• Trigger point
• A/B cursor location
• Specified location (from the beginning [0%] to the end [100%] of the wave-
form)

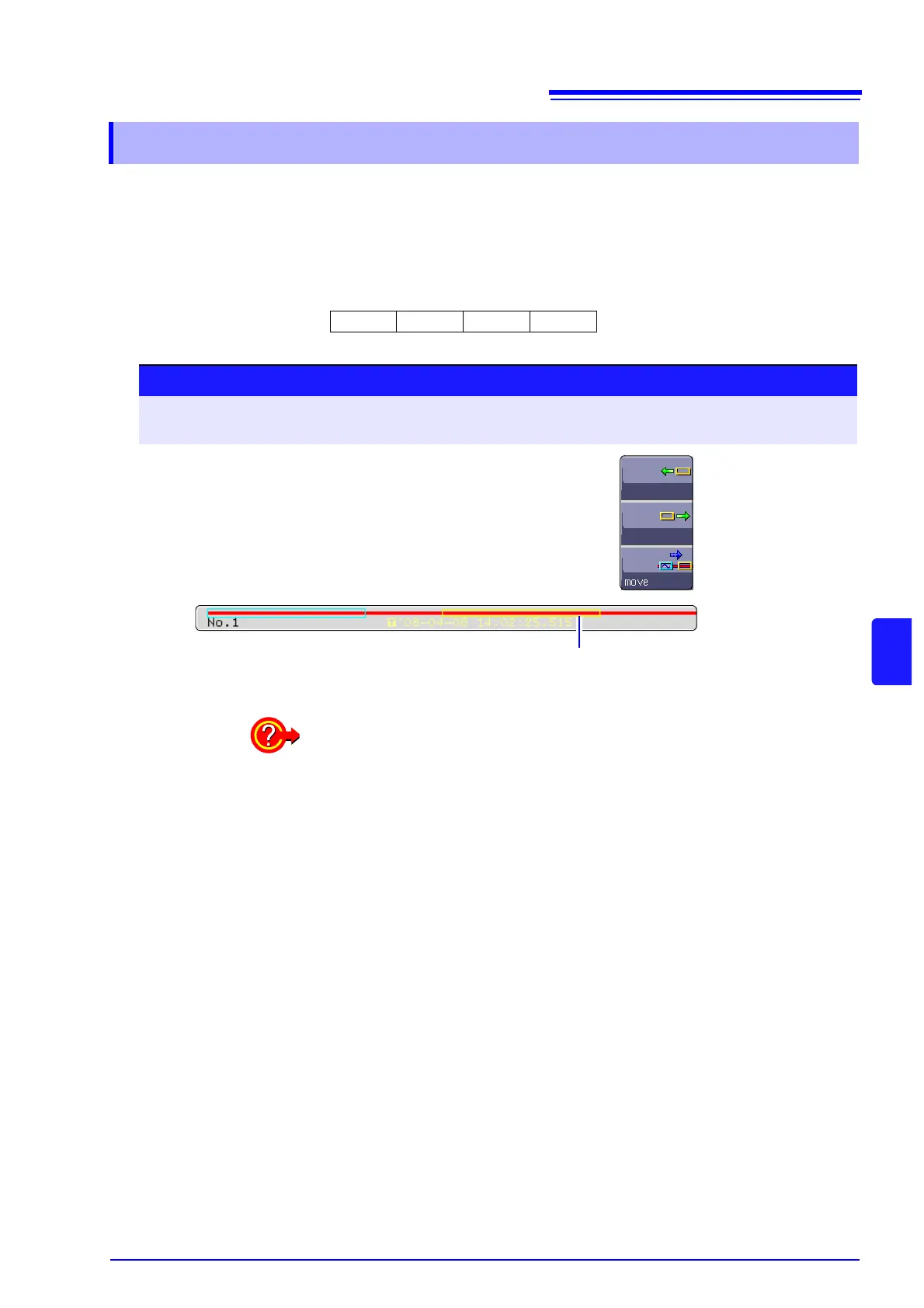

7.3.3 Moving the Position (Jump Function)
Procedure
To open the screen: Press the DISP key → Waveform screen → Press the WAVE key → WAVE settings GUI
is shown
1
Use the F keys [←], [→] to specify the position.
The yellow frame on the scroll bar indicates the moving position.
2
Select [Move].
The selected display position appears on the screen.
Moving position
Moving the position when [Memory Div: On] with the Memory function:
Press the F1 key [pos↔block]. With no block displayed in the upper part of
the screen, move the position.
(When a block is displayed in the upper part of the screen, the desired block
can be selected and the recorded waveform can be displayed. ( p.115)
To Next Page
