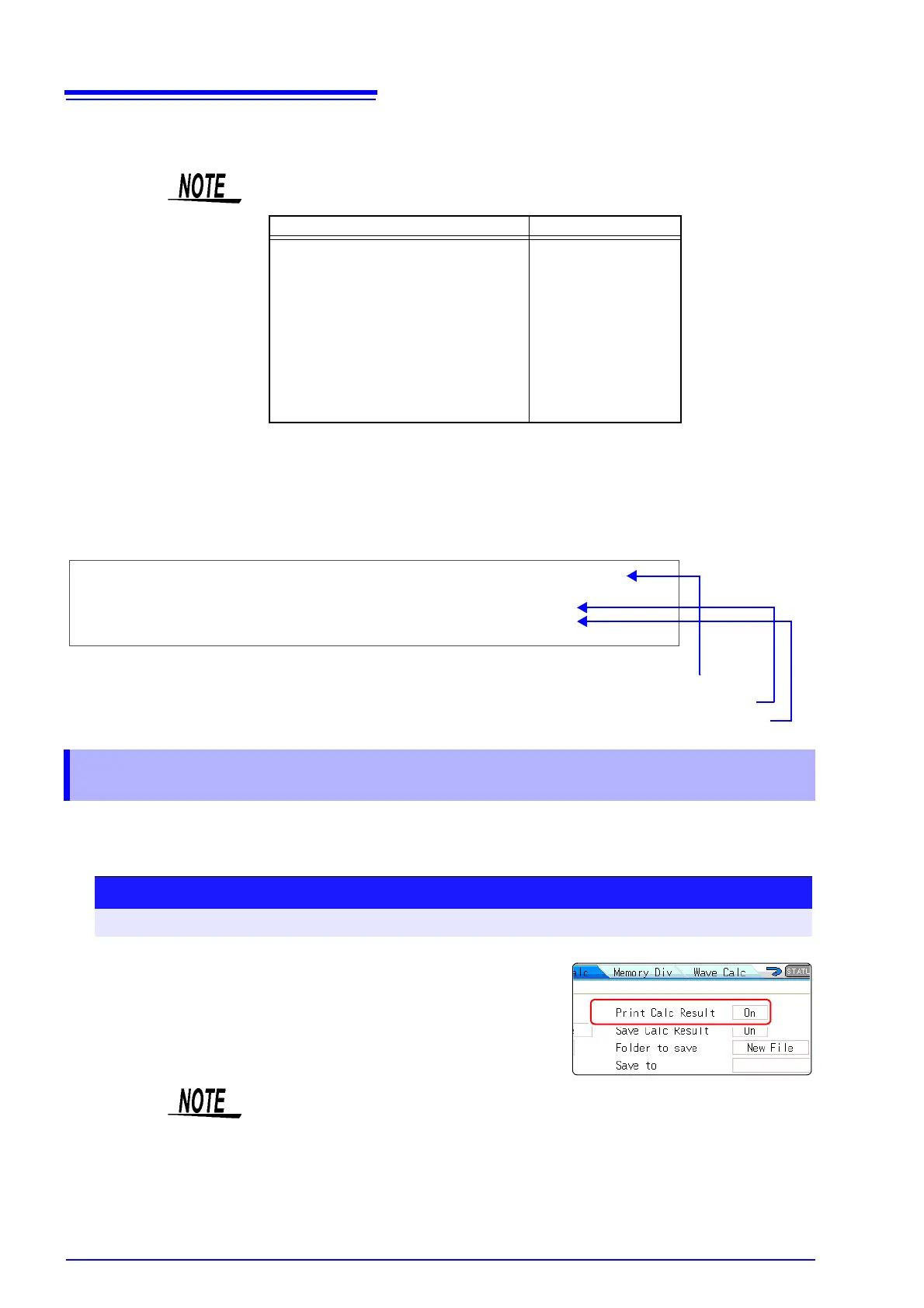

10.5 Printing Numerical Calculation Results
184
Example for saving numerical calculation results ___________________
You can print the calculation results.
When Auto Print is enabled, the result data are printed after waveform printing.
If you save numerical calculation results, characters or display items used on the
instrument are converted as shown below.
Characters used on the instrument Saved characters
2
^2
3
^3
μ ~u
Ω ~o
e~e
°~c
±~+
με (display only)
uE
°C (
display only)
C
"Trig Time" ,"No1 Maximum Ch1" ,"No2 Minimum Ch1" ,"No3 Maximum Ch2" ,"No4 Minimum Ch2"
"","V","V","V","V"
"08-04-11 17:40:33.351","+3.00078E-05","+2.12000E-04","+2.00000E-03","+1.30000E-03"
"08-04-11 17:44:25.976","+3.06078E-05","+2.39996E-04","+2.00000E-03","+1.10000E-03"
<When calculation settings are as follows>
Calculation No. 1: Maximum value of analog channel 1
Calculation No. 2: Maximum value of analog channel 1
Calculation No. 3: Maximum value of analog channel 2
Calculation No. 4: Maximum value of analog channel 2
Line 1: Calculation Settings
Line 2: Calculation Result Unit
From Line 3: Calculation Results
Recorded in the order of the calculation settings of line 1.
10.5 Printing Numerical Calculation Results
Procedure
To open the screen: Press the STATUS key → [Num Calc] sheet
Move the cursor to the [Print Calc Result], and select [On].
Printing is also carried out when only calculation but no measurement was per-
formed.
