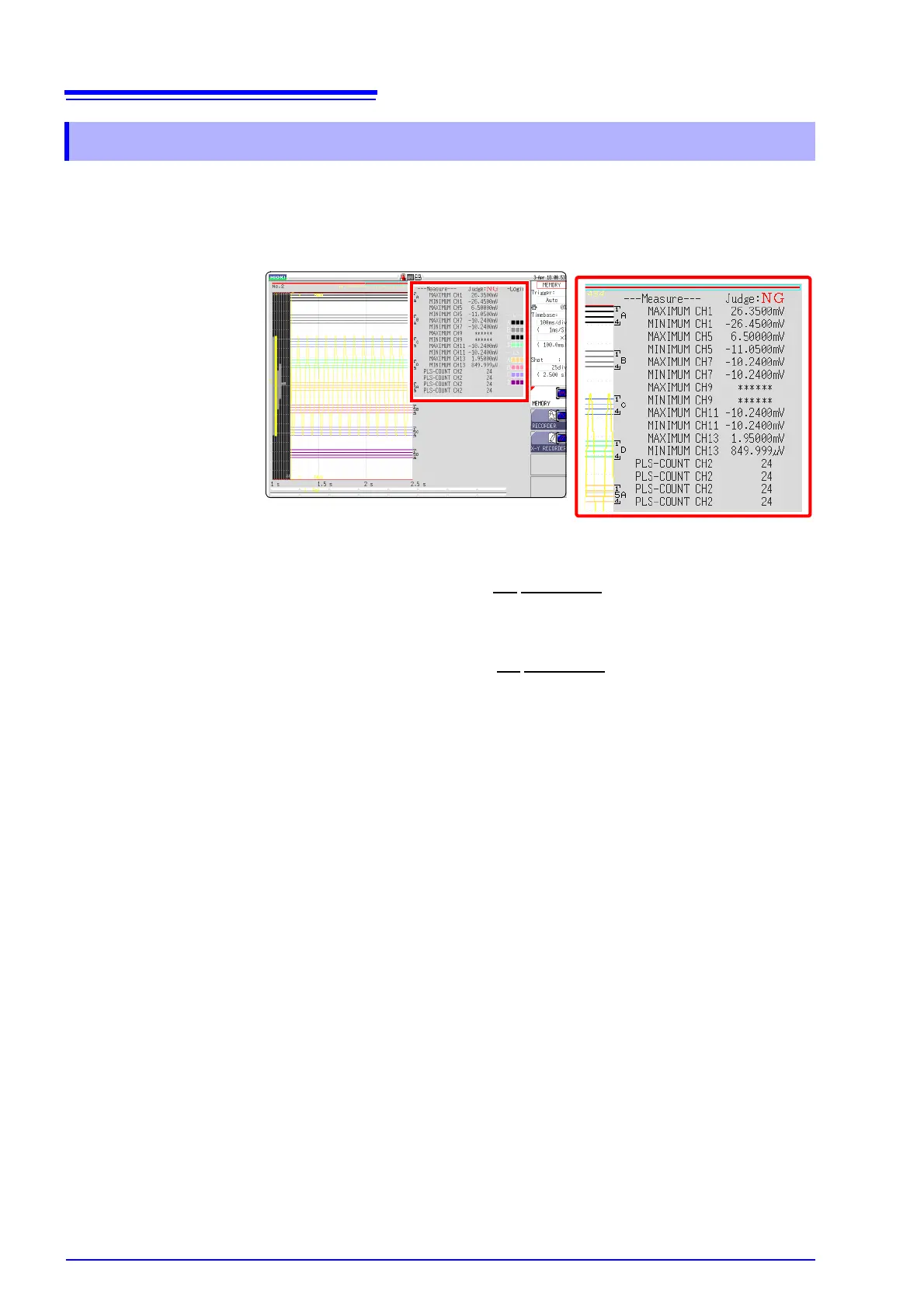

Judgment results of numerical calculations are displayed on the Waveform screen.
Within the judgment threshold range: GO judgment
Out of the judgment threshold range: NG judgment (displayed in red)
When printing, judgment results for each parameter are also printed.
When the judgment result is GO
• The GO signal is output at the GO
/EXT.OUT.1 external I/O terminal.
When the judgment result is NG
• The NG signal is output at the NG
/EXT.OUT.2 external I/O terminal. The NG
judgment is asserted when any channel is judged as NG.
• When the beeper is enabled, a beep sounds when a result is out of the thresh-
old range.
10.3.1 Display of Judgment Results and Signal Output
