8.10 Making Detailed Settings for Input Modules
141
8
Chapter 8 Utility Functions
See: Opening the [Each Ch] sheet, Making a Channel Selection ( p.140)
A.A.F Enable the anti-aliasing filter to remove aliasing distortion.
The cutoff frequency automatically changes according to the time axis range or
(when the FFT function is used) the frequency range setting.
Select
See: Opening the [Each Ch] sheet, Making a Channel Selection ( p.140)
Probe Make the setting when performing measurement with a connection cable or
probe.
Select

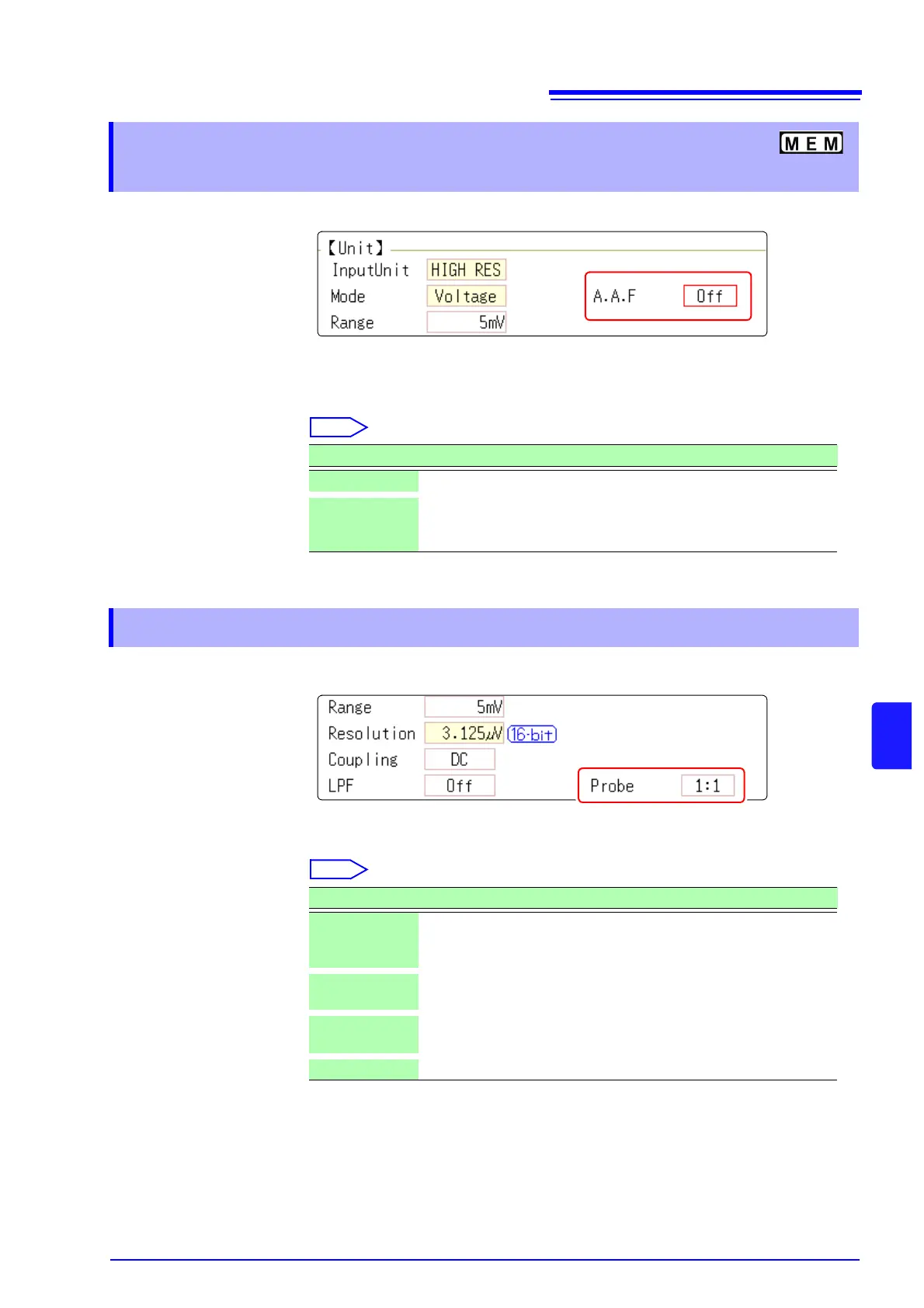

8.10.1 Making Settings for the Anti-Aliasing
Filter (A.A.F.) (8968 High Resolution Unit)
Selections Description
Off
The anti-aliasing filter is disabled. (default setting)
On The anti-aliasing filter is enabled.
(When the External sampling is used, the antialiasing filter (AAF) is
not available.)
8.10.2 Probe Attenuation Selection
Selections Description
1:1
Select this setting when measuring with the Model 9197, L9198 or
L9217 Connection Cord connected to the input module.
(default setting)
10:1
Select this setting when measuring with the Model 9665 10:1 Probe
connected to the input module.
100:1
Select this setting when measuring with the Model 9666 100:1
Probe connected to the input module.
1000:1 Select this setting when using the 9322 Differential Probe.
