6.5 Making Printer Settings
95
6
Chapter 6 Printing

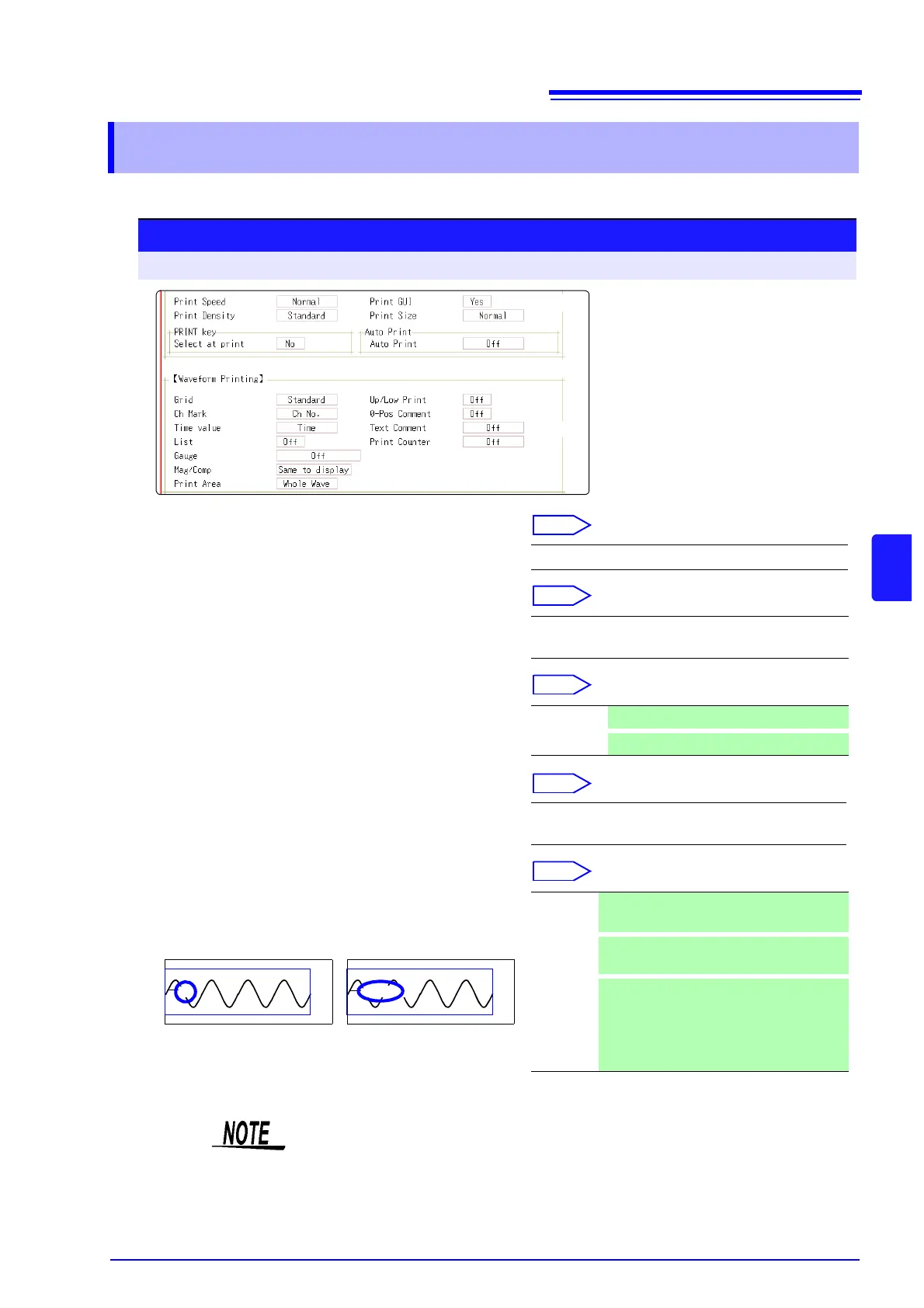

Make settings on the [Printer] sheet of the System screen.
6.5 Making Printer Settings
Printer settings
To open the screen: Press the SYSTEM key → [Printer] sheet
1
Select the print quality.
Move the cursor to the [Print Speed] item.
Select
2
Select the printer density.
Move the cursor to the [Printer Density] item.
Select
3
Select the print size.
Move the cursor to the [Print Size] item.
Select
4
Select the grid type.
Move the cursor to the [Grid] item.
Select
5
Select the channel marker type.
Move the cursor to the [Ch Mark] item.
Select
Fast/Coarse (default setting), Normal , Slow/Fine
Light, Midlight Standard (default setting), Middark,
Dark
Small Print on lower half of recording paper.
Normal
(default setting)
Off, Standard (default setting), Fine, Std Dark,
Fine Dark
Channel number. Comment
<Print Example>
1
Voltage
Off Do not print the channel number or com-
ments on the recording paper.
Ch No.
Print the channel number on the recording
paper. (default setting)
Comment
Print the comments entered in the Channel
Settings screen over the waveform on the
recording paper.
A comment setting must have been made.
See: "8.1 Adding Comments" (
 p.118)
4
5
1
2
3
( p.99)
( p.98)
Grid Type
Grids displayed on the screen are not reflected in the printout.
Print Quality
While [USB Set] is set to [Mass Storage], printing speed is always Slow/Fine.
