11.2 Settings for Waveform Calculation
193
11
Chapter 11 Waveform Calculation Functions
Waveform calculation results are displayed on the Waveform screen.
5
When finished entry, select [Confirm].
The entered equation is displayed in the [Equation] field.
The scale (maximum and minimum vales) of the calculation results
has a default setting of [Auto]. If you want to scale the results, set
the maximum and minimum values under [Manual].
See: "Changing the display method for calculated waveforms" ( p.196)
6
(As occasion demands)
Set auto saving ( p.69) and auto printing ( p.91).
7
Execute the calculations.
Applying Calculations to Existing Data
At the [Wave Calc] sheet, select [Exec].
To calculate while measuring
Press the START key to start measurement.
Calculation waveforms are displayed after loading waveforms.
7

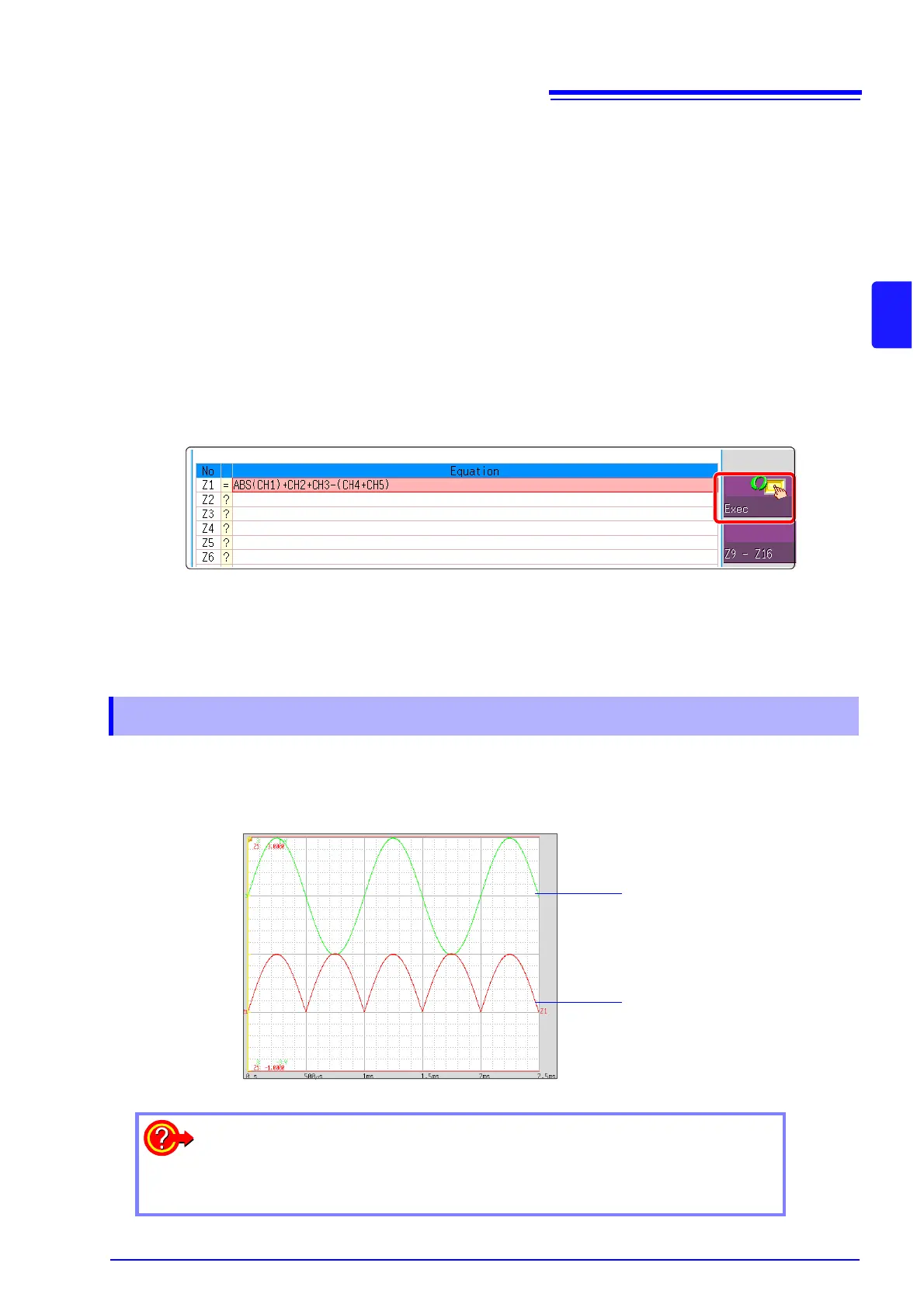

11.2.1 Displaying the waveform calculation results
Example: Waveform of the calculated absolute value of the waveform of CH1. Calcu-
lation equation = ABS(CH1)
CH1 Waveform
Absolute Value
Waveform
To copy settings from one calculation to another:
Settings can be copied at the [Wave Calc] sheet.
See: "8.9 Copying settings to other channels (calculation No.) (Copy function)" ( p.139)
To Next Page
