13.7 Printing Analysis Results

233

Chapter 13 FFT Function

The printing procedure is the same as for the Memory and Recorder functions.

See: "Chapter 6 Printing" ( p.89)

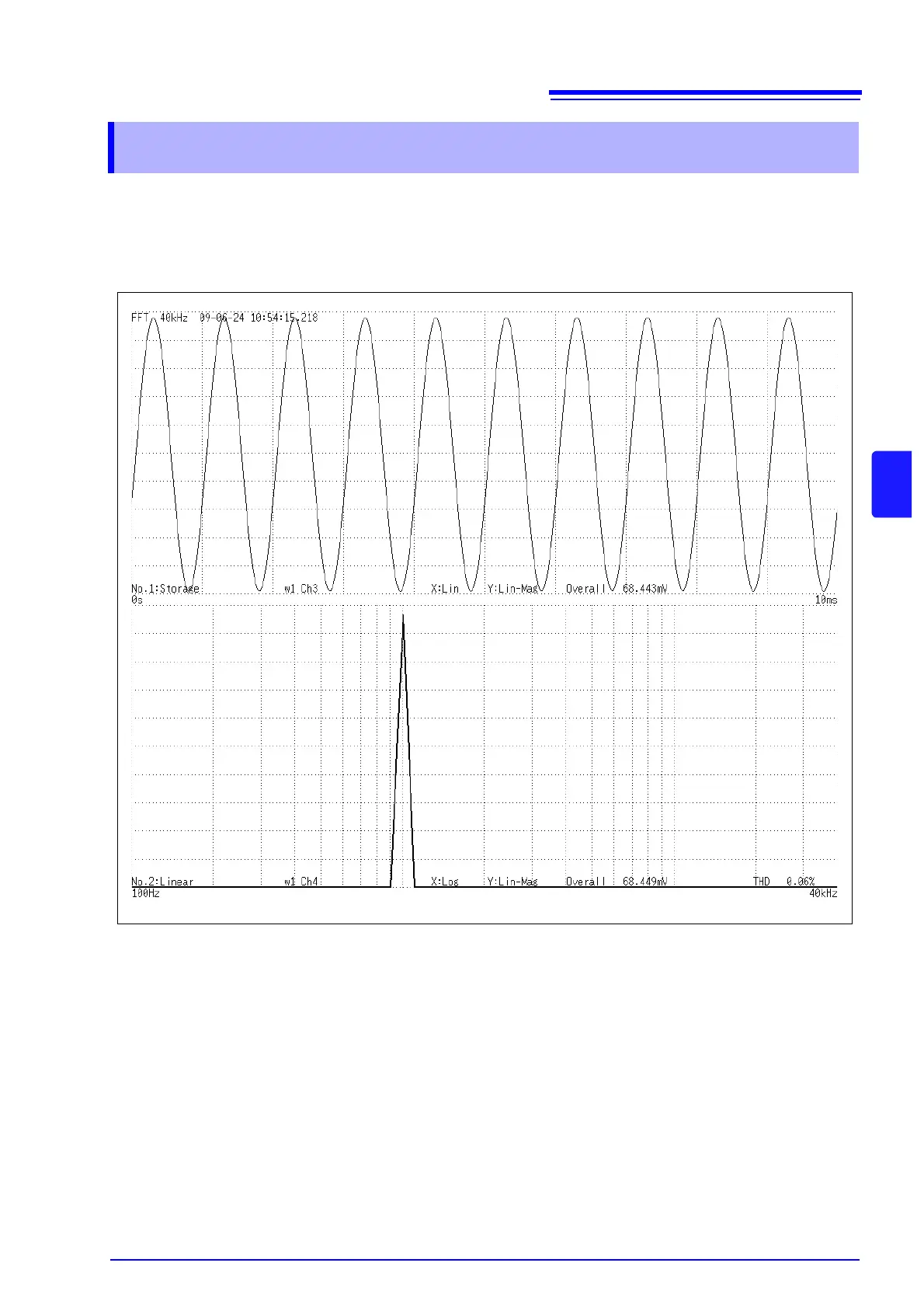

Example of Waveform Printout
