3.4 Setting Measurement Configuration
48
You can specify the format in which the input signal is shown on the Waveform screen or printed
out.
With 2, 4, or 8 screens, analog channels can be freely assigned to the respective
graphs.

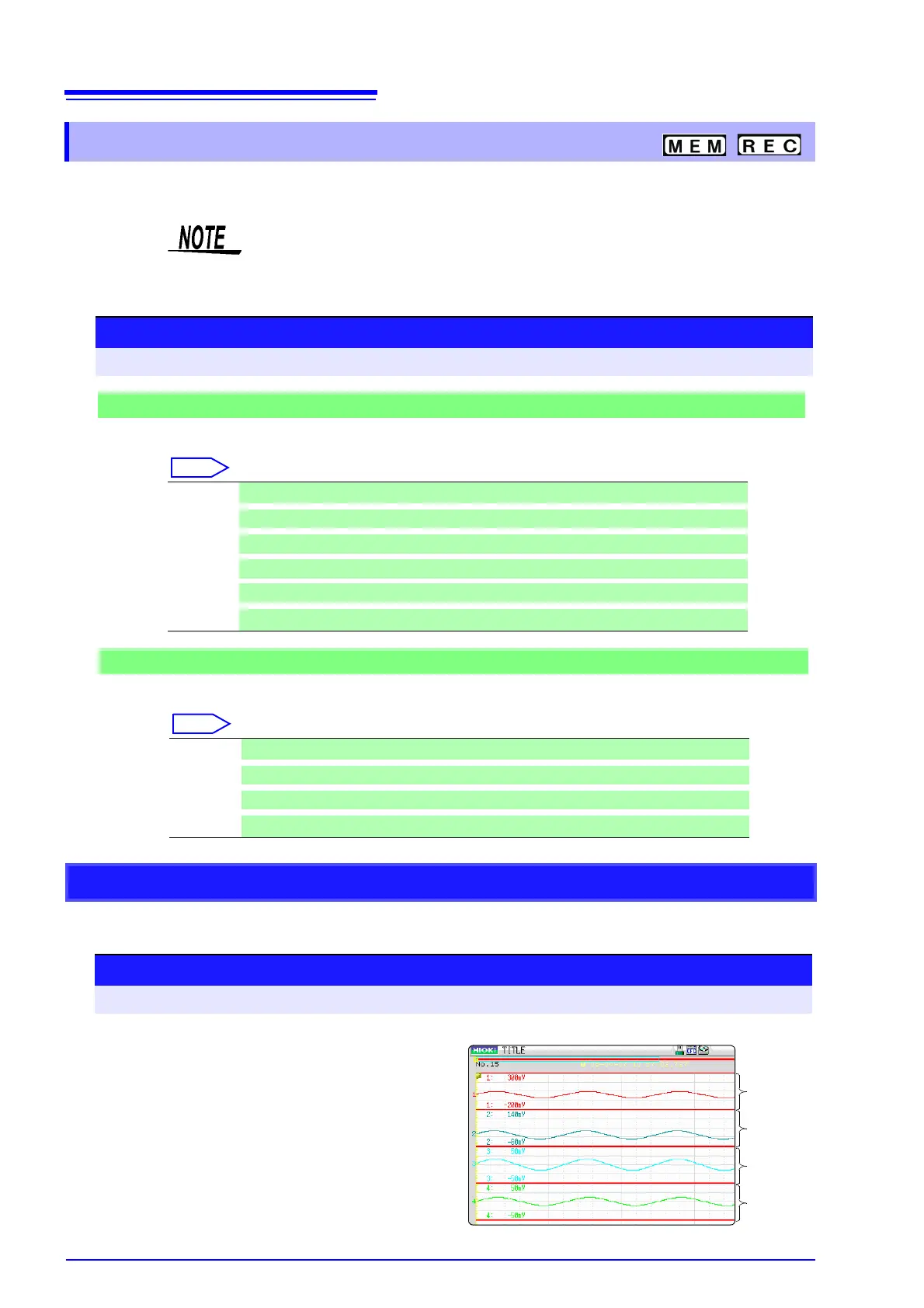

3.4.4 Screen Layout
Selecting X-Y1 screen or X-Y4 screen allows waveform X-Y synthesis. (This
applies to the Memory function and X-Y recorder function.)
See: "7.4 Performing Waveform X-Y Synthesis" ( p.108)
Procedure
To open the screen: Press the STATUS key → [Status] sheet
Memory Function case
Move the cursor to the [Format] item.
Select
Single Display and record using 1 graph. (default setting)
Dual
Display and record using 2 graphs.
Quad
Display and record using 4 graphs.
Oct
Display and record using 8 graphs.
XYSingle
Set input signal to X-Y and display and record the correlation using 1 graph.
XYQuad
Set input signal to X-Y and display and record the correlation using 4 graphs.
Recorder Function case
Move the cursor to the [Format] item.
Select
Single Display and record using 1 graph. (default setting)
Dual
Display and record using 2 graphs.
Quad
Display and record using 4 graphs.
Oct
Display and record using 8 graphs.
Analog Channel Assignment
Procedure
To open the screen: Press the CHAN key →[Unit List] sheet
1
Move the cursor to the [Graph] item.
2
Select the display screen for each channel.
The sequence is Gr1, Gr2, Gr3... from the top.
Gr1
Gr2
Gr3
Gr4
<Sample screen after setting>
