6.6 Miscellaneous Printing Functions
98
You can produce a hard copy of the screen display, perform report printing or list printing.
Press
COPY key while the screen to print is displayed. The printer will produce a hard copy of the
screen contents. The GUI section can also be printed.
The waveform range as displayed on the Waveform screen, upper and lower limit values, and chan-
nel settings are printed in A4 size. When zoom display is enabled, two zoom display screens are
printed.
The A/B cursor pair shown on the Waveform screen is also printed.
If the comment type is set to
[Comment] or [Set&Com] on the Comment sheet of the Channel
screen, the title comment can also be printed. ( )
6.6 Miscellaneous Printing Functions
6.6.1 Screen Hard Copy

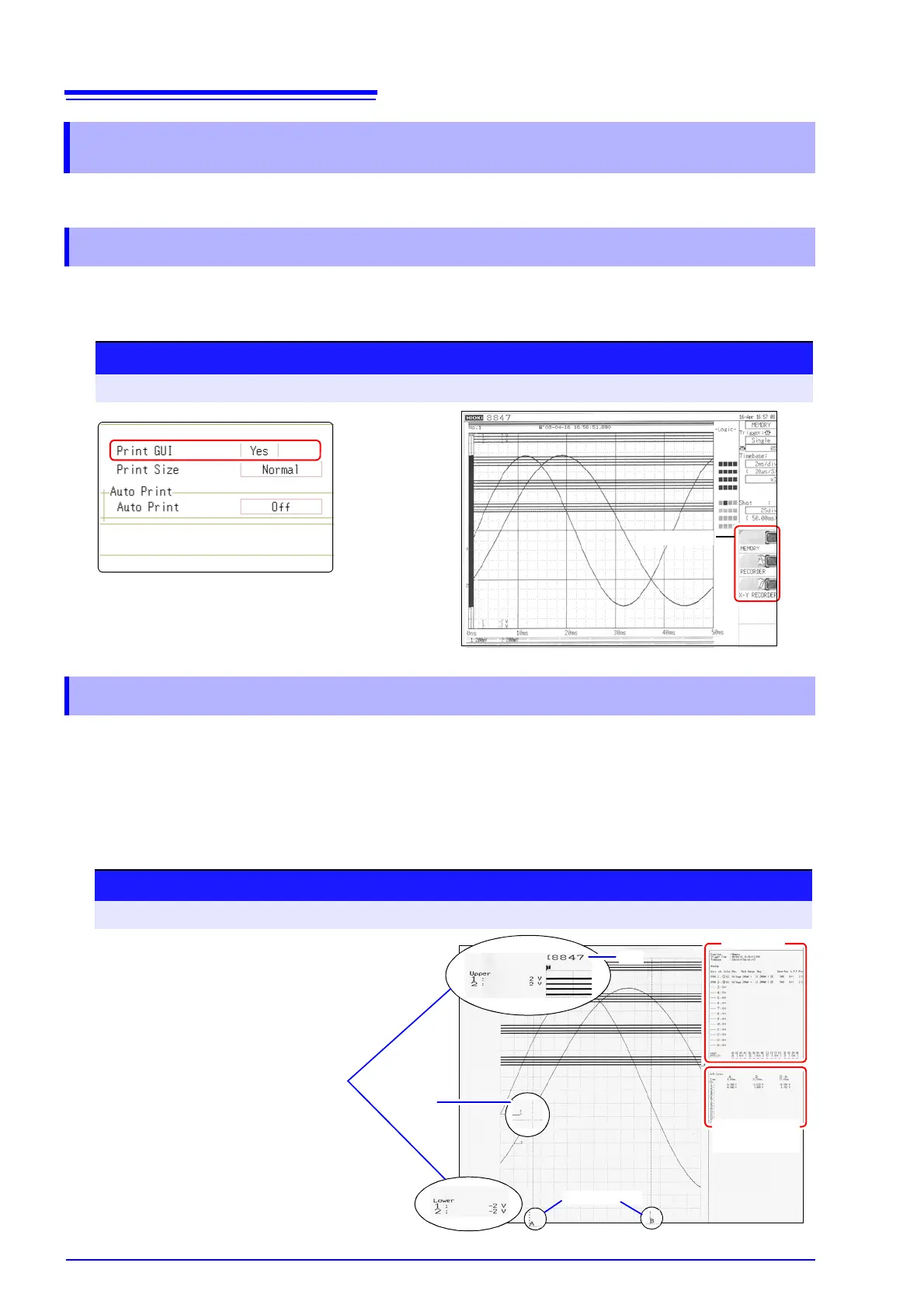

GUI print setting
To open the screen: Press the SYSTEM key → [Printer] sheet
<Print Example>
Set the [Print GUI] item to [Yes].
To stop printing before it has finished:
Press the STOP key.
GUI section
6.6.2 Report Print (A4 Size Print)
See: "8.1.1 Adding a Title Comment" ( p.118)
Procedure
To open the screen: Press the DISP key → File screen, Press the DISP key → Select the [WAVE WIDTH] menu
A/B Cursor
Hold down the FEED key and press the
COPY key.
To stop printing before it has finished:
Press the STOP key.
<Print Example>
Settings
Cursor A/B
Value
Channel
Title
Upper and Lower
Limit Value
To Next Page
