15.7 Controlling the Instrument with Command Communications (LAN/USB)
283
12
Chapter 15 Connection to a Computer
15
Set items related to command communications.
15.7.1 Making Settings on the Instrument
1
2
3
1
Set the delimiter.
Select
Move the cursor to the [Delimiter] item.
2
Make header settings.
Select
Move the cursor to the [Header] item.
3
Set the communications command port. (LAN only)
Move the cursor to the [Port Number] item, and enter the port number.
LF Send character code 0x0a.
CR+LF Send character codes 0x0d and 0x0a.
Off Do not add a header to response data.
On Add a header to response data.
Procedure

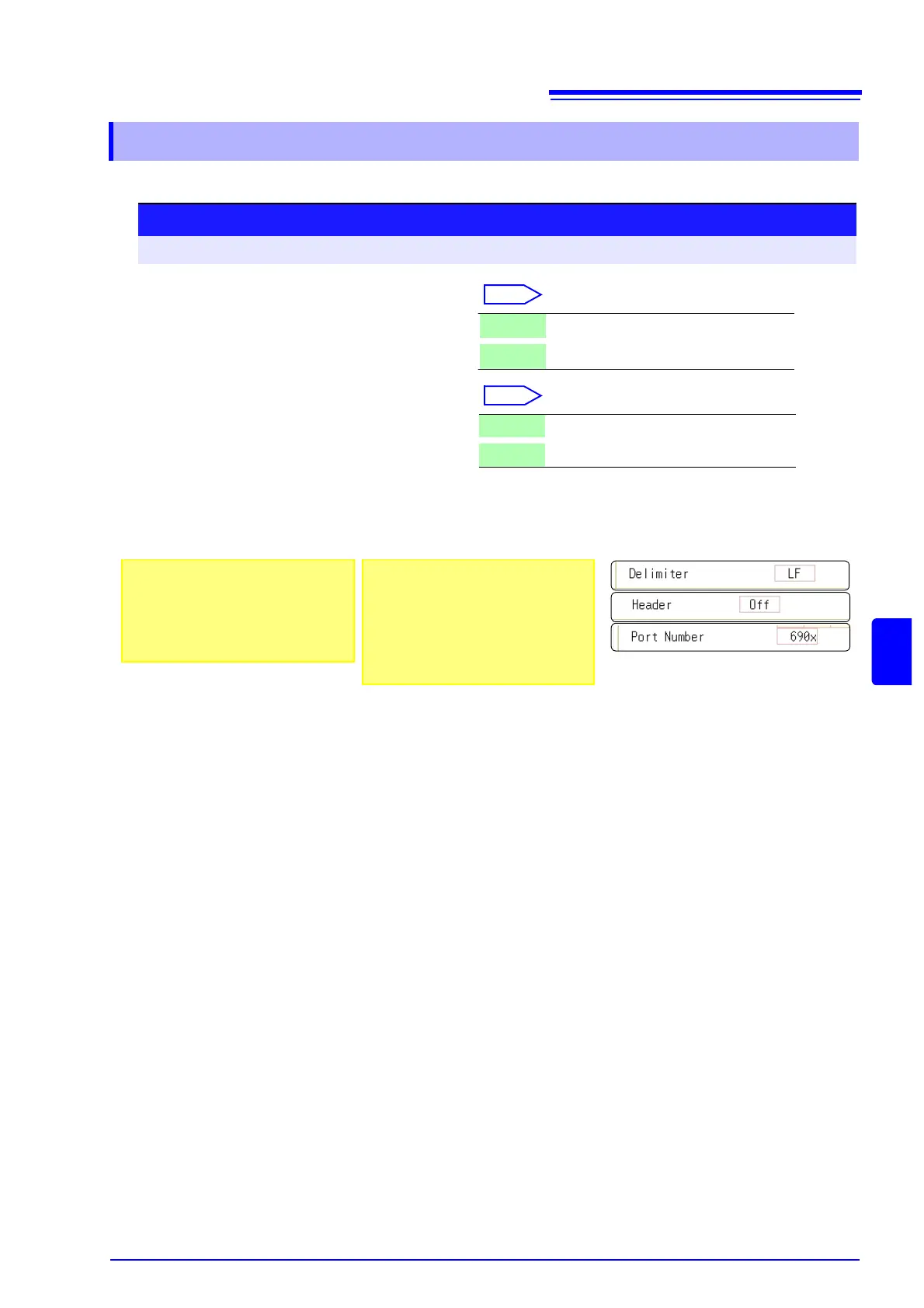

To open the screen: Press the SYSTEM key → [Interface] sheet
About port numbers
Specify only the most significant 3 digits
of the 4-digit port number.
If you specify "880x", port number 8802 is
used.
"Command Port (Port number) (LAN
only)" (
 p.282)
About headers
The response to a :FUNCTION? query
command from the PC differs according
to the header setting.
On ................... :FUNCTION MEM
Off ................... MEM
