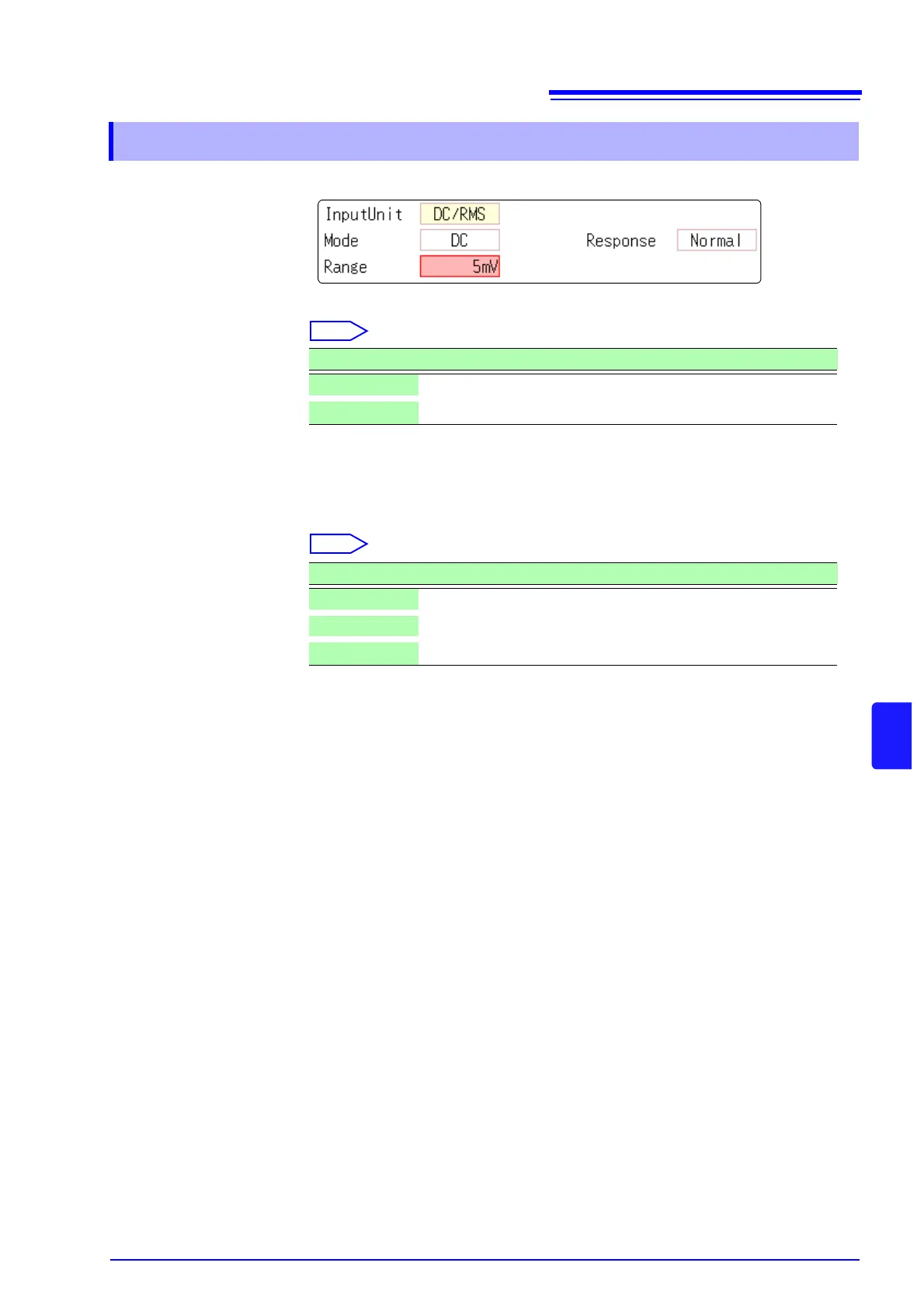

8.10 Making Detailed Settings for Input Modules

149

Chapter 8 Utility Functions

See: Opening the [Each Ch] sheet, Making a Channel Selection ( p.140)

Mode Switches between voltage measurement and RMS measurement.

Select

Response Response can be set to three speeds: Fast, Normal and Slow.

Normally set to [Fast], this can be changed to [Normal] or [Slow] to stabilize the

display when measuring low frequencies, or when severe fluctuations are

present.

Select

8.10.7 Settings for the 8972 DC/RMS Unit

Selections Description

Voltage measurement (default setting)

RMS

RMS measurement

Selections Description

Fast

Sets the response time to about 100 ms. (default setting)

Normal

Sets the response time to about 800 ms.

Slow

Sets the response time to about 5 s.
