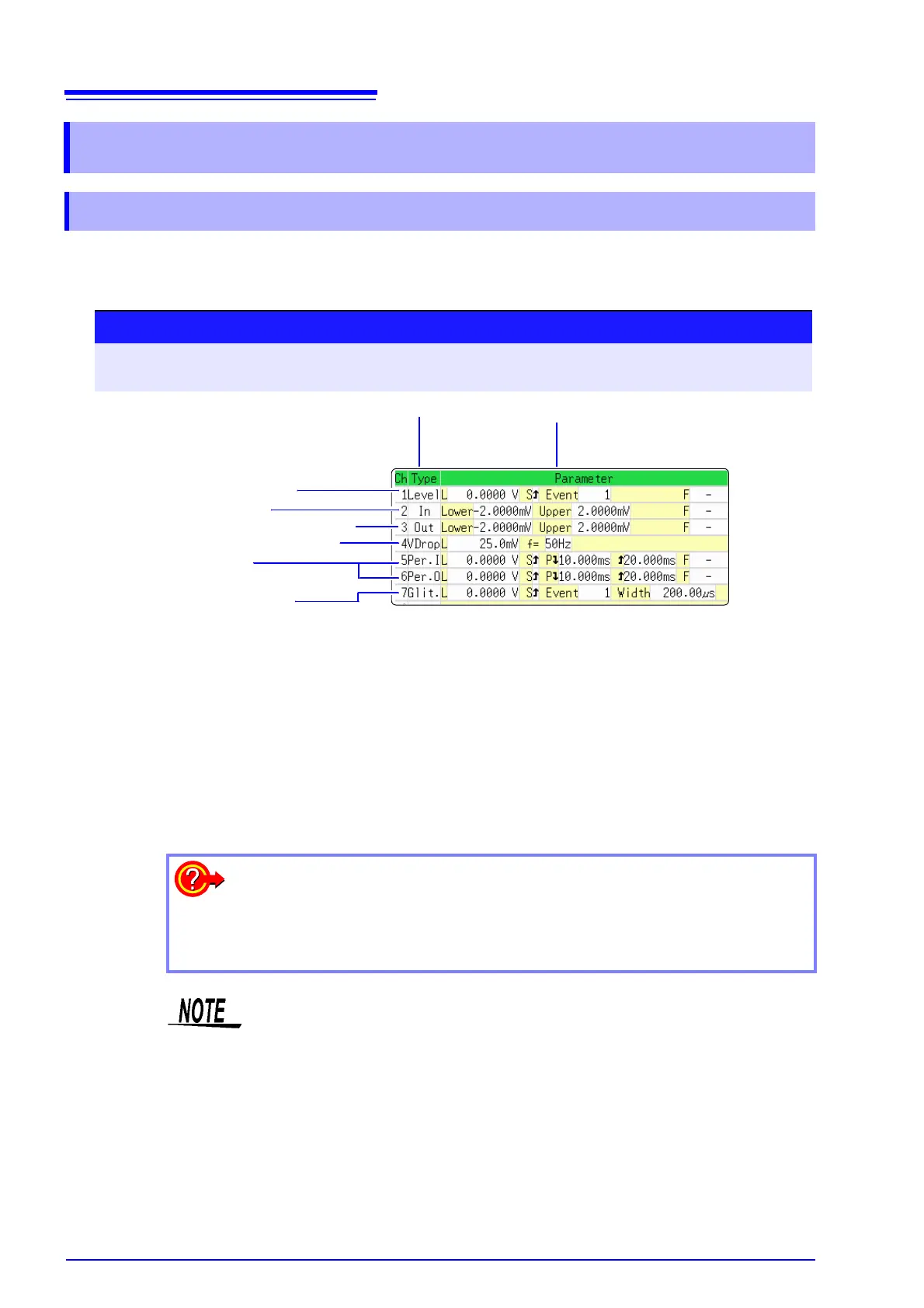

9.3 Triggering by Analog Signals
154
The steps for making settings and selecting the type of analog trigger are described below.
The Trigger settings window ([Analog Trg.] sheet) is used.
9.3 Triggering by Analog Signals
9.3.1 Analog Trigger Settings and Types
Procedure
To open the screen: Press the DISP key → Waveform screen → Press the TRIG.SET key → Trigger settings
window ([Analog Trg.] sheet)
1
Move the cursor to the [Type] item of the channel for which to make the setting.
2
Select the trigger type with the F keys.
3
Move the cursor to the parameter item with the CURSOR keys.
4
Select the parameter value with the F keys.
1 3
1. Level Trigger ( p.155)
2. In-Window Trigger
Out-of-Window Trigger ( p.155)
3. Voltage Sag Trigger ( p.156)
4. In-Period Trigger
Out-of-Period Trigger ( p.157)
5. Glitch Trigger ( p.157)
To copy the setting to another channel
The Trigger settings window ([Analog Trig] sheet) can be used to copy a setting.
See:"8.9 Copying settings to other channels (calculation No.) (Copy function)" (
p.139)
When the FFT function is used and [Reference] item on the [Status] sheet is
set to [From Memory], an analog trigger cannot be set.
