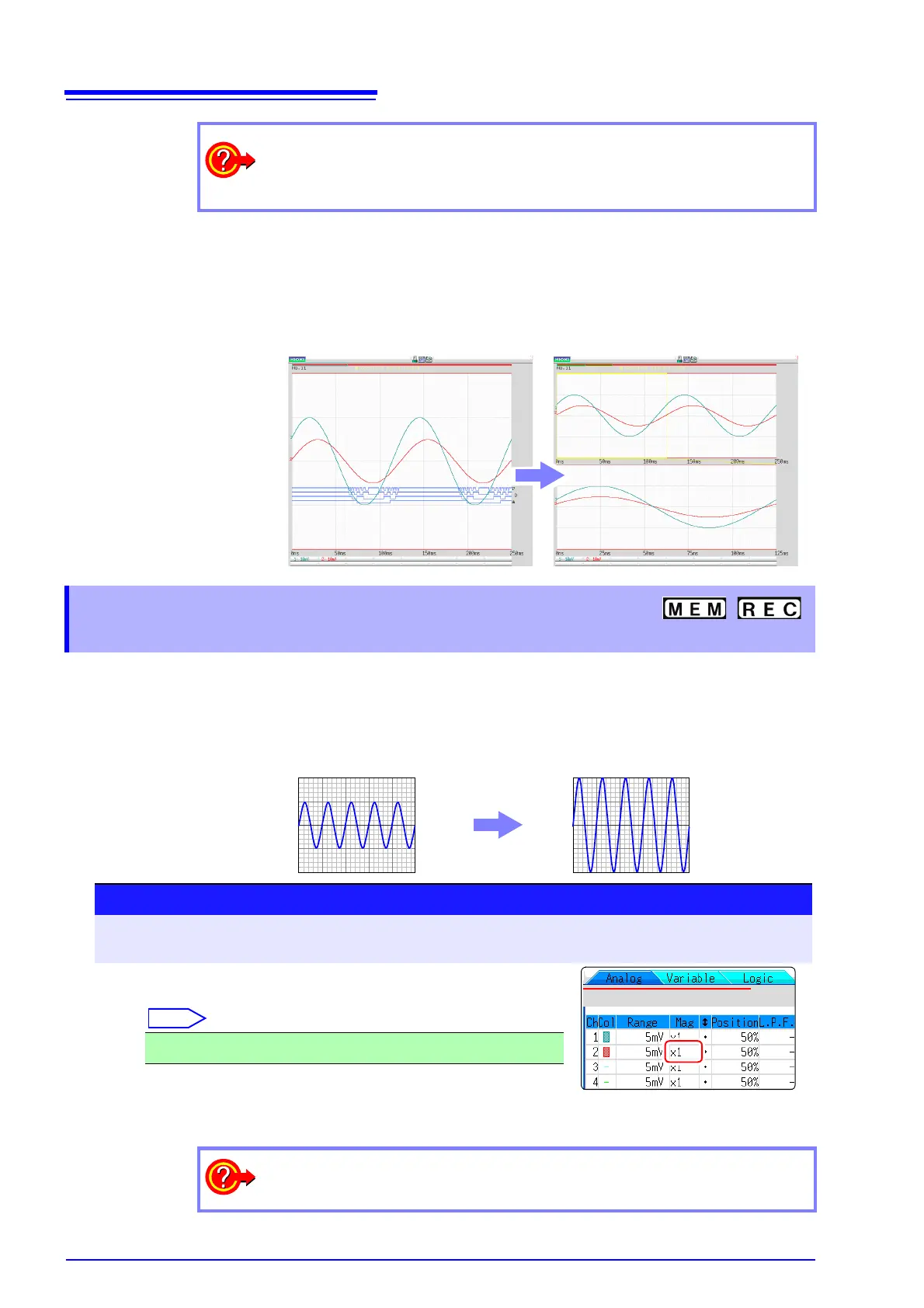

7.5 Magnifying and Compressing Waveforms
112
Description About logic waveform display
When the Zoom function is enabled, and the logic waveform display position is at
less than [50pos], the logic waveform will not be displayed.
Example: Display position [30pos]
This applies to the Memory function and Recorder function.
Waveforms on each channel can be magnified or compressed along the vertical axis (voltage axis)
for display or printing.
Magnification and compression based on zero position.
To view the entire waveform (Memory function only)
Move the cursor to the ratio item in the settings window and select [All Wave].
The waveform information for the entire recording length is displayed.
Normal Display Zoomed Display
7.5.3 Magnifying and Compressing
Vertical Axis (Voltage Axis)
Normal Display
Magnified Display
Procedure
To open the screen: Press the DISP key → Waveform screen → Press the CH.SET key → Channel settings
window ([Analog] sheet)
Move the cursor to the [Mag] item of the channel to adjust.
Select
Selecting [Invert] will invert plus and minus in the waveform.
See: "8.8 Inverting the Waveform (Invert Function)" ( p.138)
x1/10, x1/5, x1/2, x1, x2, x5, x10, x20, x50, x100
To display at an arbitrary ratio
See: "8.6 Variable Function (Setting the Waveform Display Freely)" ( p.134)
