6.5 Making Printer Settings
97
6
Chapter 6 Printing
10
Set the upper and lower limit value
Move the cursor to the [Up/Low Print] item.
Select
11
Set the zero-position comment
Move the cursor to the [Zero-Pos Comment] item.
Select
The zero position comment is not printed in the following
case:
• When the waveform screen format has been set to X-Y,
or FFT display
• When no comment has been set for a channel
See: "8.1 Adding Comments" (
 p.118)
12
Select the counter print.
Move the cursor to the [Print Counter] item.
Select
(When [Date] or [Name] is selected)
If you want to begin from an arbitrary count
Move the cursor to the [Counter Num], and set an arbitrary count.
See: "8.1.3 Alphanumeric Input" ( p.121)
The count is automatically cleared to zero when the instrument is powered on.
The count is increased by 1 each time a waveform is acquired. (Maximum count 9999)
(When [Name] is selected)
Enter a counter name.
Move the cursor to the
[Counter Name], and enter a counter name (up to 10 characters).
See: "8.1.3 Alphanumeric Input" ( p.121)

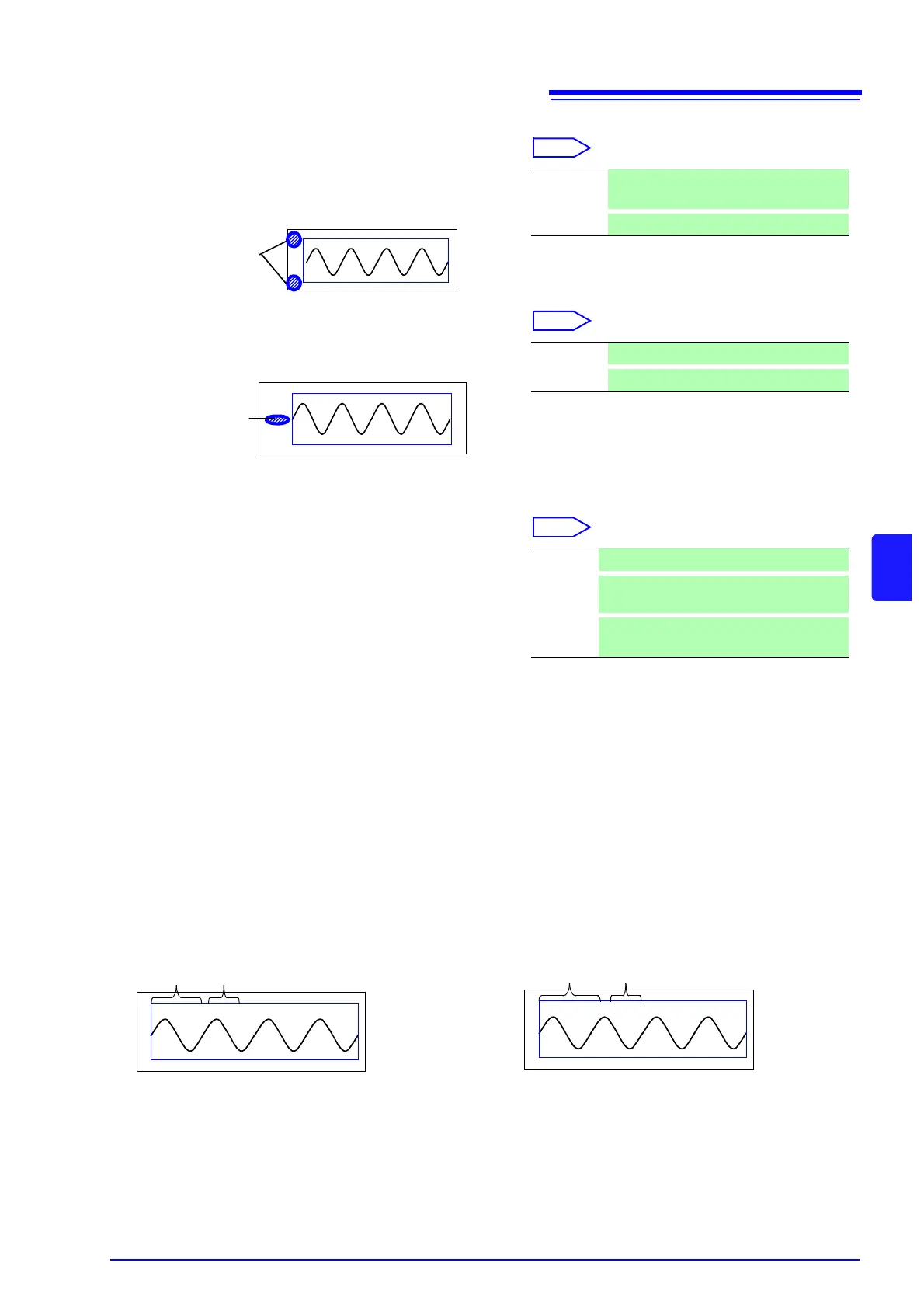

<Print Example>
Upper and
Lower Limit
Off Do not print upper and lower limits. (default
setting)
On
Print upper and lower limits.
<Print Example>
Comment
Off Print the channel number. (default setting)
On
Print zero position comment.
Off Do not print a counter. (default setting)
Date
Print the date of printing and a waveform ac-
quisition count. (Example: 04-8-1-0001)
Name
Print a counter name and a waveform acqui-
sition count. (Example: DeviceA-0001)
<Print Example of Data and Counter>
08-5-1-0001
Date Counter
<Print Example of Counter name and Counter>
DeviceA-0001
Counter name Counter
