8.10 Making Detailed Settings for Input Modules
147
8
Chapter 8 Utility Functions

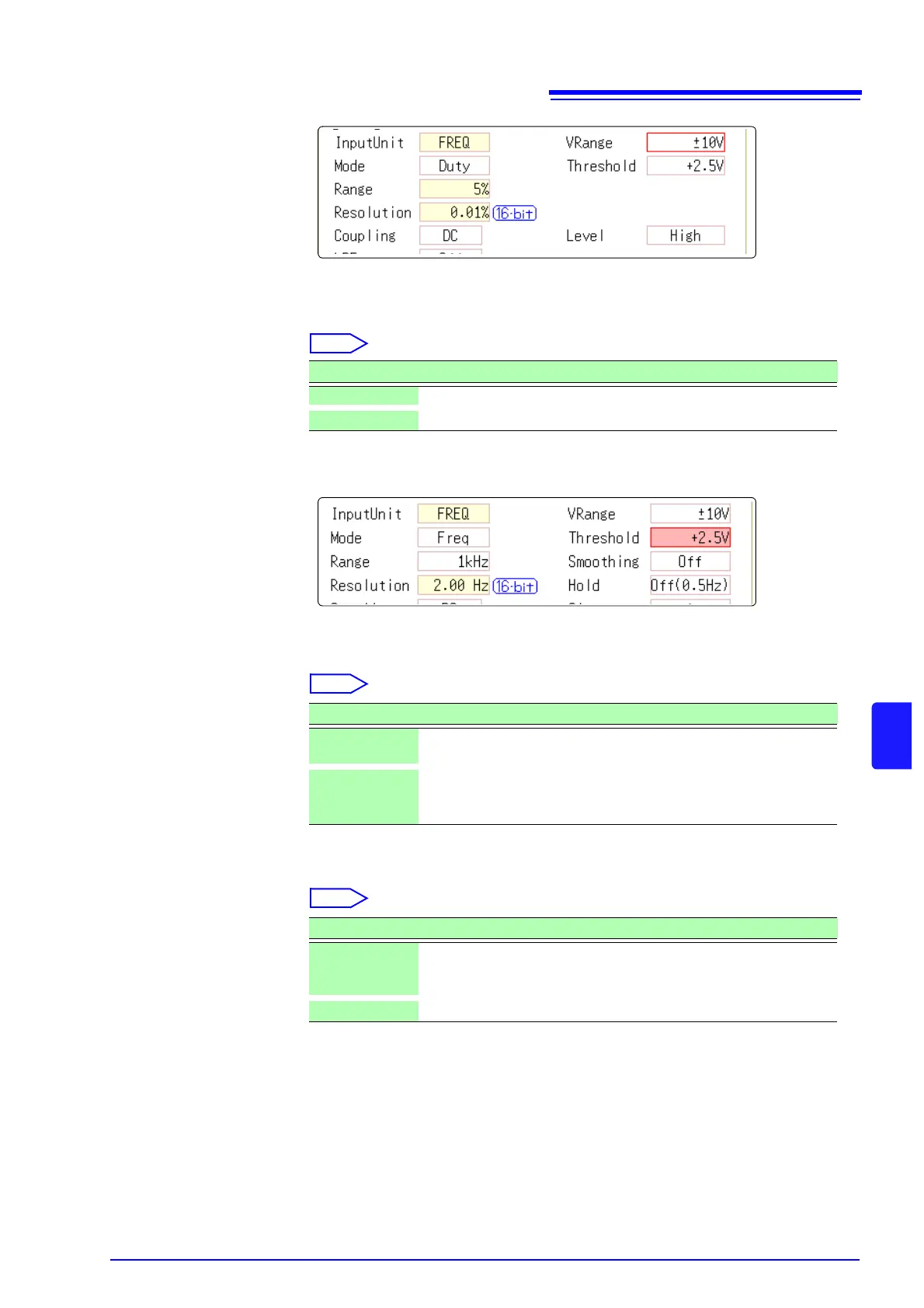

Level This is enabled only when [Mode] is [Pulse Width] or [Duty].
In pulse width/ duty rate measurements, set which level is detected when the
threshold is exceeded.
Select
See: Opening the [Each Ch] sheet, Making a Channel Selection ( p.140)
Smoothing This is enabled only when [Mode] is [Frequency] or [RPM].
Set smoothing.
Select
Hold This is enabled only when [Mode] is [Frequency] or [RPM].
Set hold for the frequency and summing.
Select
Selections Description
High Measures above the threshold value. (default setting)
Low Measures below the threshold value.
Selections Description
Off
The measured data is recorded as is. (A step waveform.)
(default setting)
On
The measured data is interpolated so that the waveform is smooth
and then it is output. (Further delayed from upper limit 10 kHz and
Off.)
Selections Description
Off
(1Hz/0.5Hz/
0.2Hz/0.1Hz)
When the frequency in the brackets is reached but not determined,
it is defined as a stopped item and the measurement value be-
comes 0 Hz (0 rpm). (default setting)
On The value defined last time is retained.
