12.2 Display Settings
205
12
Chapter 12 Memory Division Function

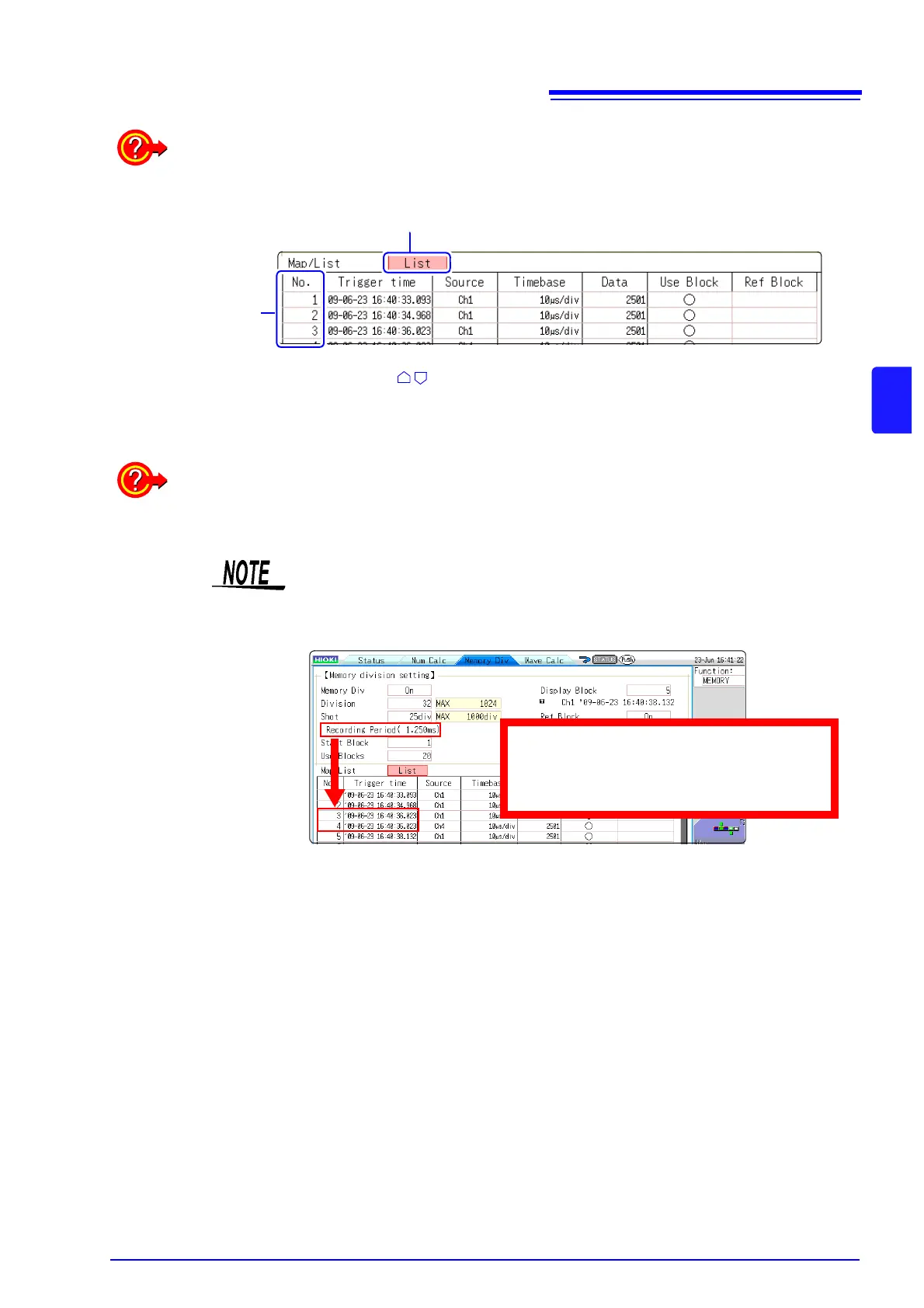

Getting Details on Each Block:
The trigger time and measurement status of each block can be viewed on the list.
Move the cursor to the [Map/List] , and select [List].
Block No.
A block can be selected by the CURSOR keys or F keys.
You can move the cursor to the Reference Block column to set a block’s on/off state as a Refer-
ence Block.
To switch block waveforms on the Waveform screen:
To be able to select the block you want to see, press the WAVE key at the Waveform screen and
switch Pos to Block.
See: "7.8 Seeing Block Waveforms" ( p.115)
• When displaying memory division blocks as a list, blocks may have the same
trigger times. This occurs because the minimum resolution of the clock used
by this unit is 1/128th of a second (7.8125 ms) and measurement occurs dur-
ing this interval.
• If triggers occur continuously within an interval shorter than 500 μs, the
displayed trigger time may indicate a time slower than reality.
Example:
The recording time is 1.25 ms and the trigger
times of No. 3 and No. 4 blocks may be the
same.
To Next Page
