15.6 USB Settings and Connection (Before Command Communications)

281

Chapter 15 Connection to a Computer

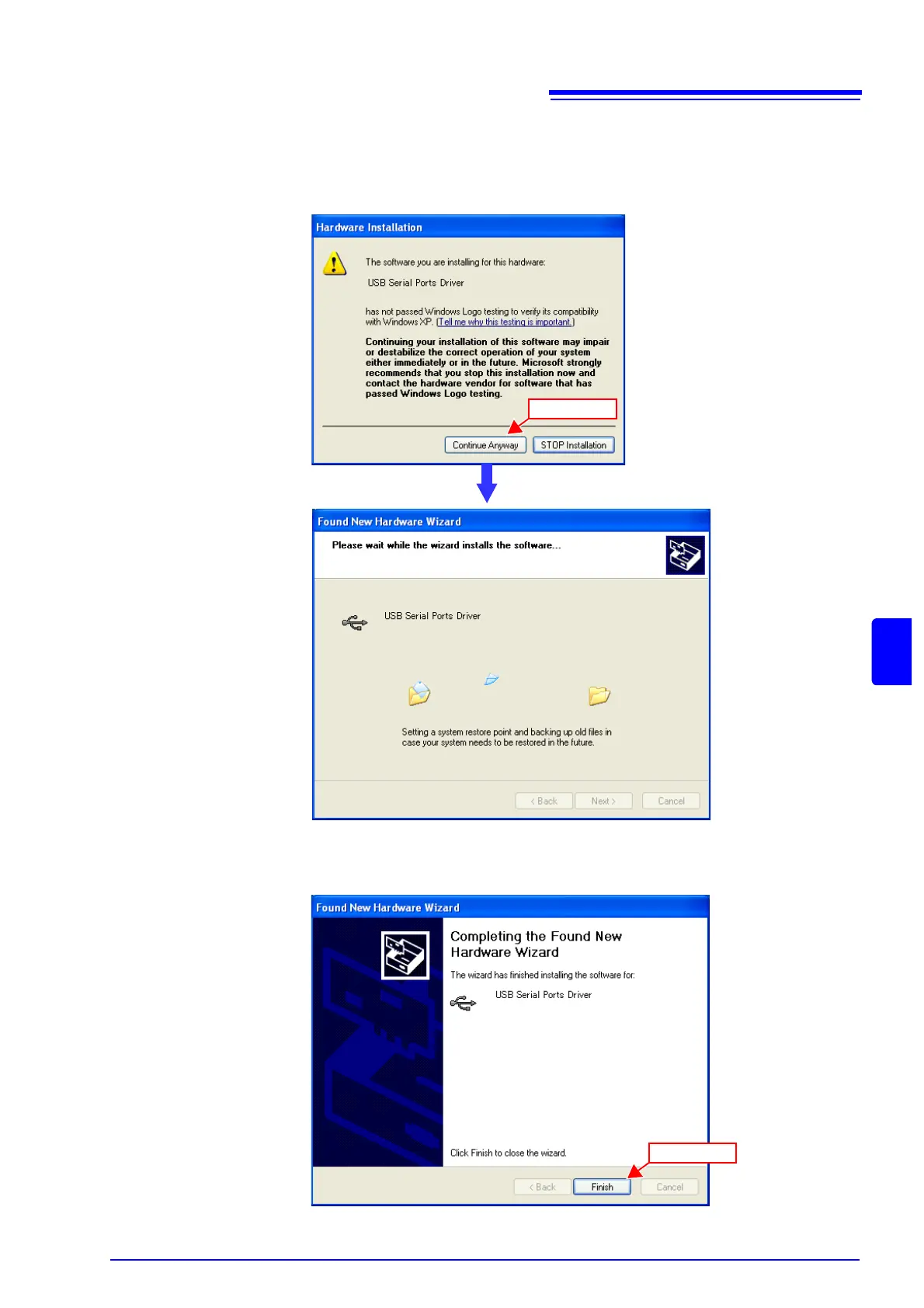

6. Click [Continue Anyway].

After Windows XP checks the software, it will display a warning stating that the

software has not been certified by Microsoft. Click [Continue Anyway].

Windows will begin copying the driver files.

7. When installation is complete, the next dialog will appear. Click [Finish].

This completes the USB driver installation.
