Hioki 8847 - Connect to LOGIC Terminals

2.2 Connecting Cords
27
2
Chapter 2 Measurement Preparations
Connect to the measurement object
Right Side

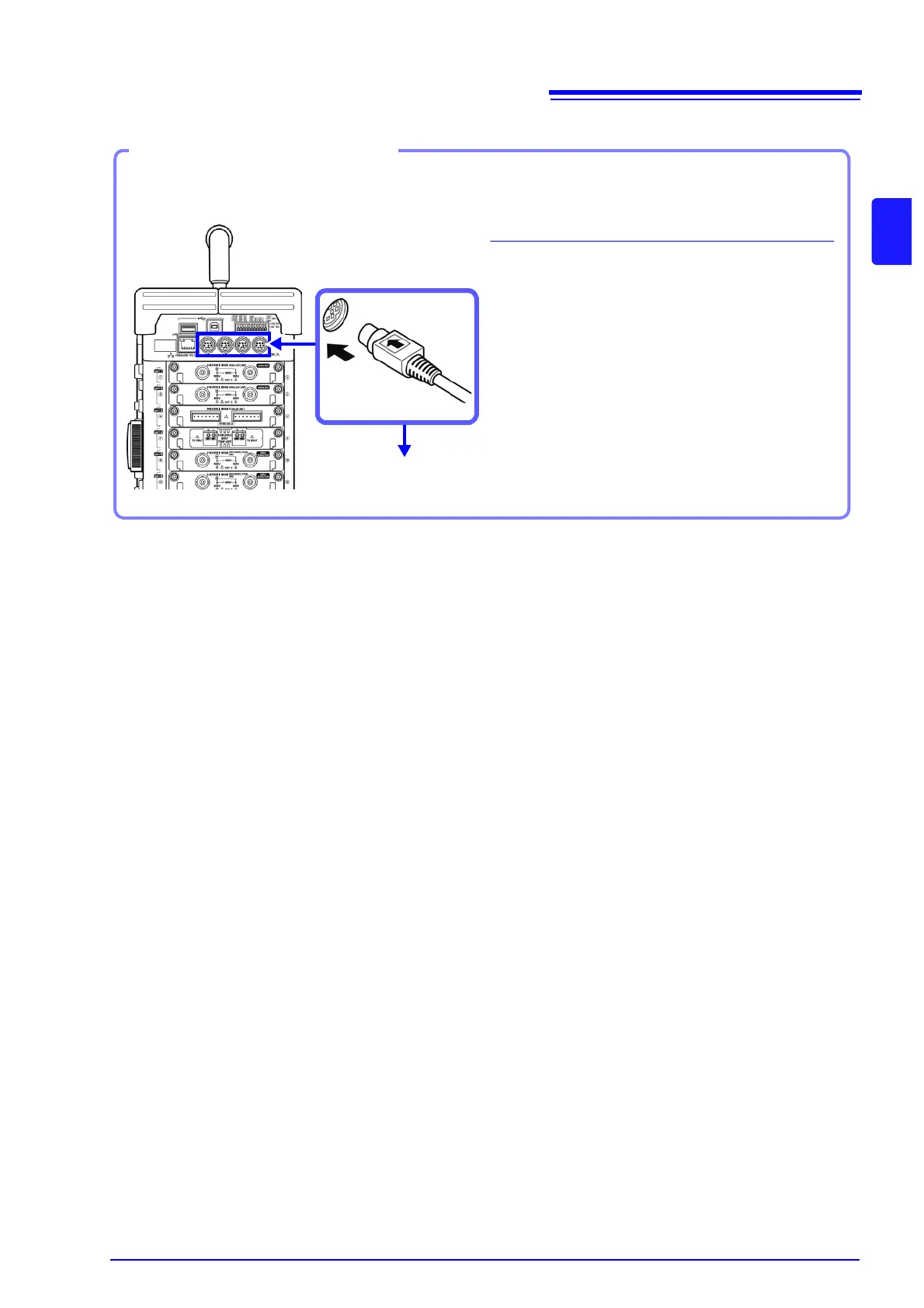

Example: Connecting the 9327 Logic Probe
1
Connect the logic probe by aligning the
groves on the plug and a LOGIC termi-
nal.
2
Connect to the measurement object.
Required item: 9327 Logic Probe
Connect to LOGIC Terminals
LOGIC terminals
2
1
