HP E4418B Programming Guide

prog.book : ch9sens.fm 27 Mon Feb 15 09:24:37 1999
SENSe Subsystem
[SENSe[1]]|SENSe2:CORRection:CFACtor|GAIN[1|2][:INPut][:MAGNitude]
HP E4418B/E4419B Programming Guide 9-27
Syntax
Parameters
Example
Reset Condition
On reset, CFACtor|GAIN1 is set to 100% and GAIN2 to 0.0 dB.
1. For example, a gain of 60% corresponds to a multiplier of 0.6 and a gain of 150%
corresponds to a multiplier of 1.5.
Item Description/Default Range of Values
numeric_value
(for CFACtor
and GAIN1)
A numeric value. The default value,
DEF, is 100%. The value for MIN is
1%. The value for MAX is 150%.
1 to 150PCT
1
DEF
MIN
MAX
numeric_value
(for GAIN2)
A numeric value. The default value,
DEF, is 0.00 dB. The value for MIN is
-100 dB. The value for MAX is
+100 dB.
-100 to +100 dB
DEF
MIN
MAX
SENS2:CORR:GAIN2 50 This command sets a channel
offset of 50 dB for channel B.

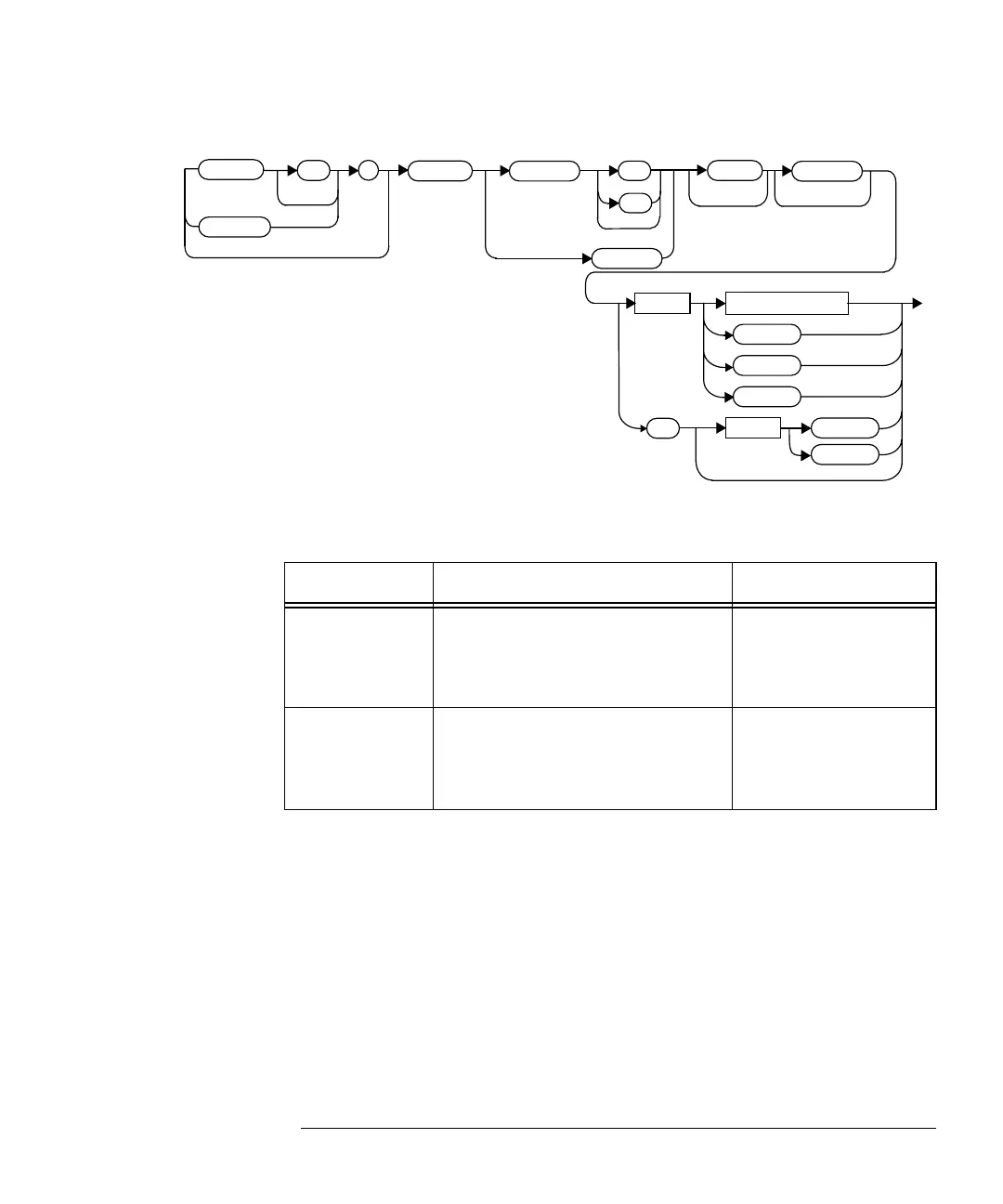

SENS
1
CORR
SENS2
:
:INP
:MAGN
Space
?
numeric_value
DEF
MIN
MAX
MIN
MAX
Space
:GAIN
1
:CFAC
2
