211
Server, PPPoEoA authentication server of public network, is used to authenticate user information
through CHAP.

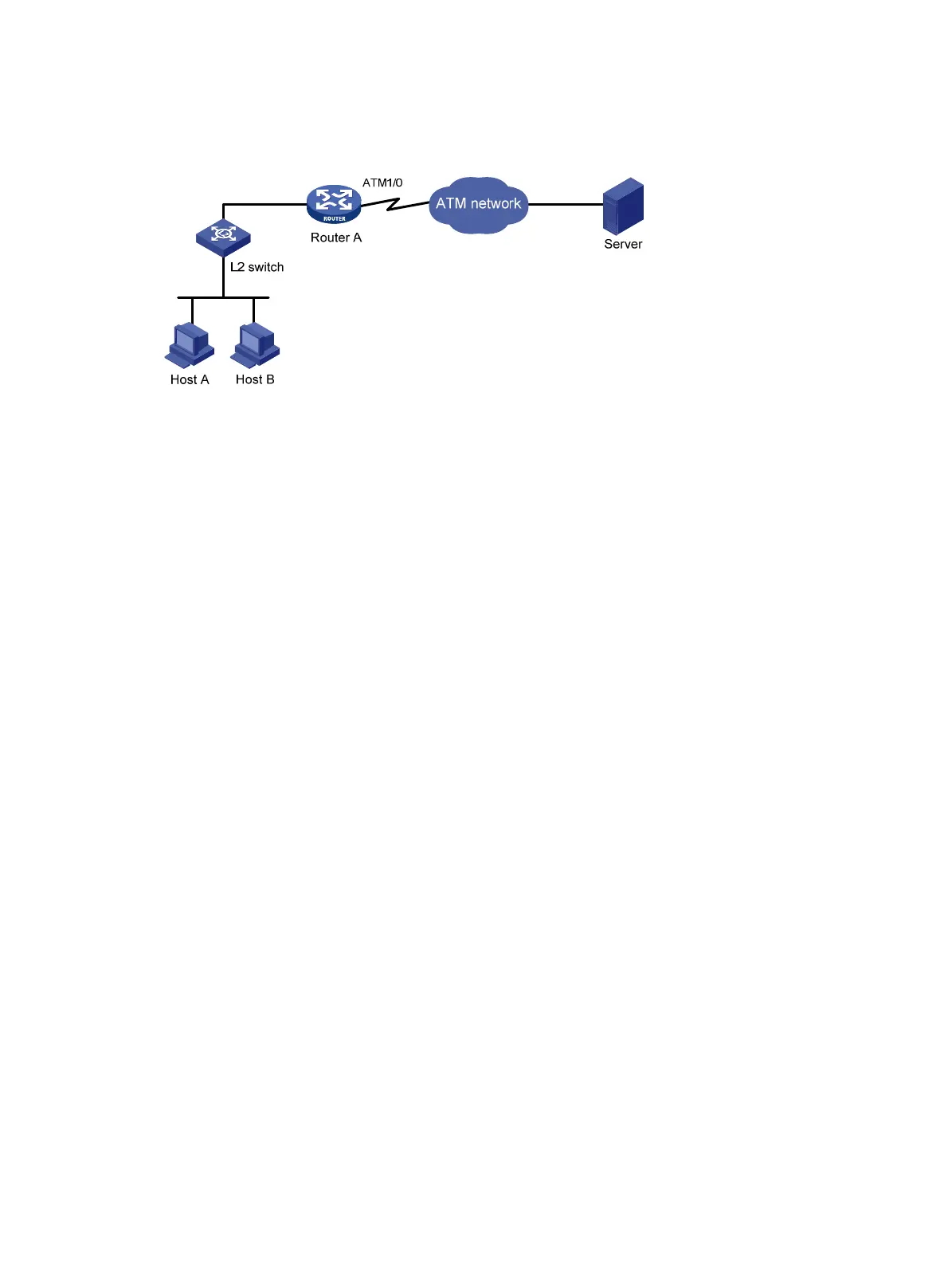

Figure 71 Network diagram
Configuration procedure
1. Configure Router A:
# Configure user name and password.
<RouterA> system-view
[RouterA] local-user Sysname
[RouterA-luser-Sysname] password simple hello
[RouterA-luser-Sysname] service-type ppp
[RouterA-luser-Sysname] quit
# Configure dialing access control list.
[RouterA] dialer-rule 10 ip permit
# Create dialer port and configure the dial-up and PPP authentication.
[RouterA] interface dialer0
[RouterA-Dialer0] link-protocol ppp
[RouterA-Dialer0] ppp chap password hello
[RouterA-Dialer0] ppp chap user user1
[RouterA-Dialer0] ip address ppp-negotiate
[RouterA-Dialer0] dialer user ABC
[RouterA-Dialer0] dialer-group 10
[RouterA-Dialer0] dialer bundle 12
[RouterA-Dialer0] quit
# Create a VE interface.
[RouterA] interface virtual-ethernet 2
[RouterA-Virtual-Ethernet2] quit
# Configure the ATM interface of ADSL card.
[RouterA] interface atm1/0
[RouterA-Atm1/0] pvc 0/32
[RouterA-atm-pvc-Atm1/0-0/32] map bridge virtual-ethernet 2
[RouterA-atm-pvc-Atm1/0-0/32] quit
# Configure a VE interface.
[RouterA] interface virtual-ethernet 2
[RouterA-Virtual-Ethernet2] pppoe-client dial-bundle-number 12
# Configure the default route.
[RouterA] ip route-static 0.0.0.0 0.0.0.0 Dialer 0
