[Router-Virtual-Template1] ip address 1.1.1.1 255.0.0.0

[Router-Virtual-Template1] quit

# Configure the PPPoE server on the Router.

[Router] interface ethernet 1/1

[Router-Ethernet1/1] pppoe-server bind virtual-template 1

[Router-Ethernet1/1] quit

# Configure local authentication for the users in the default ISP domain system.

[Router] domain system

[Router-isp-system] authentication ppp local

# Add a local IP address pool that contains nine IP addresses.

[Router-isp-system] ip pool 1 1.1.1.2 1.1.1.10

Verifying the configuration

After the configuration, Host A and Host B can access the Internet using the username user1 and

password pass1 through the Router if they have PPPoE client software installed.

If you specify the authentication scheme as radius-scheme or hwtacacs-scheme by using the

authentication ppp command, you must configure RADIUS/HWTACACS settings to enable AAA.

For more information, see HPE FlexNetwork MSR Router Series Comware 5 Security Configuration

Guide.

PPPoE client configuration example

Network requirements

As shown in Figure 13, configure the routers to make Router A authenticate Router B using PAP or

CHAP.

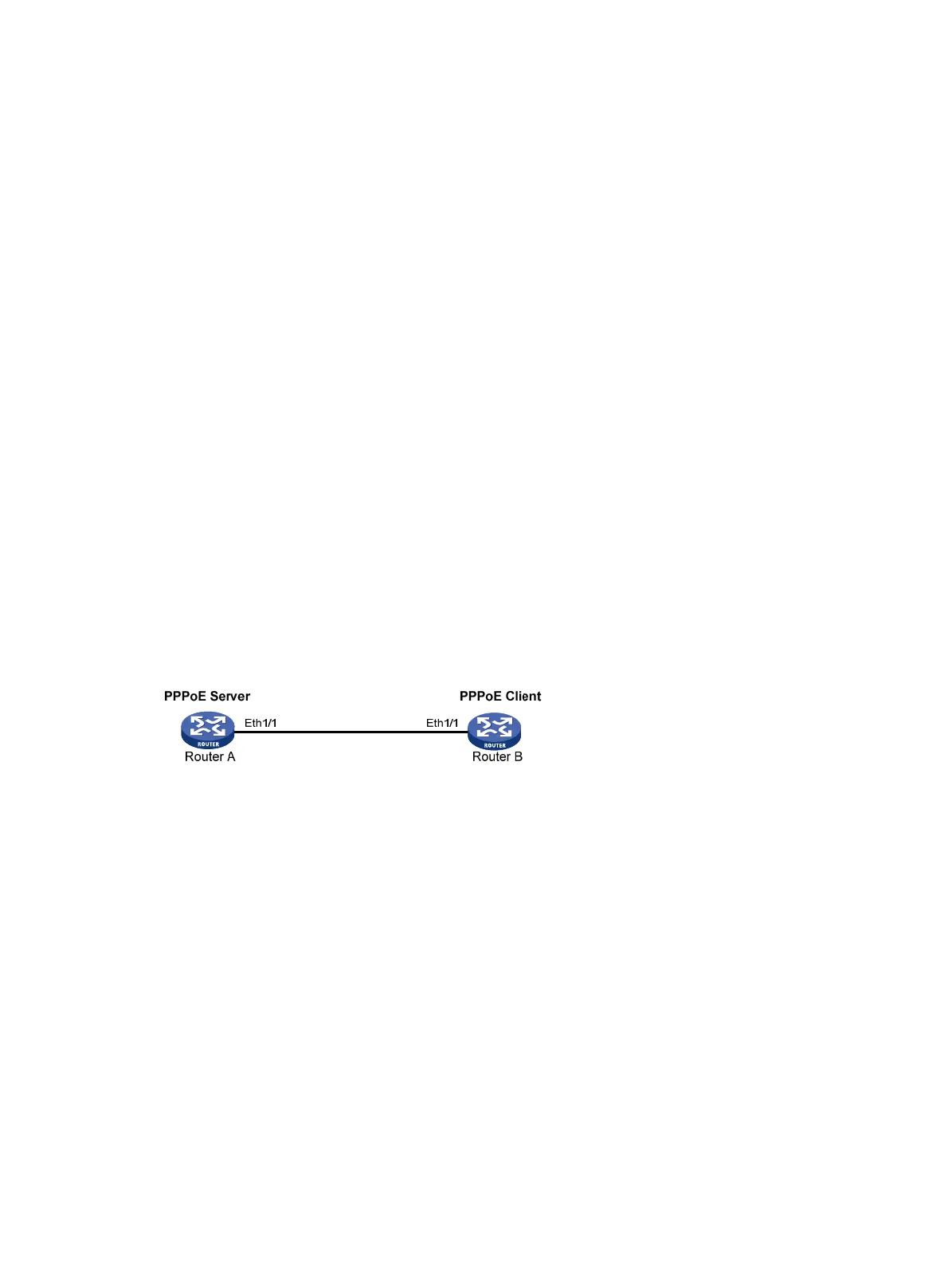

Figure 13 Network diagram

Configuring PAP authentication

1. Configure Router A as the PPPoE server:

# Add a PPPoE user.

<RouterA> system-view

[RouterA] local-user user2

[RouterA-luser-user2] password simple hello

[RouterA-luser-user2] service-type ppp

[RouterA-luser-user2] quit

# Configure virtual template 1.

[RouterA] interface virtual-template 1

[RouterA-Virtual-Template1] ppp authentication-mode pap

[RouterA-Virtual-Template1] ip address 1.1.1.1 255.0.0.0

[RouterA-Virtual-Template1] remote address 1.1.1.2

[RouterA-Virtual-Template1] quit

# Configure the PPPoE server.

[RouterA] interface ethernet 1/1

[RouterA-Ethernet1/1] pppoe-server bind virtual-template 1
