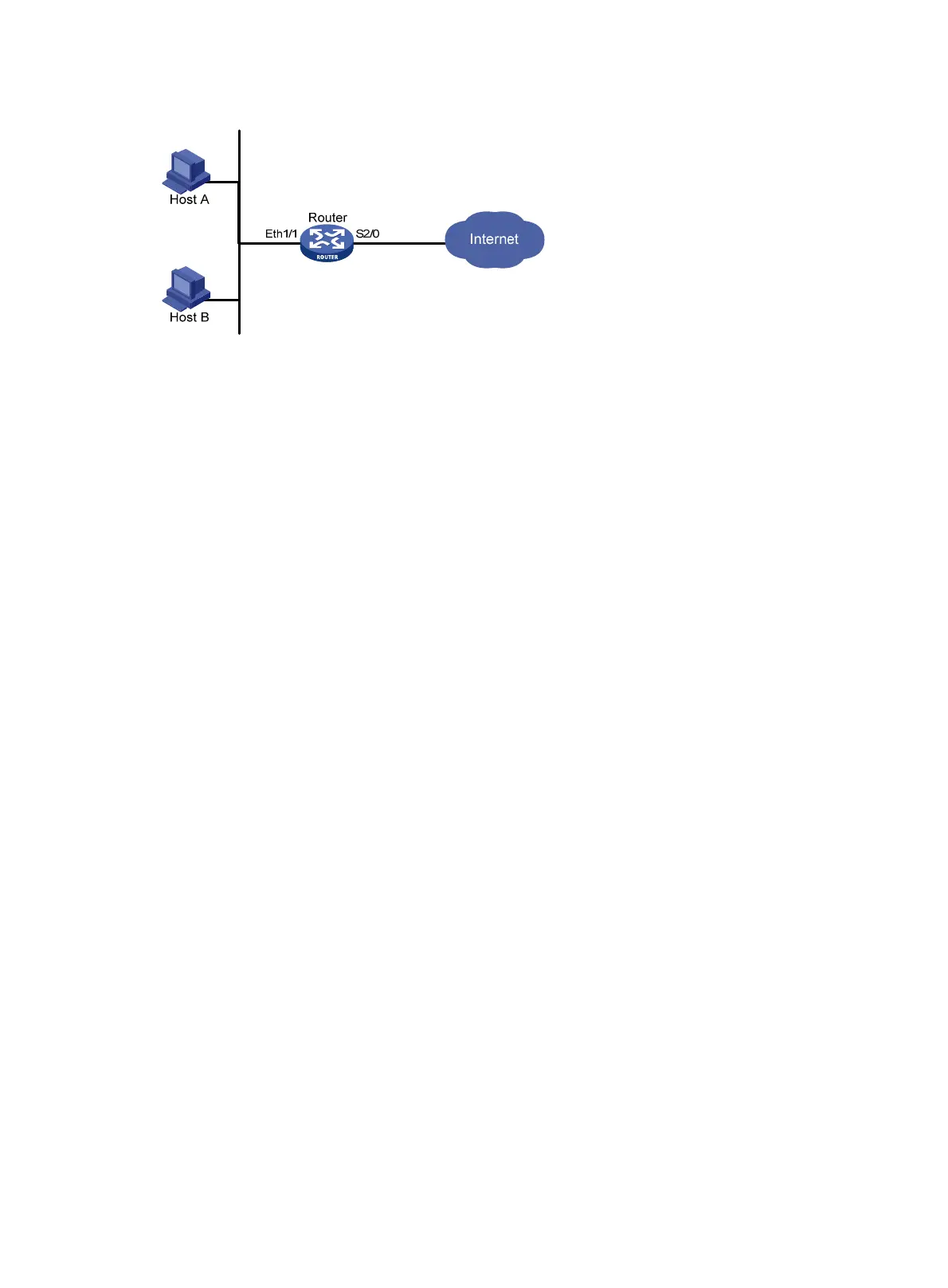

Figure 12 Network diagram

Configuration procedure

1. Configure CHAP authentication:

# Add a PPPoE user.

<Router> system-view

[Router] local-user user1

[Router-luser-user1] password simple pass1

[Router-luser-user1] service-type ppp

[Router-luser-user1] quit

# Configure virtual-template 1 on the Router.

[Router] interface virtual-template 1

[Router-Virtual-Template1] ppp authentication-mode chap domain system

[Router-Virtual-Template1] ppp chap user user1

[Router-Virtual-Template1] remote address pool 1

[Router-Virtual-Template1] ip address 1.1.1.1 255.0.0.0

[Router-Virtual-Template1] quit

# Configure PPPoE server on the Router.

[Router] interface ethernet 1/1

[Router-Ethernet1/1] pppoe-server bind virtual-template 1

[Router-Ethernet1/1] quit

# Configure local authentication for the users in the default ISP domain system.

[Router] domain system

[Router-isp-system] authentication ppp local

# Add a local IP address pool that contains nine IP addresses.

[Router-isp-system] ip pool 1 1.1.1.2 1.1.1.10

2. Configure MS-CHAP authentication:
