Configuration example for connecting a LAN to the Internet

using an ADSL modem

Network requirements

As shown in Figure 14:

• Router A provides Internet access for Host A, Host B, and Host C. It connects to DSLAM

through an ADSL modem and a permanent PPPoE session.

• The username and password of the ADSL account are user1 and 123456.

• Router A operates as a PPPoE client, allowing the hosts in the LAN to access the Internet

without PPPoE client software.

• Router B operates as the PPPoE server. It is connected to the DSLAM through interface ATM

1/0 and performs RADIUS authentication and accounting.

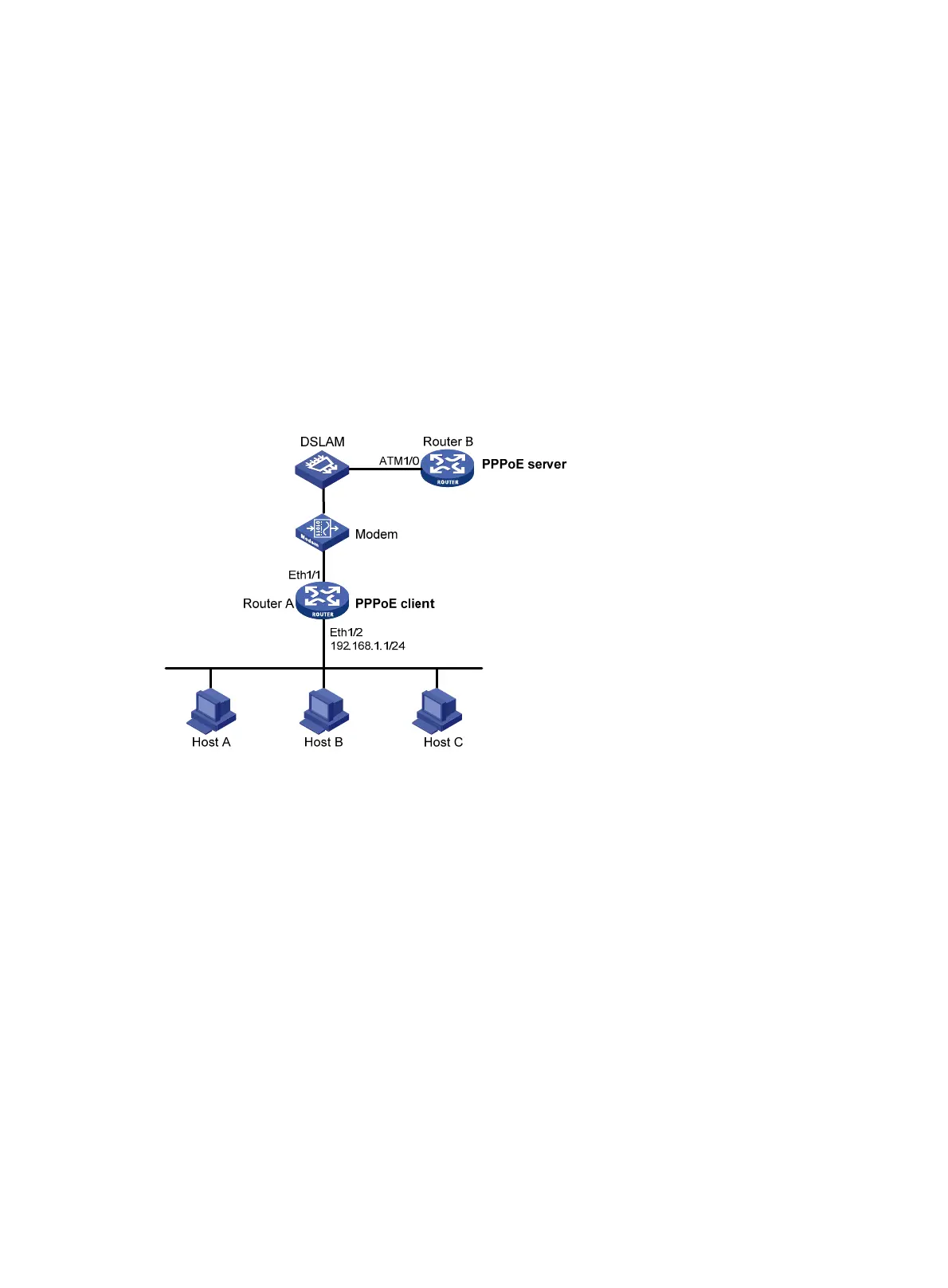

Figure 14 Network diagram

Configuration procedure

1. Configure Router A as a PPPoE client:

# Configure a dialer interface.

<RouterA> system-view

[RouterA] dialer-rule 1 ip permit

[RouterA] interface dialer 1

[RouterA-Dialer1] dialer-group 1

[RouterA-Dialer1] dialer bundle 1

[RouterA-Dialer1] ip address ppp-negotiate

[RouterA-Dialer1] ppp pap local-user user1 password cipher 123456

[RouterA-Dialer1] quit

# Configure a PPPoE session.

[RouterA] interface ethernet 1/1

[RouterA-Ethernet1/1] pppoe-client dial-bundle-number 1

[RouterA-Ethernet1/1] quit

# Configure an Internet interface for the LAN and configure the default route.

[RouterA] interface ethernet 1/2
