160

[RouterC-Dialer0] ppp authentication-mode pap

[RouterC-Dialer0] ppp pap local-user userc password simple userc

[RouterC-Dialer0] quit

# Configure information for PPP authentication on interface BRI 1/0 and assign the interface

to dialer bundle 1.

[RouterC] interface bri 1/0

[RouterC-Bri1/0] dialer bundle-member 1

[RouterC-Bri1/0] link-protocol ppp

[RouterC-Bri1/0] ppp authentication-mode pap

[RouterC-Bri1/0] ppp pap local-user usera password simple usera

Configuration example for RS-DCC with MP

Network requirements

As shown in Figure 51:

• Two ISDN BRI interfaces on Router A and an ISDN PRI interface on Router B are connected

across ISDN.

• Interface Dialer0 on Router A is assigned an IP address 100.1.1.1/24, and interface Dialer0 on

Router B is assigned an IP address 100.1.1.2/24.

Use RS-DCC on Router A to call Router B and C-DCC on Router B to call Router A. In addition,

implement traffic distribution for the two interfaces on Router A by setting traffic thresholds and

maximum bandwidth.

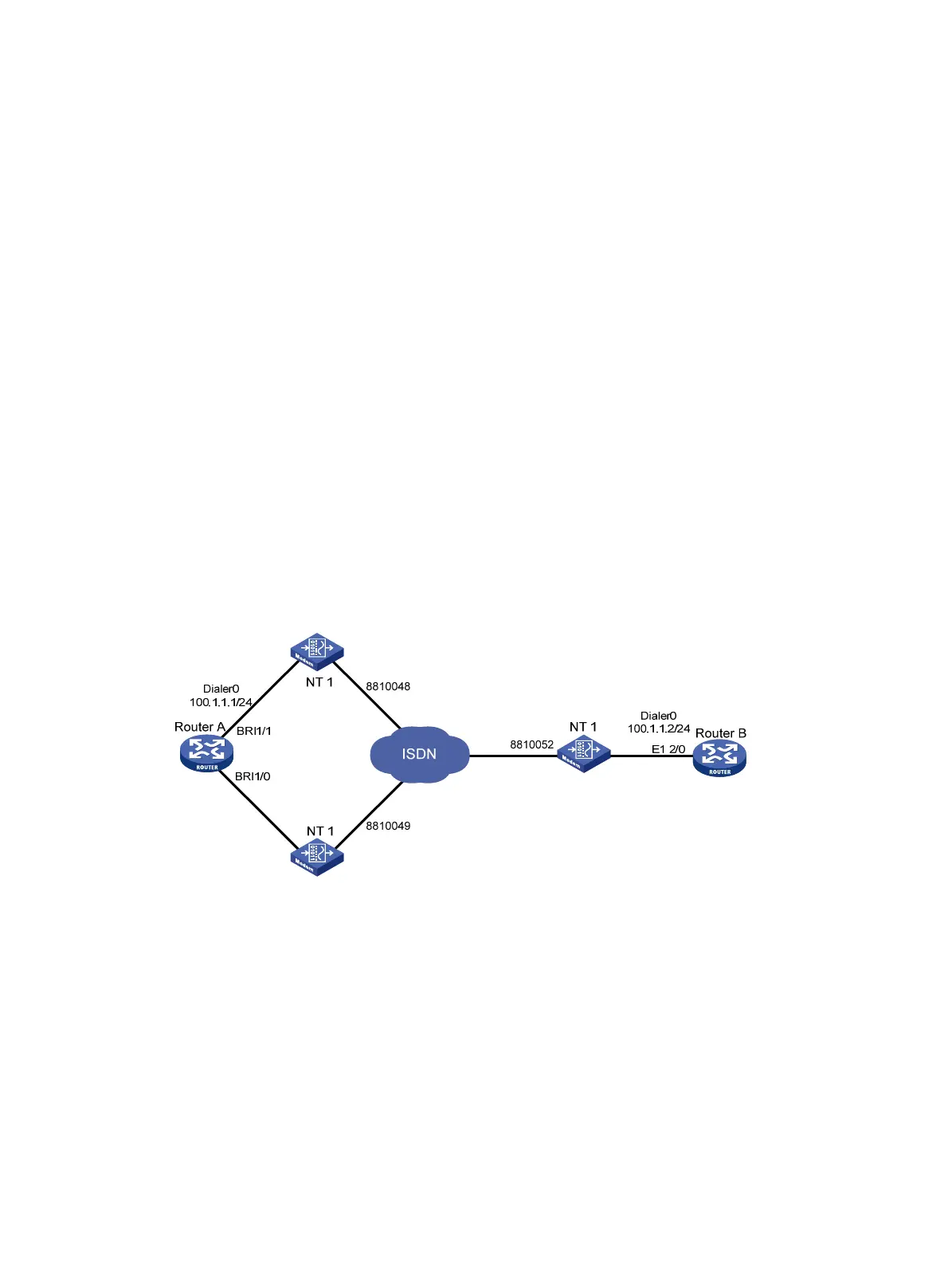

Figure 51 Network diagram

Configuration procedure

1. Configure Router A:

# Configure a dial access control rule for dialer access group 1. Create a local user account

userb for Router B and configure PPP authentication for it, and set the traffic statistics

collecting interval to 3 seconds for DCC.

<RouterA> system-view

[RouterA] dialer-rule 1 ip permit

[RouterA] local-user userb

[RouterA-luser-userb] password simple userb

[RouterA-luser-userb] service-type ppp

[RouterA-luser-userb] quit

[RouterA] dialer flow-interval 3
