276
LocalSID RemoteSID LocalTID
8279 6822 1
# On the LNS, perform the display l2tp tunnel command to view the established L2TP tunnel.
[LNS] display l2tp tunnel
Total tunnel = 1
LocalTID RemoteTID RemoteAddress Port Sessions RemoteName
1 1 3.3.3.1 1701 1 LAC
# On the LNS, you should be able to ping 10.2.0.1, a private network address on the LAC side.
This indicates that hosts on 10.2.0.0/16 and those on 10.1.0.0/16 can communicate with each
other through the L2TP tunnel.
[LNS] ping -a 10.1.0.1 10.2.0.1
PING 10.2.0.1: 56 data bytes, press CTRL_C to break
Reply from 10.2.0.1: bytes=56 Sequence=1 ttl=255 time=2 ms
Reply from 10.2.0.1: bytes=56 Sequence=2 ttl=255 time=2 ms
Reply from 10.2.0.1: bytes=56 Sequence=3 ttl=255 time=2 ms
Reply from 10.2.0.1: bytes=56 Sequence=4 ttl=255 time=2 ms
Reply from 10.2.0.1: bytes=56 Sequence=5 ttl=255 time=2 ms
--- 10.2.0.1 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 2/2/2 ms
Configuration example for L2TP multi-domain application
Network requirements

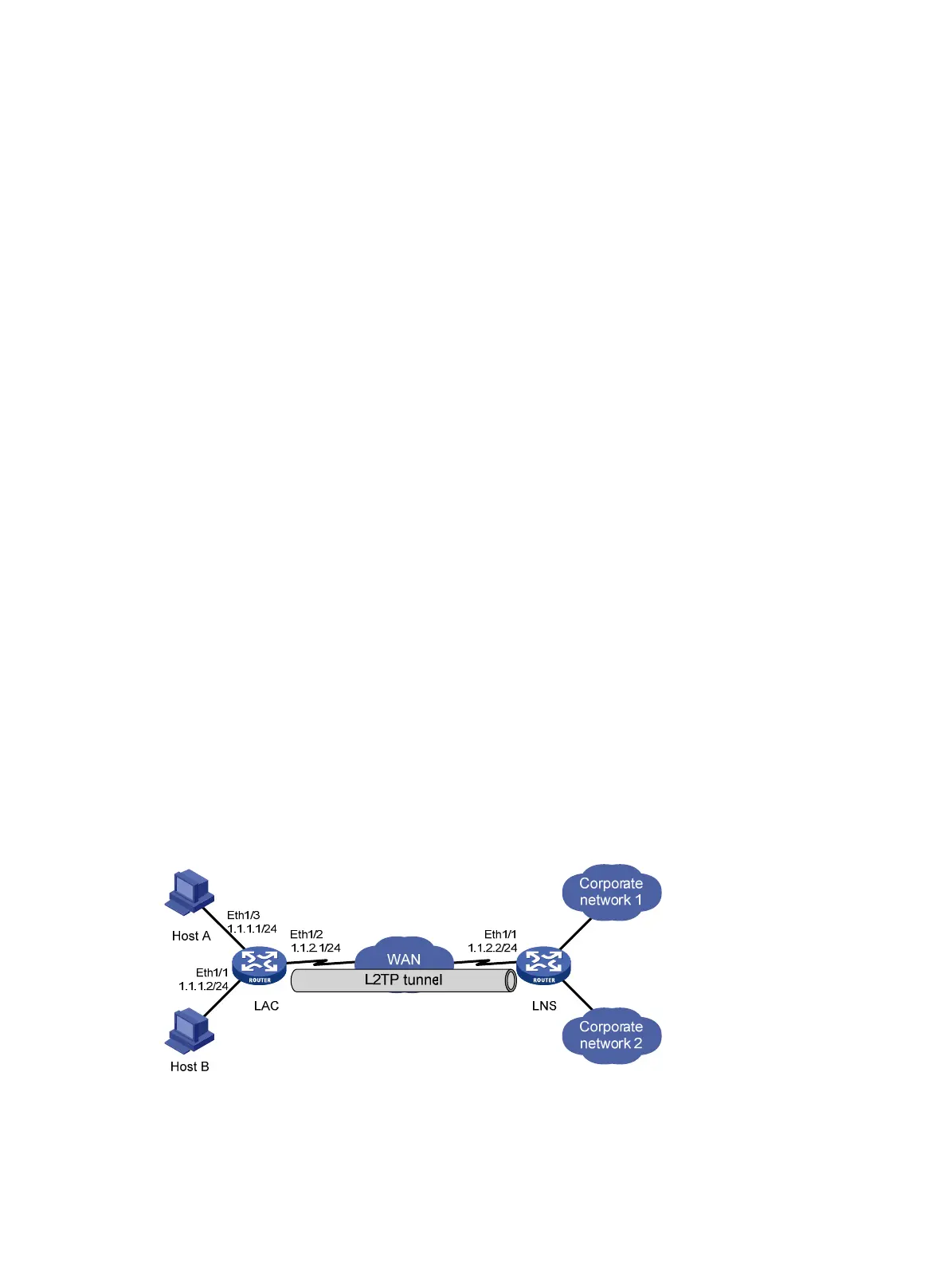

As shown in Figure 99, multiple enterprises share an LNS and use the same tunnel name for the LAC
end. Users of different enterprises access their corporate servers through L2TP VPDNs.
Host A is a user from enterprise 1, which has the domain name aaa.net.
Host B is a user from enterprise 2, which has the domain name bbb.net.
Figure 99 Network diagram
Configuration procedure
1. Configure the LAC:
