Configuration example for transparent bridging over PPP
Network requirements
As shown in Figure 109, two LAN segments, LAN 1 and LAN 2, are attached to Router A and Router
B, respectively, which are interconnected over PPP. Configure the two routers to enable transparent
bridging over PPP between the two LAN segments.

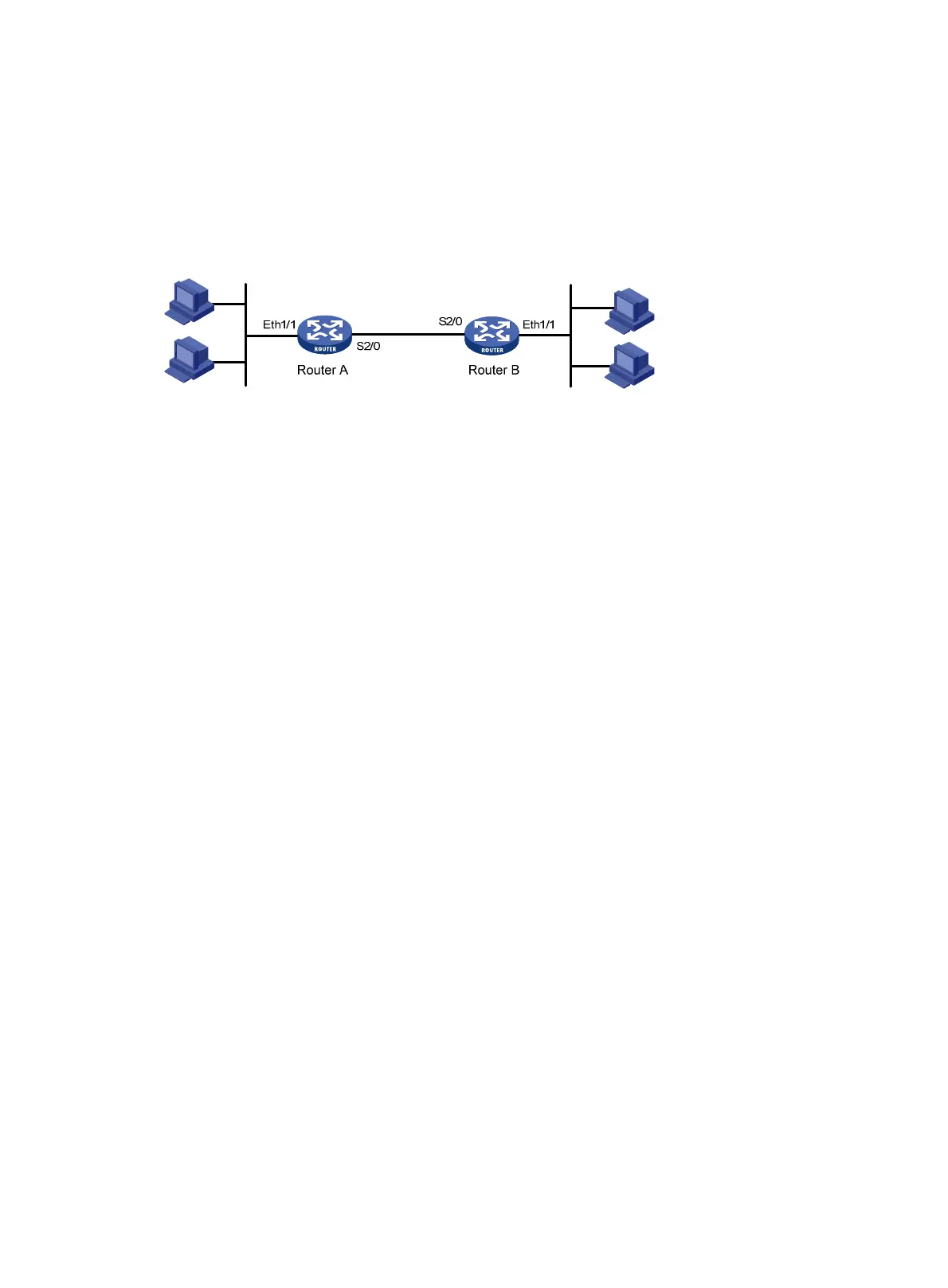

Figure 109 Network diagram
Configuration procedure
1. Configure Router A:
<RouterA> system-view
[RouterA] bridge enable
[RouterA] bridge 1 enable
[RouterA] interface ethernet 1/1
[RouterA-Ethernet1/1] bridge-set 1
[RouterA-Ethernet1/1] quit
[RouterA] interface serial 2/0
[RouterA-Serial2/0] link-protocol ppp
[RouterA-Serial2/0] bridge-set 1
2. Configure Router B:
<RouterB> system-view
[RouterB] bridge enable
[RouterB] bridge 1 enable
[RouterB] interface ethernet 1/1
[RouterB-Ethernet1/1] bridge-set 1
[RouterB-Ethernet1/1] quit
[RouterB] interface Serial 2/0
[RouterB-Serial2/0] link-protocol ppp
[RouterB-Serial2/0] bridge-set 1
Configuration example for transparent bridging over MP
Network requirements
As shown in Figure 110, two LAN segments, LAN 1 and LAN 2, are attached to Router A and Router
B, respectively, which are interconnected over MP. Configure the two routers to enable transparent
bridging over MP between the two LAN segments.
LAN 1
LAN 2
