299

Configuration procedure

1. Configure Router A:

<RouterA> system-view

[RouterA] bridge enable

[RouterA] bridge 1 enable

[RouterA] interface ethernet 1/1

[RouterA-Ethernet1/1] bridge-set 1

[RouterA-Ethernet1/1] quit

[RouterA] interface serial 2/0

[RouterA-Serial2/0] link-protocol hdlc

[RouterA-Serial2/0] bridge-set 1

2. Configure Router B:

<RouterB> system-view

[RouterB] bridge enable

[RouterB] bridge 1 enable

[RouterB] interface ethernet 1/1

[RouterB-Ethernet1/1] bridge-set 1

[RouterB-Ethernet1/1] quit

[RouterB] interface Serial 2/0

[RouterB-Serial2/0] link-protocol hdlc

[RouterB-Serial2/0] bridge-set 1

Configuration example for bridging with FR sub-interface

support

Network requirements

As shown in Figure 114 , Router A and Router B are interconnected through an FR link.

Enable bridging on the FR subinterfaces Serial 2/0.1 and Serial 2/0.2 so traffic between Host A and

Host B can be bridged through bridge set 1 and traffic between Host C and Host D can be bridged

through bridge set 2.

In this example, Router B is a DCE device.

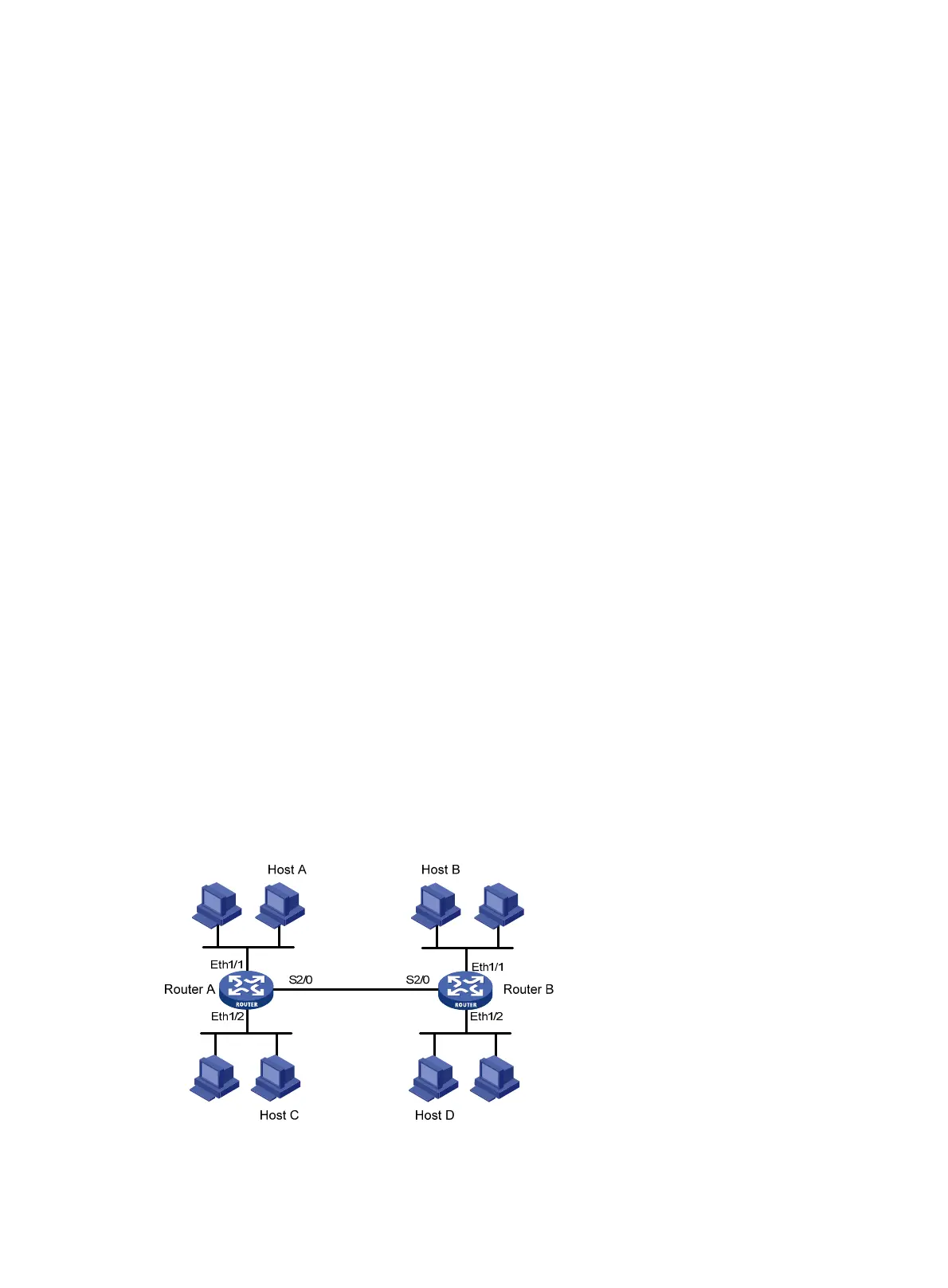

Figure 114 Network diagram
