However, you must configure the same DLCI on both the DCE and DTE sides by using the fr dlci

command. This is an alternative method of configuring bridging over FR. For more information about

frame relay, see "Configuring frame relay."

Bridge routing configuration example

Network requirements

As shown in Figure 115 , Ethernet 1/1 and Ethernet 1/2 belong to the same bridge set.

Configure bridge routing so traffic passing each interface in the bridge set can be routed.

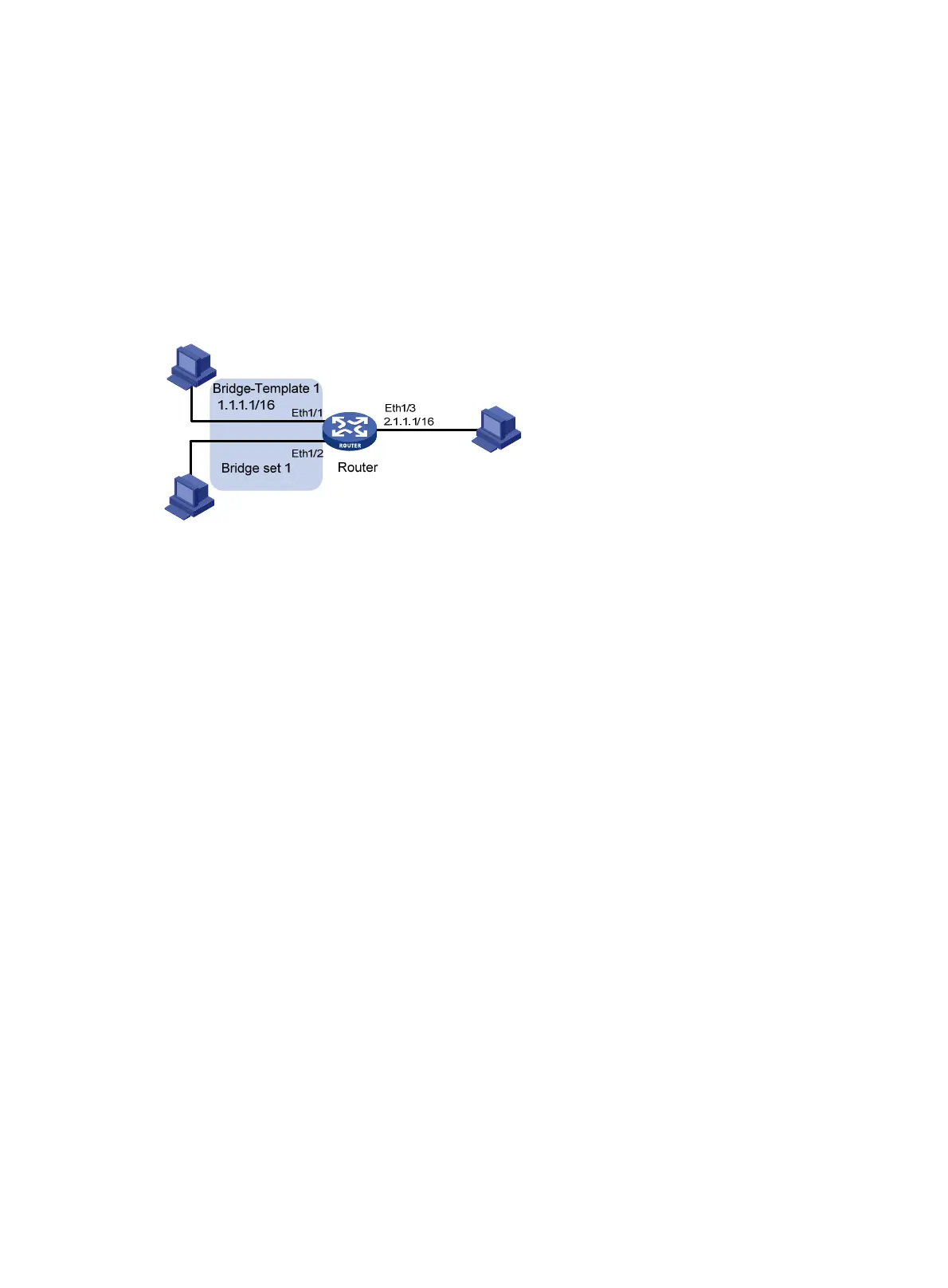

Figure 115 Network diagram

Configuration procedure

<Router> system-view

[Router] bridge enable

[Router] bridge routing-enable

[Router] bridge 1 enable

[Router] bridge 1 routing ip

[Router] interface ethernet 1/1

[Router-Ethernet1/1] bridge-set 1

[Router-Ethernet1/1] quit

[Router] interface ethernet 1/2

[Router-Ethernet1/2] bridge-set 1

[Router-Ethernet1/2] quit

[Router] interface bridge-template 1

[Router-Bridge-template1] ip address 1.1.1.1 255.255.0.0

[Router-Bridge-template1] quit

[Router] interface ethernet 1/3

[Router-Ethernet1/3] ip address 2.1.1.1 255.255.0.0

Configuration example for bridging over dialer interface

Network requirements

As shown in Figure 116 , Router A and Router B are interconnected through an ISDN link.

Configure the two routers to enable transparent bridging over dialer interfaces between the two LAN

segments.
