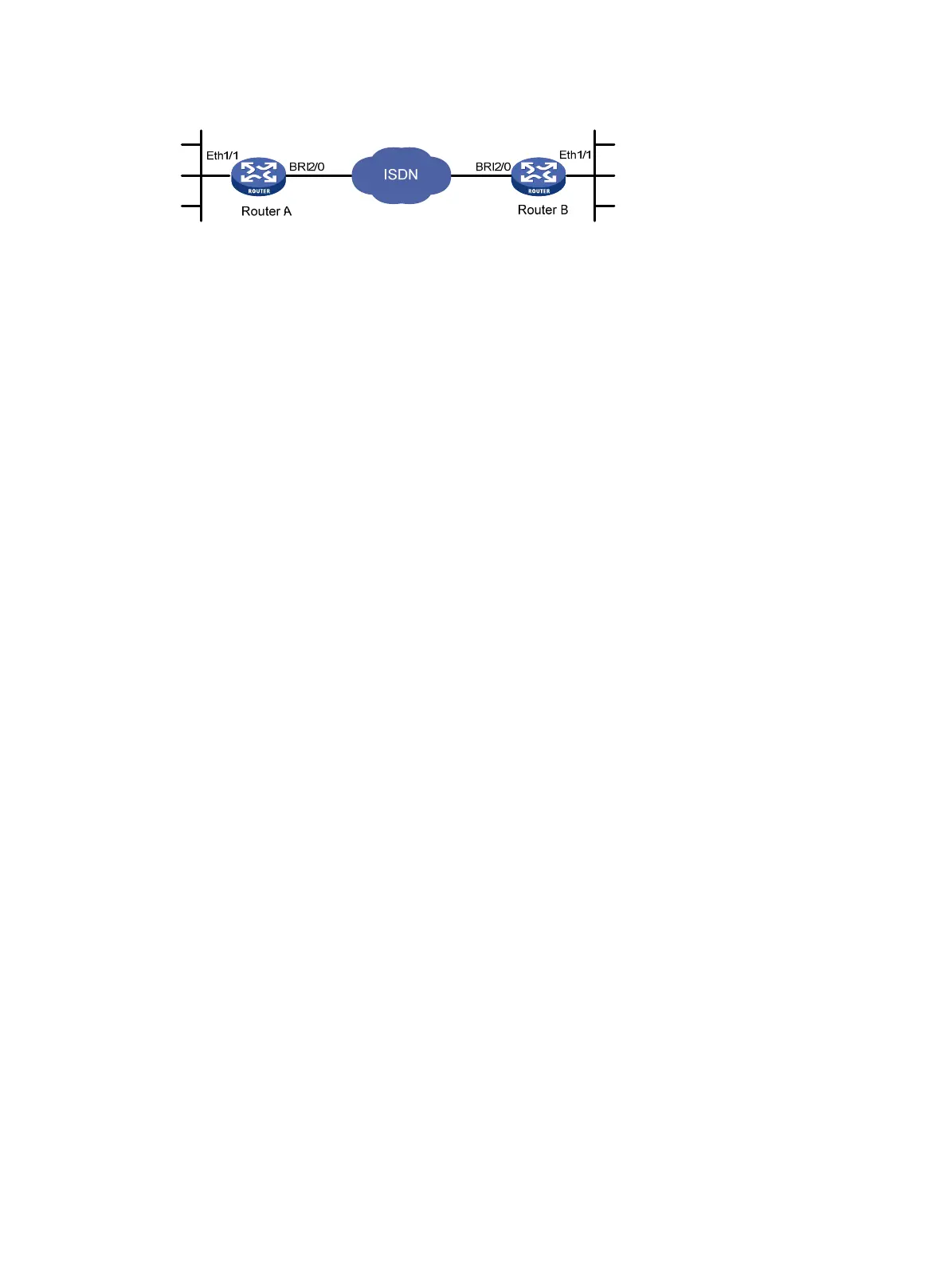

Figure 116 Network diagram
Configuration procedure
1. Configure Router A:
# Enable bridging globally.
[RouterA] bridge enable
[RouterA] bridge 1 enable
# Configure a dialup access control list.
[RouterA] dialer-rule 1 bridge permit
# Configure dialing on the ISDN BRI interface BRI 2/0.
[RouterA] interface bri2/0
[RouterA-Bri2/0] link-protocol ppp
[RouterA-Bri2/0] dialer enable-circular
[RouterA-Bri2/0] dialer-group 1
[RouterA-Bri2/0] dialer circular-group 2
[RouterA-Bri2/0] quit
# Add Dialer 2 to bridge set 1.
[RouterA] interface dialer2
[RouterA-Dialer2] link-protocol ppp
[RouterA-Dialer2] bridge-set 1
[RouterA-Dialer2] dialer enable-circular
[RouterA-Dialer2] dialer-group 1
[RouterA-Dialer2] dialer number 660208
[RouterA-Dialer2] quit
# Add Ethernet 1/1 to bridge set 1.
[RouterA] interface ethernet1/1
[RouterA-Ethernet1/1] bridge-set 1
2. Configure Router B:
# Enable bridging globally.
[RouterB] bridge enable
[RouterB] bridge 1 enable
# Configure a dialup access control list.
[RouterB] dialer-rule 1 bridge permit
# Configure dialing on the ISDN BRI interface BRI 2/0.
[RouterB] interface bri2/0
[RouterB-Bri2/0] link-protocol ppp
[RouterB-Bri2/0] dialer enable-circular
[RouterB-Bri2/0] dialer-group 1
[RouterB-Bri2/0] dialer circular-group 2
[RouterB-Bri2/0] quit
# Add Dialer 2 to bridge set 1.
[RouterB] interface dialer2
LAN 1
LAN 2
