Task Command Remarks

Clear statistics for

bridge-template interfaces.

reset counters interface

[

bridge-template

[ interface-number ] ]

Available in user view.

Transparent bridging configuration examples

Configuration example for transparent bridging over ATM

Network requirements

As shown in Figure 108, two LAN segments, LAN 1 and LAN 2, are attached to Router A and Router

B, respectively, which are interconnected through their respective ATM interfaces. Configure the two

routers to enable transparent bridging over ATM between the two LAN segments.

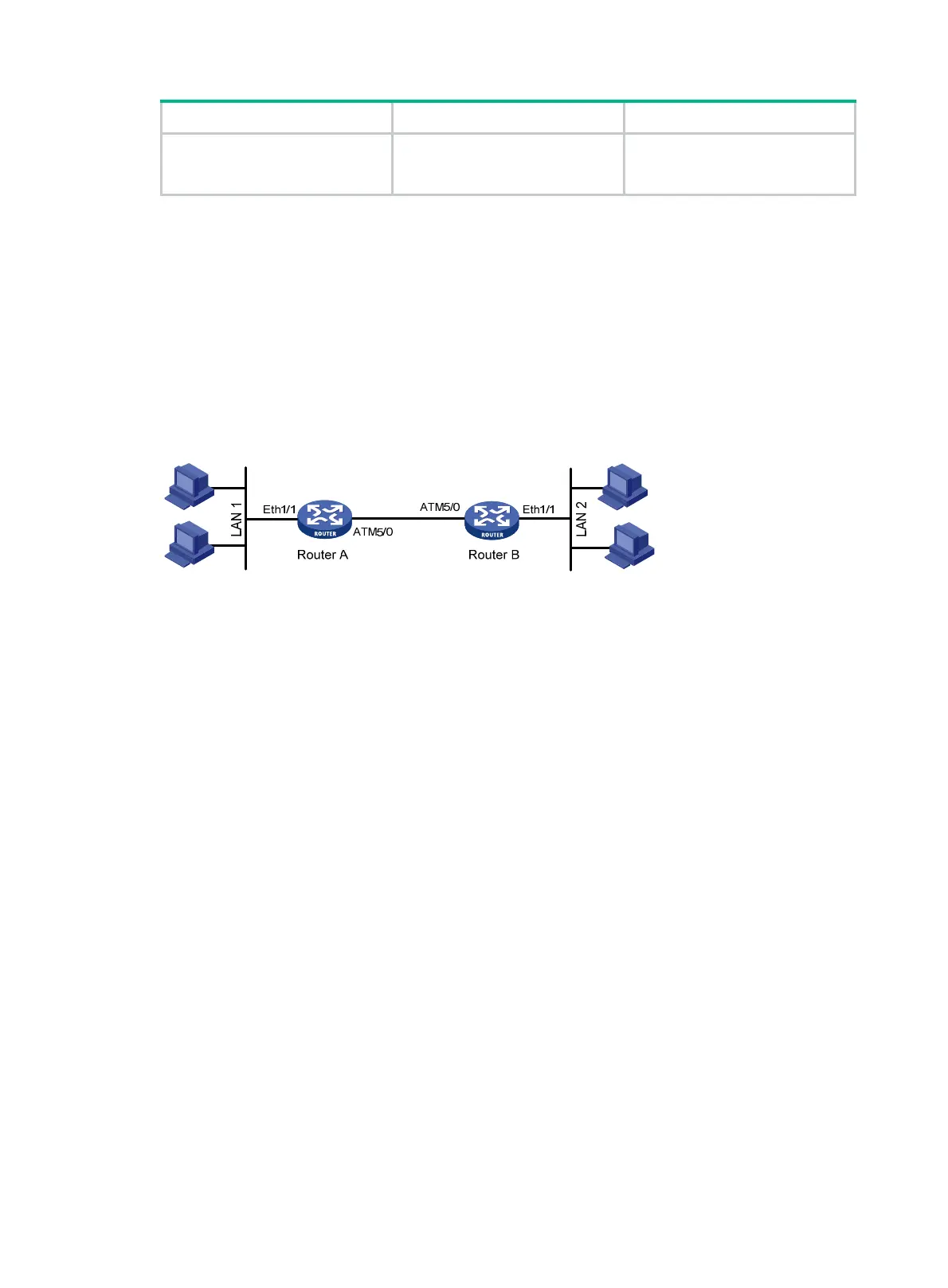

Figure 108 Network diagram

Configuration procedure

1. Configure Router A:

[RouterA] bridge enable

[RouterA] bridge 1 enable

[RouterA] interface ethernet 1/1

[RouterA-Ethernet1/1] bridge-set 1

[RouterA-Ethernet1/1] interface atm 5/0

[RouterA-Atm5/0] pvc 32/50

[RouterA-atm-pvc-Atm5/0-32/50] map bridge-group broadcast

[RouterA-atm-pvc-Atm5/0-32/50] quit

[RouterA-Atm5/0] bridge-set 1

2. Configure Router B:

[RouterB] bridge enable

[RouterB ]bridge 1 enable

[RouterB] interface ethernet 1/1

[RouterB-Ethernet1/1] bridge-set 1

[RouterB-Ethernet1/1] interface atm 5/0

[RouterB-Atm5/0] pvc 32/50

[RouterB-atm-pvc-Atm5/0-32/50] map bridge-group broadcast

[RouterB-atm-pvc-Atm5/0-32/50] quit

[RouterB-Atm5/0] bridge-set 1
