Configuring an interface to receive calls from multiple remote
ends
In Figure 43, an interface at the local end receives calls from multiple remote ends (the components
in inverse color represent the routers irrelevant to the networking).

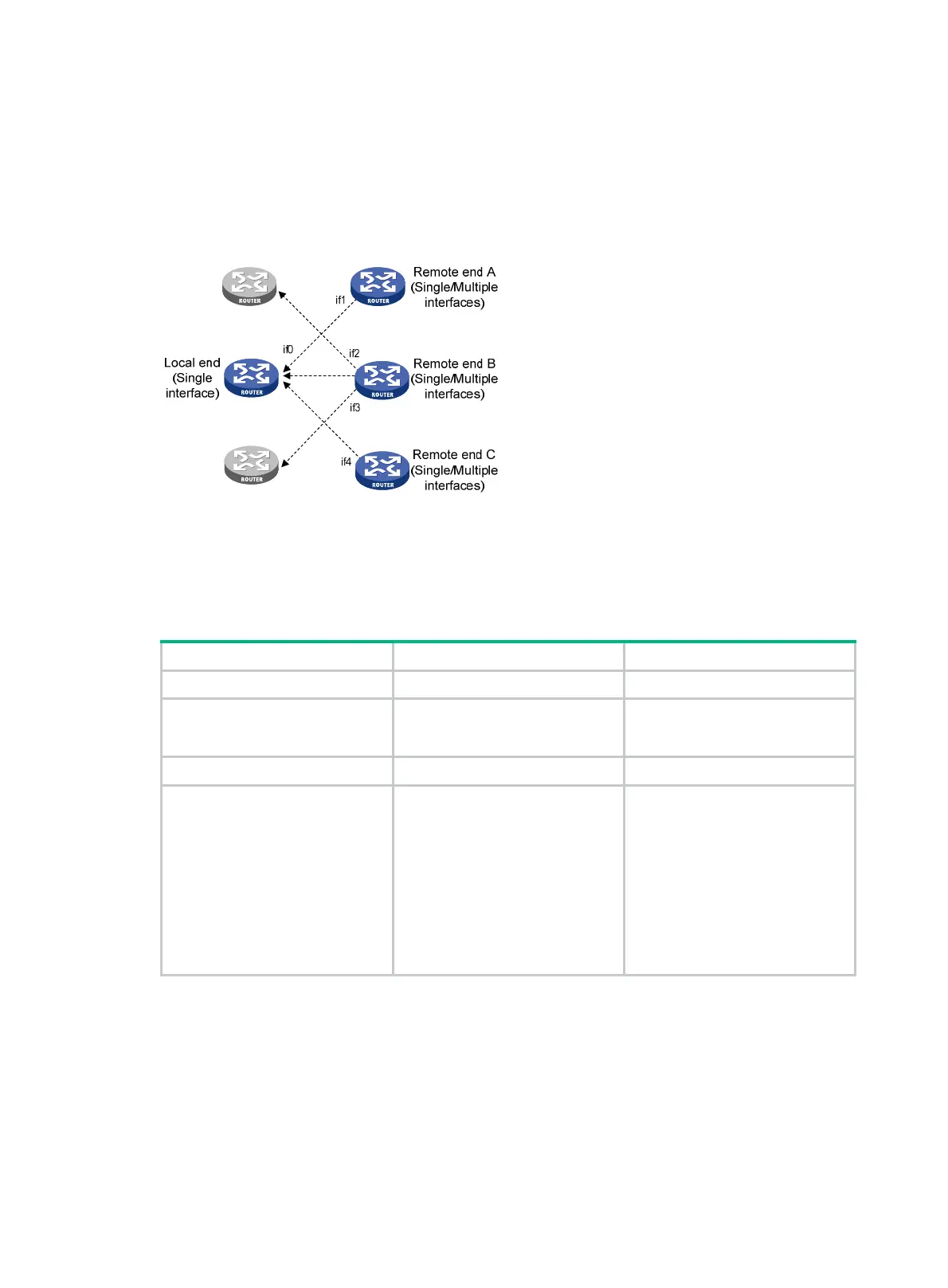

Figure 43 Network diagram
In this scenario, a single local interface if0 receives DCC calls from multiple remote interfaces
including if1, if2, if3, and if4. Because only one interface is involved at the local end, you can
configure DCC parameters for the interface by configuring a dialer circular group. In addition, you
can configure PAP or CHAP authentication.
To configure an interface to receive calls from multiple remote ends:
Step Command Remarks
1. Enter system view.
system-view
N/A
2. Enter dialup interface
(physical or dialer interface)
view.
interface
interface-type
interface-number
N/A
3. Enable C-DCC.
dialer enable-circular
By default, C-DCC is disabled.
4. Configure the interface to
receive calls from a remote
end.
dialer route
protocol
next-hop-address [
mask
network-mask-length ] [
user
hostname |
broadcast
] *
Optional.
If the
dialer route ip
next-hop-address
user
hostname
command is configured at a called
end, the called party will use the
specified next hop address and
hostname to authenticate the
calling party.
Repeat this step if multiple remote
ends are involved.
Configuring multiple interfaces to place calls to one or
multiple remote ends
In Figure 44, multiple interfaces at the local end place calls to one or multiple remote ends (the
components in inverse color represent the routers irrelevant to the networking).
