Step Command Remarks
13. Map the frame relay
DLCI to the PPPoFR
virtual template.
fr map ppp
dlci-number
interface
virtual-template
interface-number
N/A
14. Return to system view.
quit
In system view, repeat steps 6 to
13 to configure multiple PPPoFR
virtual templates.
MPoFR configuration example
Network requirements
As shown in Figure 37, the ATM backbone network uses FR network as the access network to
support transmitting traffic of multiple services. A single virtual circuit of an FR link can transport
multiple kinds of service data.
The bandwidth of Router A Serial2/0 is 64 kbps. Host A sends data traffic stream 1 to Host C, Host B
sends data traffic stream 2 to Host D, and a voice service stream exists between Router A and
Telephone A.
The bandwidth of Router B Serial2/0 is 64 kbps. Host C sends data traffic stream 3 to Host A, Host D
sends data traffic stream 4 to Host B, and a voice service stream exists between Router B and
Telephone B.
To ensure voice quality, fragment the data packets to reduce voice jitter caused by transmission
delay. MPoFR is used here, and MP is used to fragment data packets.

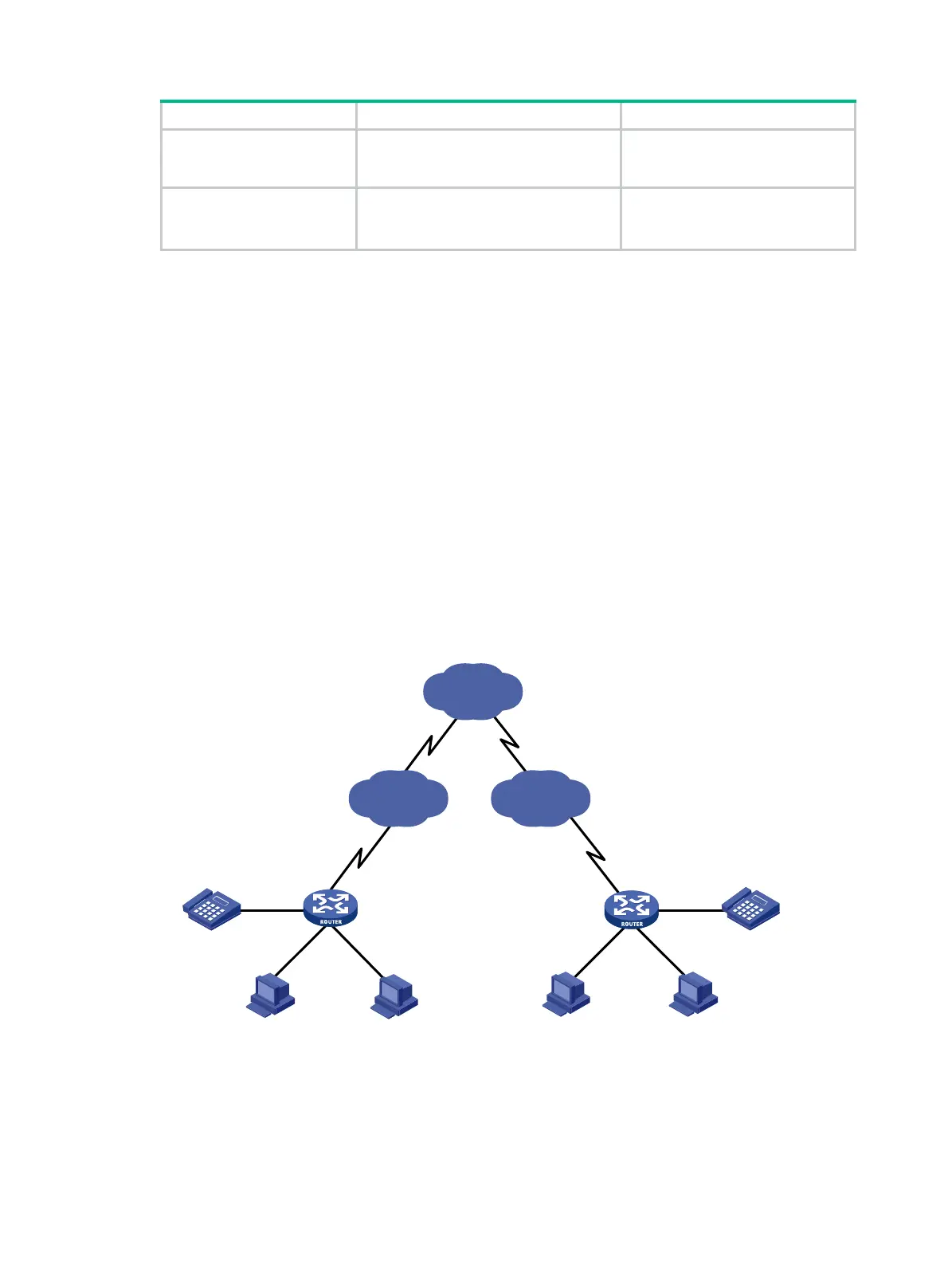

Figure 37 Network diagram
Configuration procedure
This example only covers MPoFR configuration. Routing and other features are beyond the scope of
this example.
Telephone A
Router A
Router B
FR
ATM
FR
Host A
1.1.1.1/ 24
Telephone B
Host D
10.1.4.1/24
Host C
1.1.4.1/24
Host B
10.1.1.1/24
S2/0
1.1.6.1/ 24
S2/0
1.1.6.2/ 24
Eth1/2
1.1.1.2/ 24
Eth1/1
10.1.1.2/24
Eth1/2
1.1.4.2/ 24
Eth1/1
10.1.4. 2/ 24
