365
[RouterD-Serial2/0] link-protocol x25 dce
[RouterD-Serial2/0] quit
# Assign an IP address for interface Ethernet 1/1.
[RouterD] interface ethernet 1/1
[RouterD-Ethernet1/1] ip address 10.1.1.2 255.255.255.0
[RouterD-Ethernet1/1] quit
# Configure an X.25 switching route to an XOT channel.
[RouterD] x25 switch svc 3333 xot 10.1.1.1
# Configure an X.25 switching route to Router E.
[RouterD] x25 switch svc 8888 interface serial 2/0
Verifying the configuration
# Display the X.25 SVC switching table on Router A.
[RouterA] display x25 switch-table svc static
Number Destination Substitute-src Substitute-dst CUD SwitchTo(type/name)
1 2222 3333 8888 H/hg1
2 1111 I/Serial2/3
3 1112 I/Serial2/4
4 1113 I/Serial2/0
Total of static svc is 4.
The item type of SwitchTo meaning:
I: interface H: hunt-group T: xot
The output shows that the packets destined for 8888 are load-balanced on Router B, Router C, and
Router E.
Implementing X.25 load sharing function for IP datagram
transmission
Network requirements
IP networks in different regions are connected through an X.25 packet switching network to carry
data over X.25 network.
The network providers provide an X.25 network load sharing function, and a user can perform the
relative settings in conjunction with it on a local terminal to implement the line load sharing when
different clients access the server.

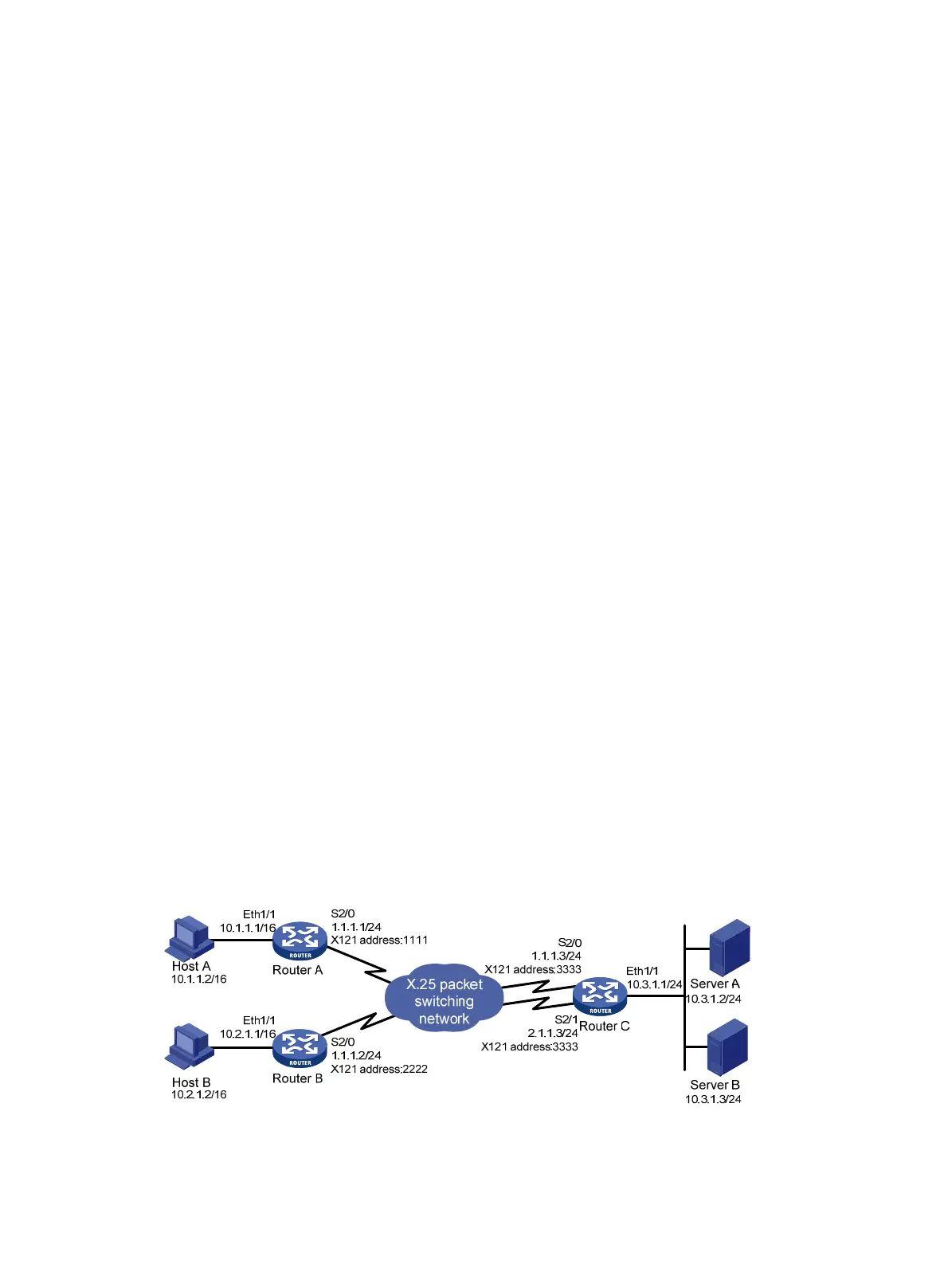

Figure 147 Network diagram
