Figure 112 Network diagram

Configuration procedure

1. Configure Router A:

<RouterA> system-view

[RouterA] bridge enable

[RouterA] bridge 1 enable

[RouterA] interface ethernet 1/1

[RouterA-Ethernet1/1] bridge-set 1

[RouterA-Ethernet1/1] quit

[RouterA] interface serial 2/0

[RouterA-Serial2/0] link-protocol x25 dce

[RouterA-Serial2/0] x25 x121-address 100

[RouterA-Serial2/0] x25 map bridge x121-address 200 broadcast

[RouterA-Serial2/0] bridge-set 1

2. Configure Router B:

<RouterB> system-view

[RouterB] bridge enable

[RouterB] bridge 1 enable

[RouterB] interface ethernet 1/1

[RouterB-Ethernet1/1] bridge-set 1

[RouterB-Ethernet1/1] quit

[RouterB] interface serial 2/0

[RouterB-Serial2/0] link-protocol x25

[RouterB-Serial2/0] x25 x121-address 200

[RouterB-Serial2/0] x25 map bridge x121-address 100 broadcast

[RouterB-Serial2/0] bridge-set 1

Configuration example for transparent bridging over HDLC

Network requirements

As shown in Figure 113 , two LAN segments, LAN 1 and LAN 2, are attached to Router A and Router

B, respectively, which are interconnected over an HDLC link. Configure the two routers to enable

transparent bridging over HDLC between the two LAN segments.

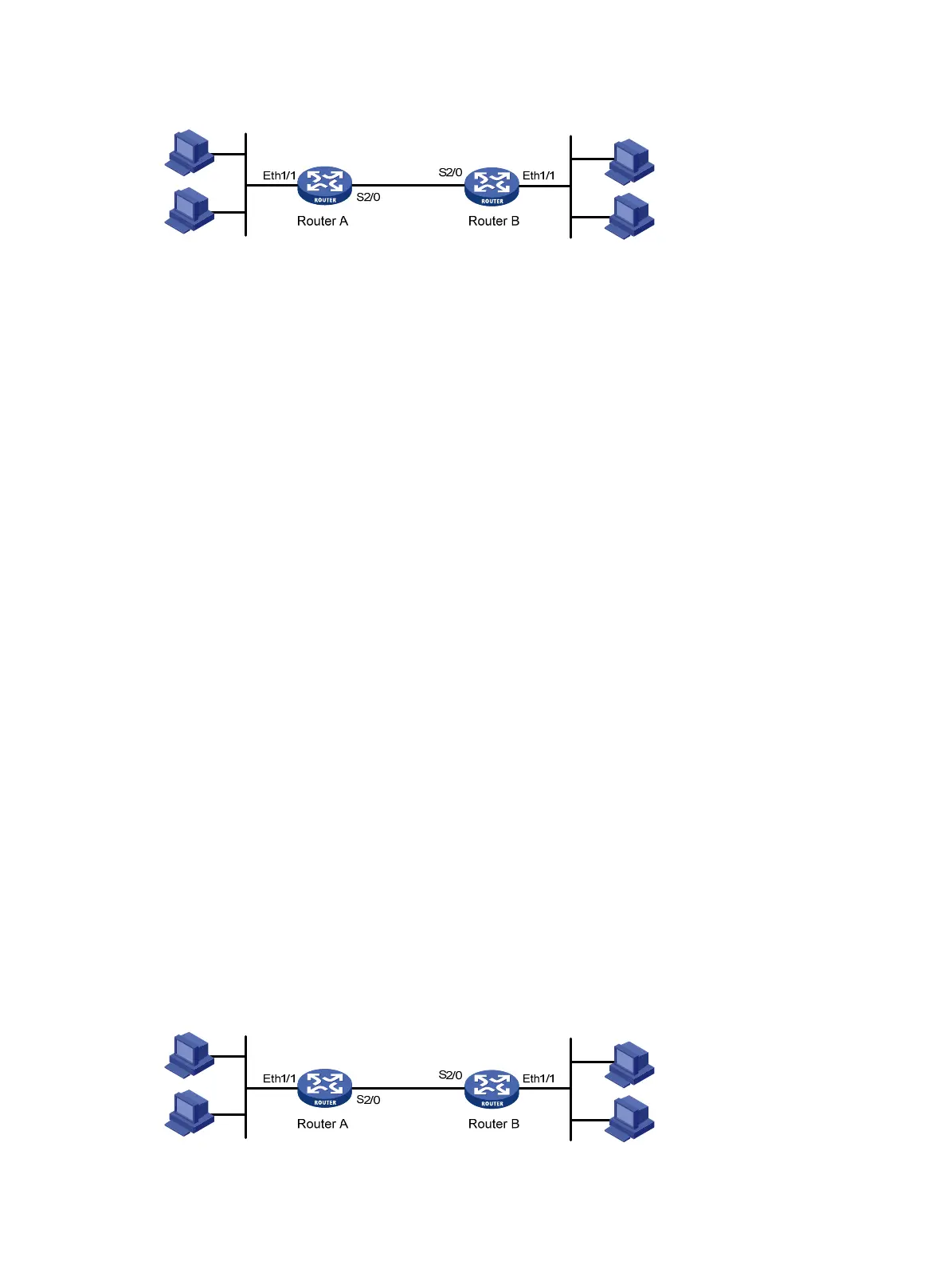

Figure 113 Network diagram

LAN 1

LAN 2

LAN 1

LAN 2
