296

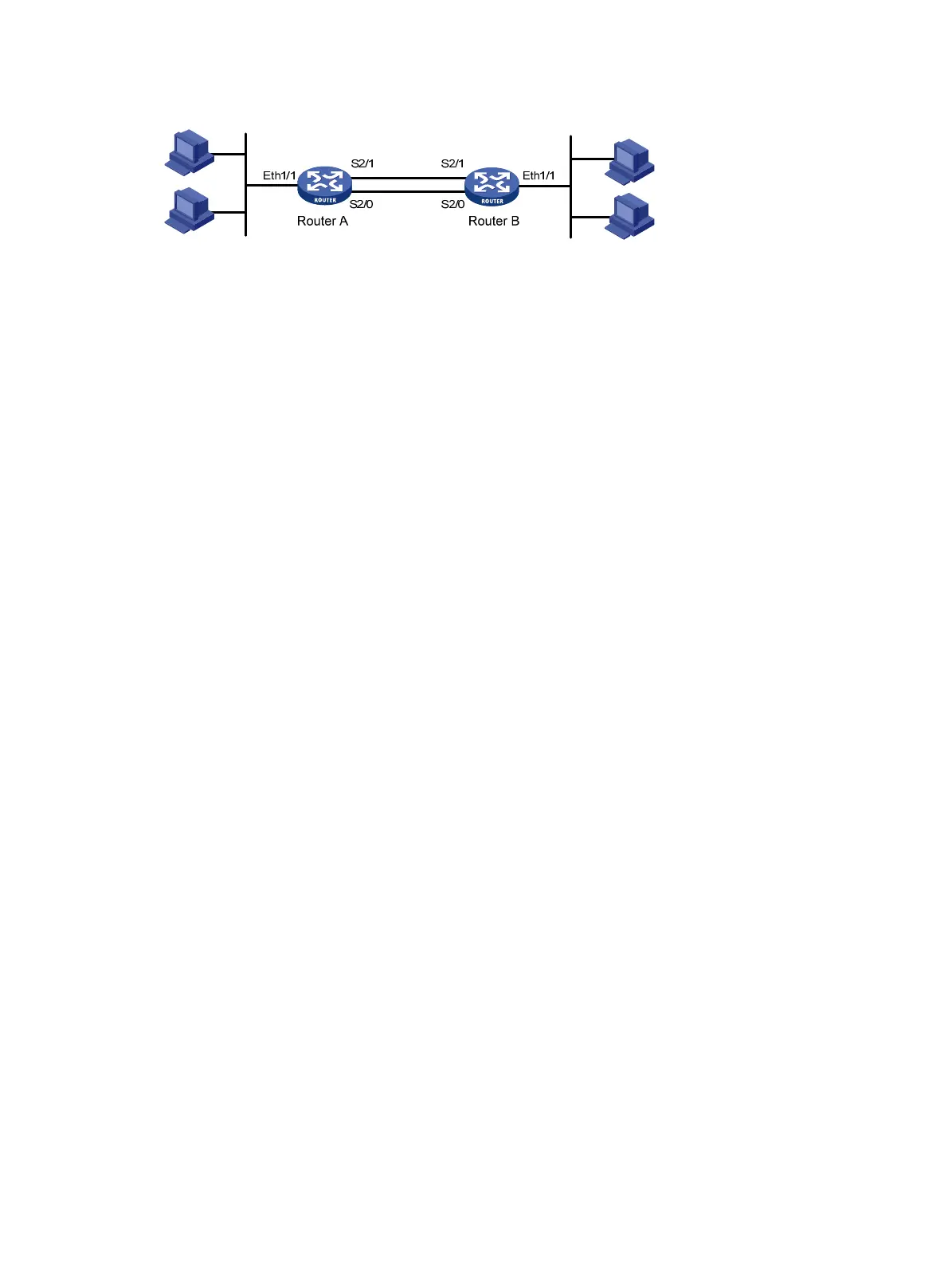

Figure 110 Network diagram
Configuration procedure
1. Configure Router A:
<RouterA> system-view
[RouterA] bridge enable
[RouterA] bridge 1 enable
[RouterA] interface virtual-template 1
[RouterA-Virtual-Template1] bridge-set 1
[RouterA-Virtual-Template1] quit
[RouterA] interface ethernet 1/1
[RouterA-Ethernet1/1] bridge-set 1
[RouterA-Ethernet1/1] quit
[RouterA] interface serial 2/1
[RouterA-Serial2/1] link-protocol ppp
[RouterA-Serial2/1] ppp mp virtual-template 1
[RouterA-Serial2/1] quit
[RouterA] interface serial 2/0
[RouterA-Serial2/0] link-protocol ppp
[RouterA-Serial2/0] ppp mp virtual-template 1
2. Configure Router B:
<RouterB> system-view
[RouterB] bridge enable
[RouterB] bridge 1 enable
[RouterB] interface virtual-template 1
[RouterB-Virtual-Template1] bridge-set 1
[RouterB-Virtual-Template1] quit
[RouterB] interface ethernet 1/1
[RouterB-Ethernet1/1] bridge-set 1
[RouterB-Ethernet1/1] quit
[RouterB] interface serial 2/1
[RouterB-Serial2/1] link-protocol ppp
[RouterB-Serial2/1] ppp mp virtual-template 1
[RouterB-Serial2/1] quit
[RouterB] interface serial 2/0
[RouterB-Serial2/0] link-protocol ppp
[RouterB-Serial2/0] ppp mp virtual-template 1
LAN 1
LAN 2
