HPE FlexNetwork MSR Series User Manual

207

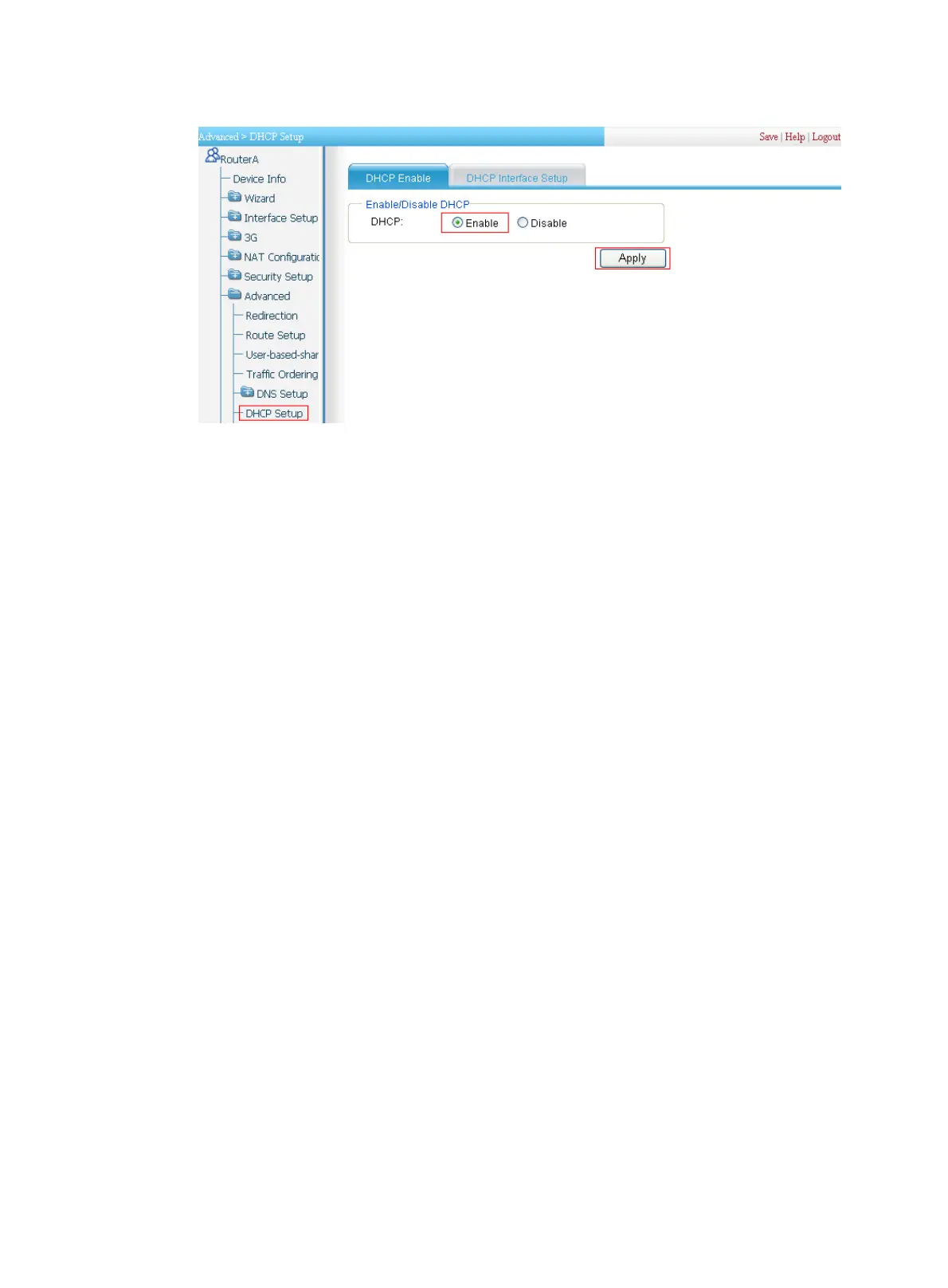

Figure 220 Enabling DHCP
3. Enable the DHCP server on interface Ethernet 0/1. (By default, the DHCP server is enabled on
interface Ethernet 0/1. Details not shown.)
4. Configure a DHCP static address pool, and bind IP address 10.1.1.5 to Router B:
a. Click the DHCP Interface Setup tab.
b. Select the Server option in the Type field and expand the Assignable IP Addresses node.
c. Enter pool-static in the Pool Name field and select the Static Binding option in the
Address Allocation Mode field.
d. Enter 10.1.1.5 in the IP Address field and select the Subnet Mask box, and then enter
255.255.255.128.
e. Enter 000f-e200-0002 in the MAC Address field and select the Gateway IP Address box,
and then enter 10.1.1.126.
f. Select the Primary DNS Server box, and then enter 10.1.1.2.
g. Click Apply.
