217

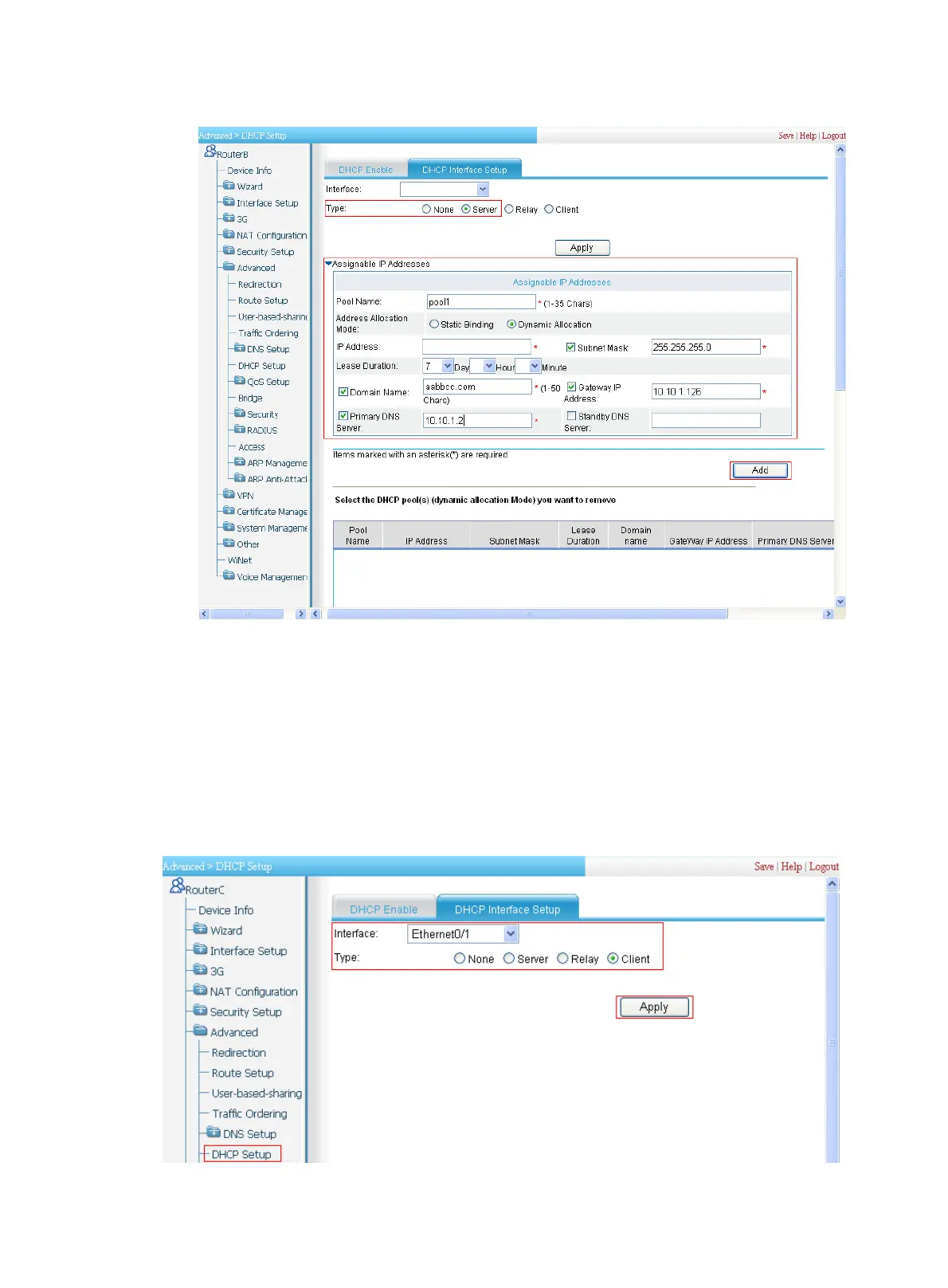

Figure 233 IP address excluded from dynamic allocation configuration
Configure the DHCP client (Router C)
To enable the DHCP client on interface Ethernet 0/1:
1. Select Advanced > DHCP Setup from the navigation tree.
2. Click the DHCP Interface Setup tab.
3. Select Ethernet0/1 in the Interface field.
4. Select the Client option in the Type field.
5. Click Apply.
Figure 234 Enabling the DHCP client on interface Ethernet 0/1
