HPE FlexNetwork MSR Series User Manual

307
e. Select 1 from the Instance list.
f. Set the VLAN ID to 10.
g. Click Apply to map VLAN 10 to MSTI 1, and add the VLAN-to-instance mapping entry to the
VLAN-to-instance mapping list.
h. Repeat the preceding steps to map VLAN 30 to MSTI 3 and VLAN 40 to MSTI 4, and then
add the VLAN-to-instance mapping entries to the VLAN-to-instance mapping list.
i. Click Activate to end the operation.

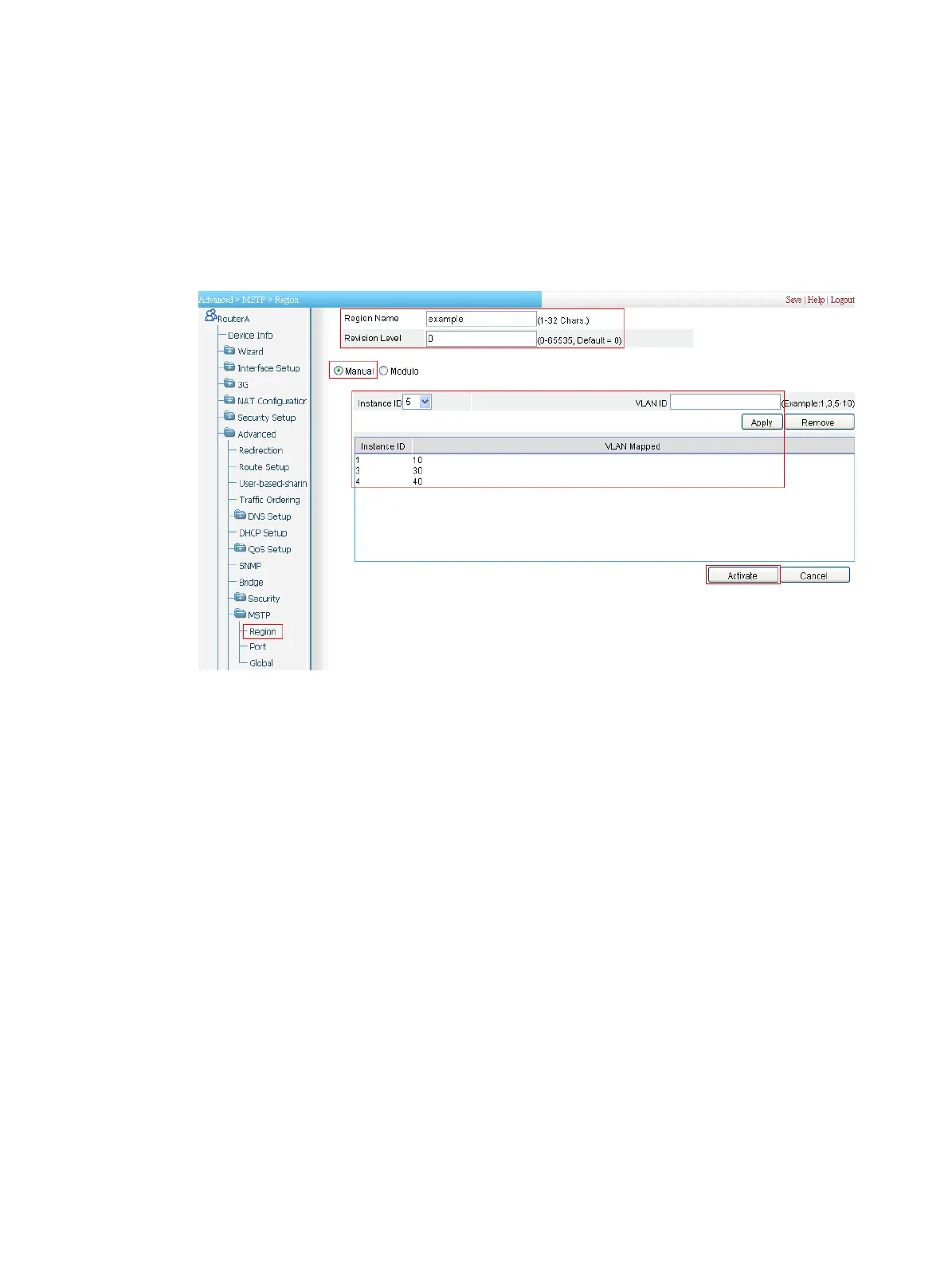

Figure 323 Configuring an MST region on Router A
# Enable MSTP globally and configure the current device as the root bridge of MSTI 1:
a. From the navigation tree, select Advanced > MSTP > Global.
b. On the page that appears (see Figure 324), sele
ct Enable from the Enable STP Globally
list.
c. Select MSTP from the Mode list.
d. Select the box in front of Instance.
e. Set the Instance ID field to 1.
f. Set the Root Type field to Primary.
g. Click Apply to submit the settings.
