310

3 Ethernet0/2 ALTE DISCARDING NONE

4 Ethernet0/3 ROOT FORWARDING NONE

Based on the above information, draw the MSTI corresponding to each VLAN, as shown in Figure

325.

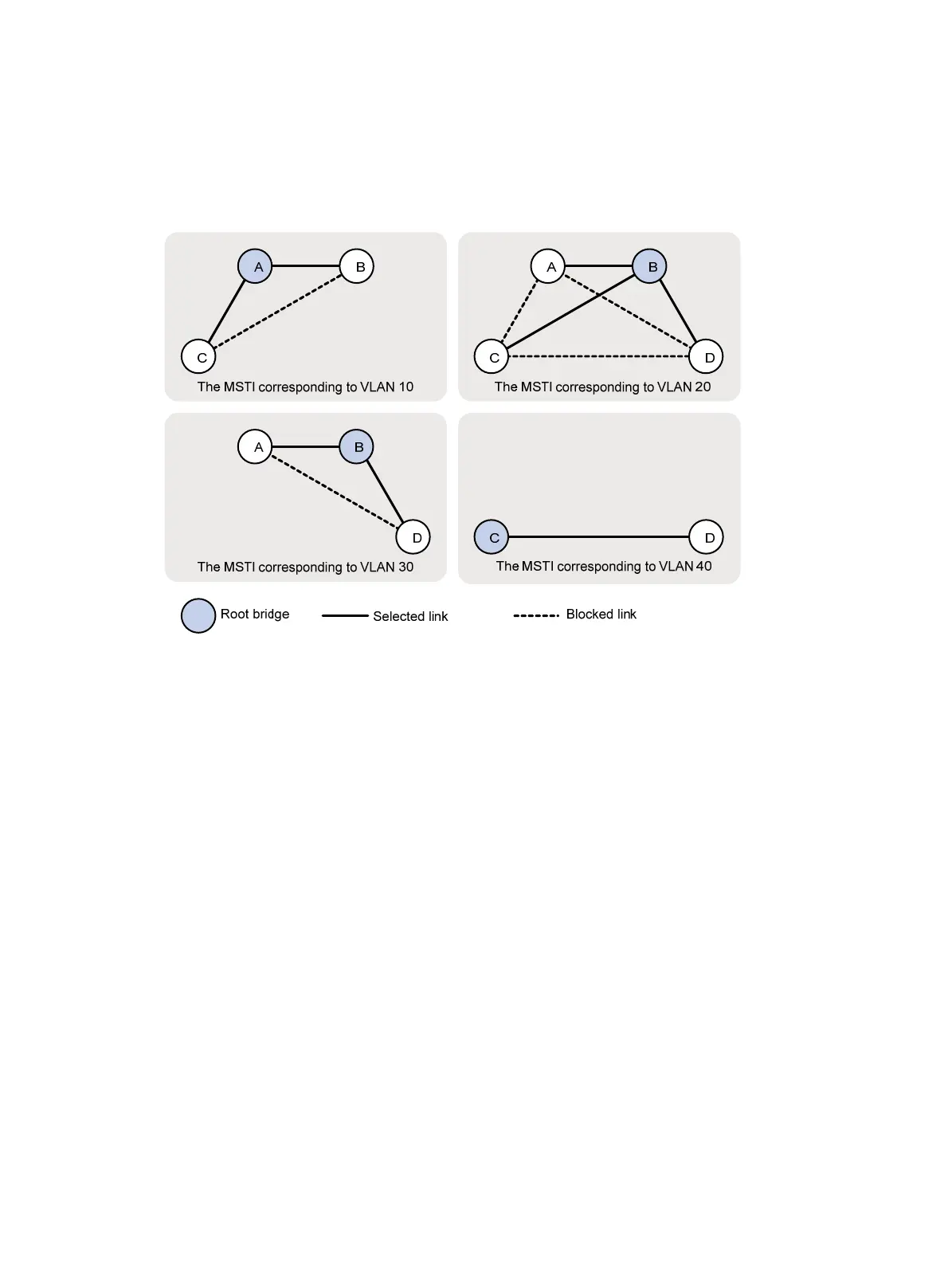

Figure 325 MSTIs corresponding to different VLANs
