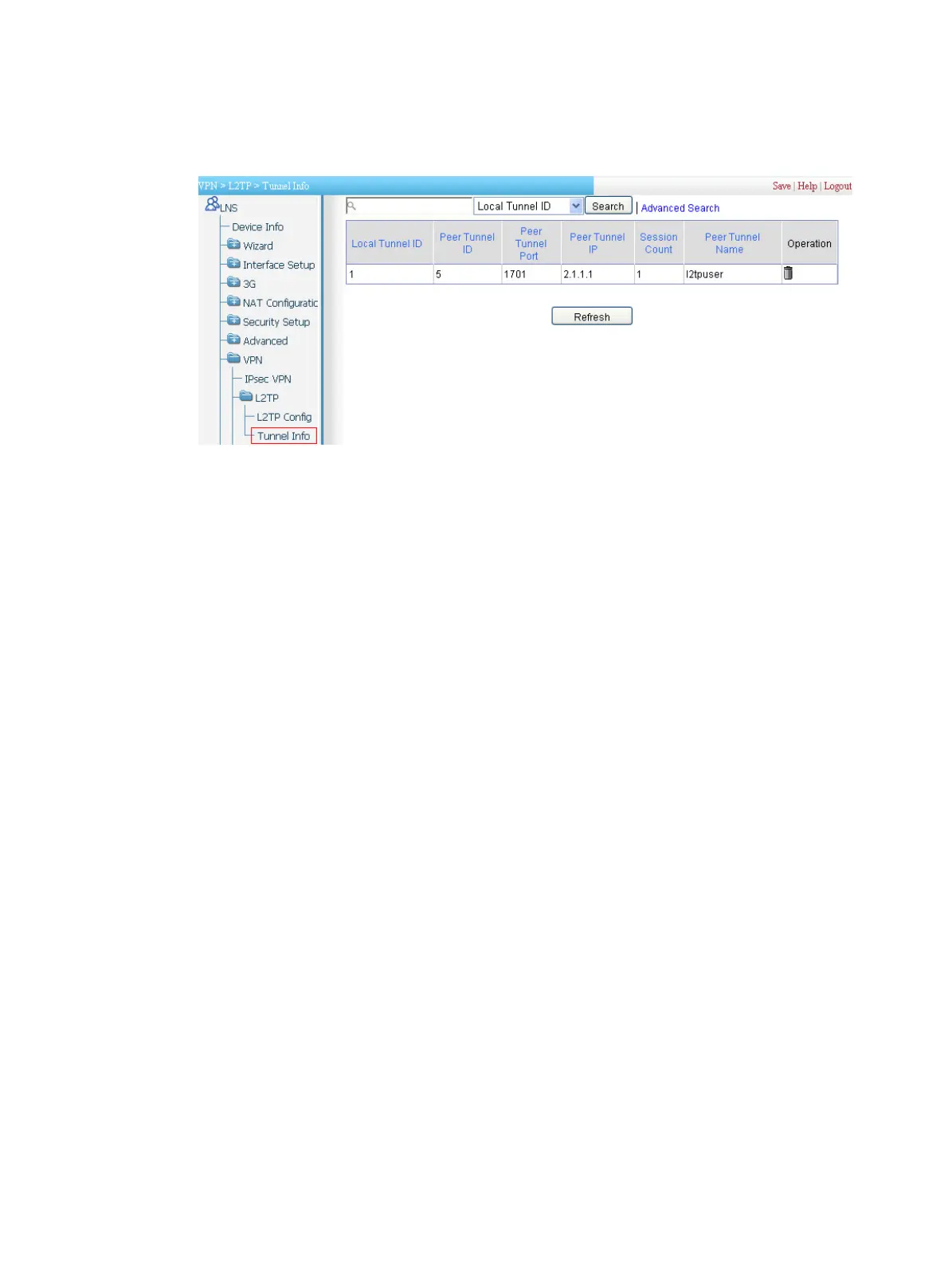

2. On the LNS, select VPN > L2TP > Tunnel Info from the navigation tree. Information of the

established L2TP tunnel should appears, as shown in Figure 377.

Figure 377

L2TP tunn

el information
