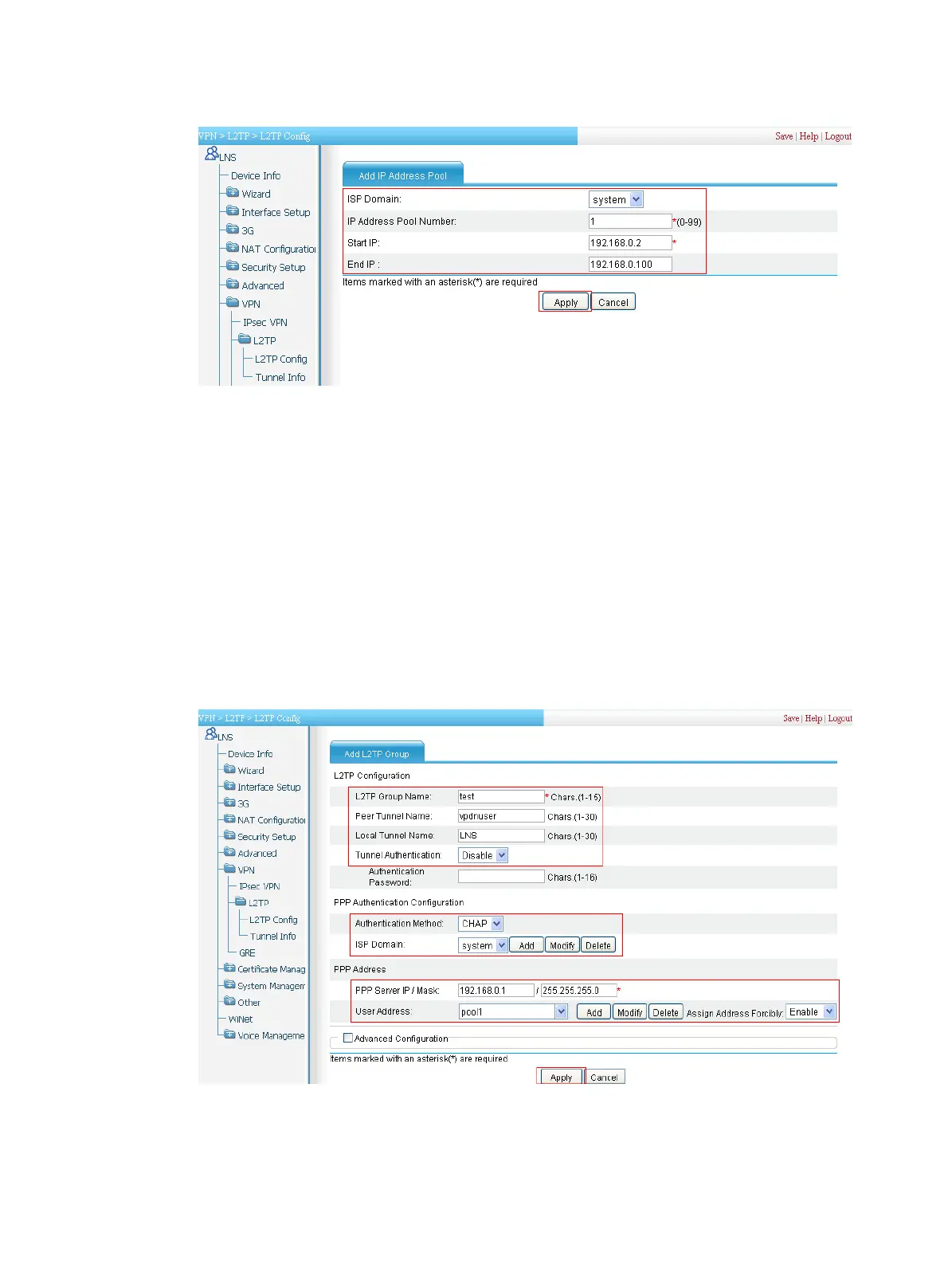

Figure 375 Adding an IP address pool
5. Add an L2TP group:
Continue to perform the following configurations on the L2TP group configuration page, as
shown in Figure 376.
a. Enter the L2T
P group n
ame test.
b. Enter the peer tunnel name vpdnuser.
c. Enter the local tunnel name LNS.
d. Select Disable from the Tunnel Authentication list.
e. Enter 192.168.0.1/255.255.255.0 as the PPP server IP/mask.
f. Select pool1 from the User Address list.
g. Select Enable from the Assign Address Forcibly list.
h. Click Apply.
Figure 376 L2TP group configurations
Verifying the configuration
1. On the user host, initiate an L2TP connection to the LNS. The host will obtain an IP address
(192.168.0.2) and will be able to ping the private address of the LNS (192.168.0.1).
