89

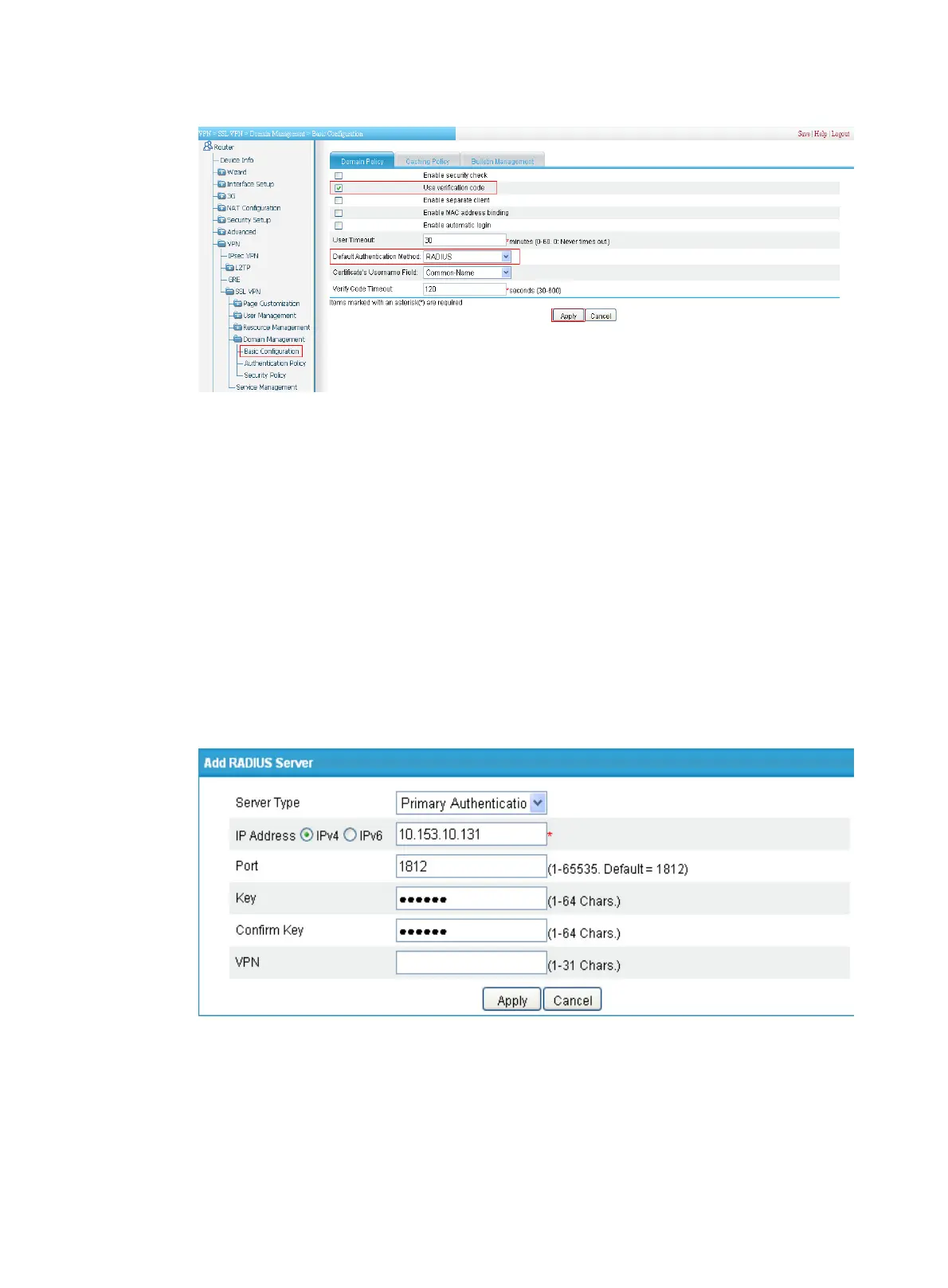

Figure 464 Configuring the domain policy
2. Configure a RADIUS scheme named system:
a. Select Advanced > RADIUS from the navigation tree.
b. Click Add to enter the RADIUS scheme configuration page.
c. Enter the scheme name system.
d. In the Common Configuration area, select Extended as the supported RADIUS server
type, and select Without domain name as the username format.
e. Click the Add button in the RADIUS Server Configuration area.
On the page that appears, as shown in Figure 465,
sel
ect Primary Authentication Server
as the server type, select IPv4 and enter IP address 10.153.10.131, enter port number 1812,
enter the key expert, enter expert again to confirm the key, and click Apply.
The RADIUS server is then added to the RADIUS server list of the RADIUS scheme. Now,
the RADIUS scheme configuration page is shown as Figure 466.
f. Click Ap
ply.
Figure 465
Adding a RADIUS server for the RADIUS scheme
