HPE FlexNetwork MSR Series User Manual

189

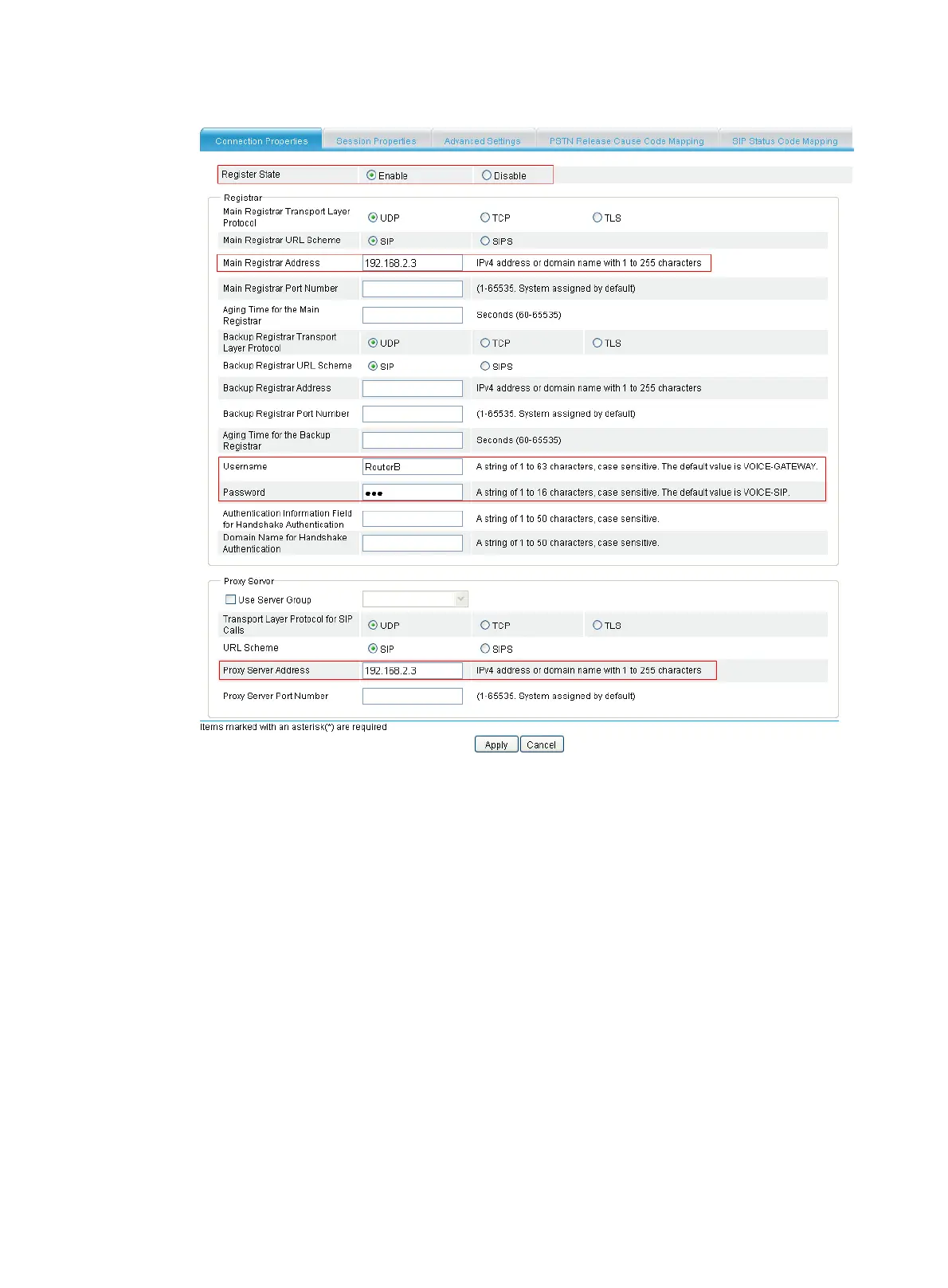

Figure 578 Configuring registration information
14. Select Enable for Register State.
15. Enter 192.168.2.3 for Main Registrar Address.
16. In the Proxy Server area, enter 192.168.2.3 for Server Address.
17. Enter Router A for Username and abc for Password.
18. Click Apply.
Verifying the configuration
• After the local numbers of the two sides are registered on the registrar successfully, telephone
1111 and telephone 2222 can call each other through the proxy server.
• Select Voice Management > States and Statistics > Call Statistics from the navigation tree
to access the Active Call Summary page, which displays the statistics of ongoing calls.
• Select Voice Management > States and Statistics > Connection Status from the navigation
tree, and then click the Register Status tab to view the SIP register status.
