3. Operation of CON Related Controllers
101

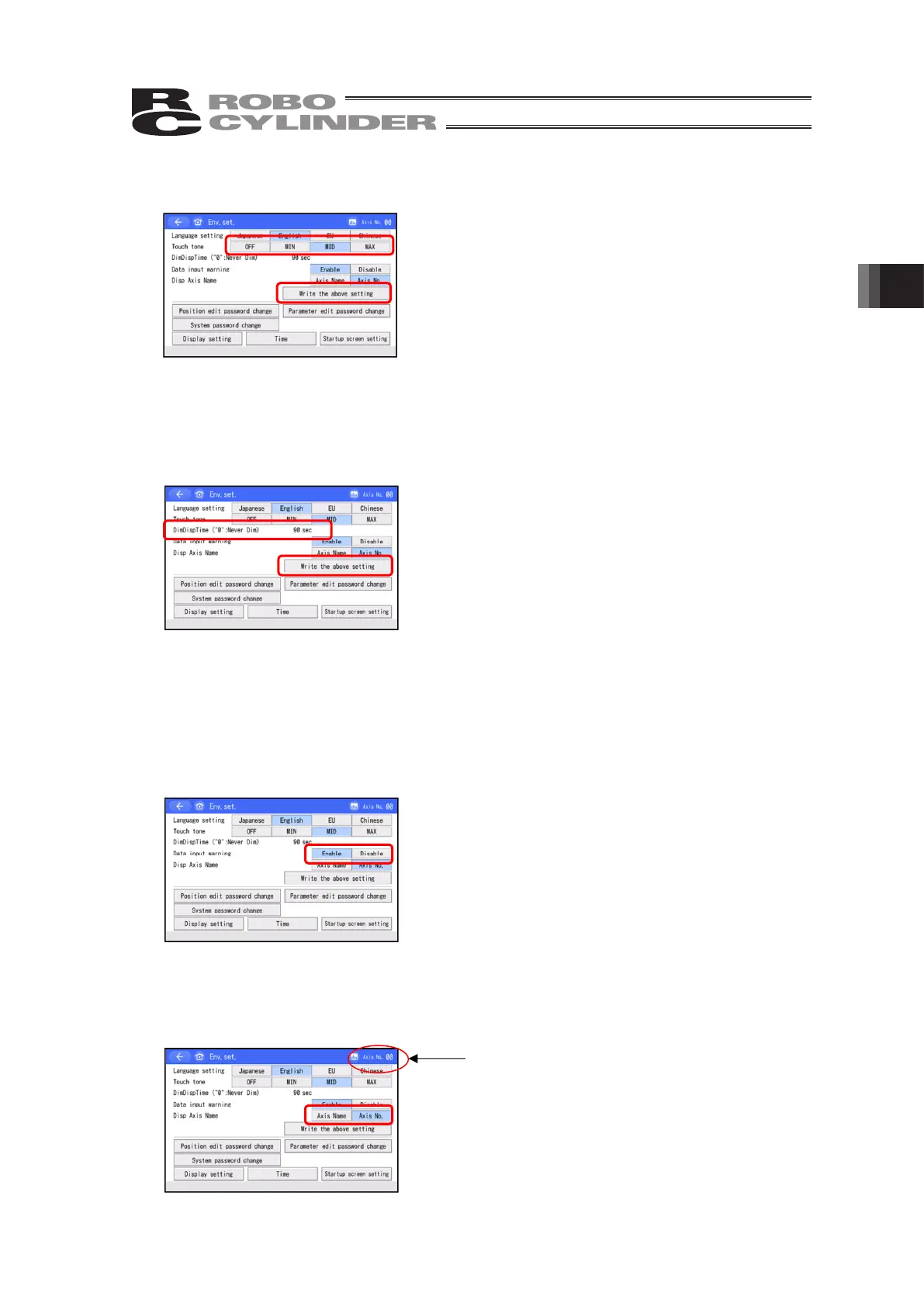

[Touch tone]
You can select whether or not to output a touch tone.
Touch [OFF]. A touch tone is not output.
Touch [MAX], [MID] or [MIN]. A touch tone is output.
Touch [Write the above setting].
(Note) If writing is not conducted, the setting will go back
to those before making a change when moving to
another screen.
[DimDispTime]
Set the dim display time when not being operated.
Zero seconds mean the display is on all the time.
Touching [DimDispTime (“0”: Never Dim) 0 sec] displays
the numerical keypad.
Enter a desired time and touch [ENT].
You can set a value between 0 to 255 seconds.
Touch [Write the above setting].
(Note) If writing is not conducted, the setting will go back
to those before making a change when moving to
another screen.
[Data input warning]
The warning can be output when a value less than the minimum speed and a value exceeding
the rated acceleration/deceleration speed are entered in the position data. Note that the value is
entered even if the warning occurs. Always use within the specification of the actuator.
Touch [Enable] to give the warning.
Touch [Disable] not to give the warning.
Select either Enable or Disable,
and then touch [Write the above setting].
(Note) If writing is not conducted, the setting will go back
to those before making a change when moving to
another screen.
[Axis Name Display]
Make a selection whether to show the name or number for axis display.
Touch [Axis Name] and the name will be shown.
Touch [Axis No.] and the number will be shown.
The axis name can be set in Software version information
screen.
[Refer to 3.17.1 Axis Name Edit]
xis Name Displa
